Susumu RGT1005 Series

  • Compliant
  • Susumu

Product Features

  • Surface-mount metal thin film chip resistor
  • Wide operating temperature range of −55°C to +175°C
  • Maximum voltage of 50V
  • Thin film structure enabling low noise and anti-sulfur
  • Long term stability with inorganic passivations
  • Resistance value series of either E24 or E96
  • AEC-Q200 compliant
  • Automotive

Applications

Description

The RGT1005 of thin film chip resistor series from Susumu offer a wider temperature range of −55°C to +175°C with an enhanced level of precision and reliability in a 0402 chip size. The RGT1005 series has a double layer of passivation to eliminate water ingress to the thin film element, with resistance values that range from 10Ω to 150kΩ with tolerances of ±0.1% (B) and ±0.5% (D) and it is AEC-Q200 compliant.

  • Surface-mount thin film chip resistor
  • Resistance range between 10Ω and 150kΩ available
  • Resistance value series E-24 and E-96
  • Power rating of 0.03125W
  • Tolerance values available ±0.1% (B) and ±0.5% (D) (depending on the resistance value required)
  • TCR values available of ±10 ppm/°C (N) and ±25 ppm/°C (P) (depending on the resistance value required)
  • Maximum voltage of 50V
  • Wide operating temperature range of −55°C to +175°C
  • Long term stability with inorganic passivation
  • Thin film structure enabling low noise and anti-sulfur
  • Chip size of 0402
  • AEC-Q200 Compliant

Susumu RGT1005 series metal thin film chip resistors are ideal for the following applications:

  • Automotive electronics
  • Industrial measurement instrumentation
  • Industrial machines
  • Wide temperature operation machines

The below table gives the full specifications of the Susumu RGT series including the RGT1005:

Susumu RGT1005 Specifications


Specifications

Weight 0.00000 kg

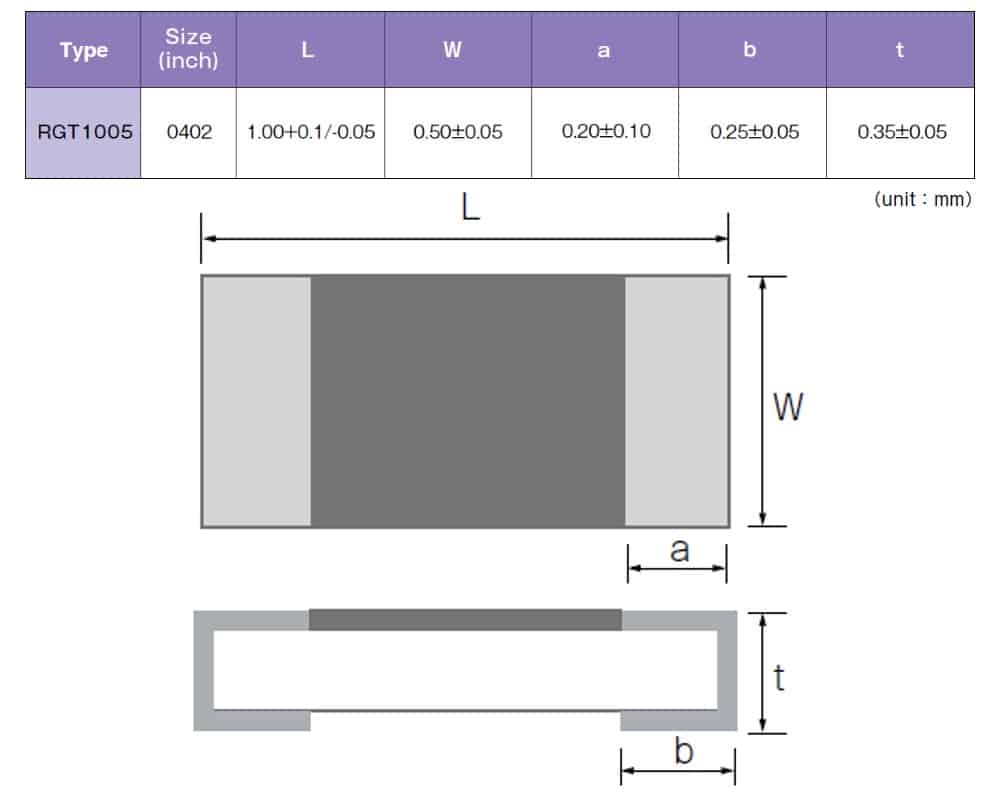

Dimensions 1.00 × 0.50 × 0.35 mm
Series / Model

Minimum Resistance

Maximum Resistance

Temperature Coefficient

,

Power Rating

Additional Features

Surface-mount metal thin film chip resistorWide operating temperature range of −55°C to +175°C Maximum voltage of 50VThin film structure enabling low noise and anti-sulfurLong term stability with

Tolerance

,

Susumu RGT1005 Series Resources

Supporting Manufacturer Information

Susumu RGT Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Susumu RGT wide temperature range precision thin film chip resistor series datasheet
Susumu product selection guide and handling care information
Susumu complete catalogue







VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.

VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.
