Susumu RGT2012 Series

Susumu RGT1005 Series
Susumu RGT1005 Series
Susumu RGT2012 Series
  • Susumu

Product Features

  • Surface-mount metal thin film chip resistor
  • Wide operating temperature range of −55°C to +175°C
  • Maximum voltage of 150V
  • Thin film structure enabling low noise and anti-sulfur
  • long term stability with inorganic passivations
  • Resistance value series of either E24 or E96
  • AEC-Q200 compliant
  • Automotive

Applications

  • Compliant

Description

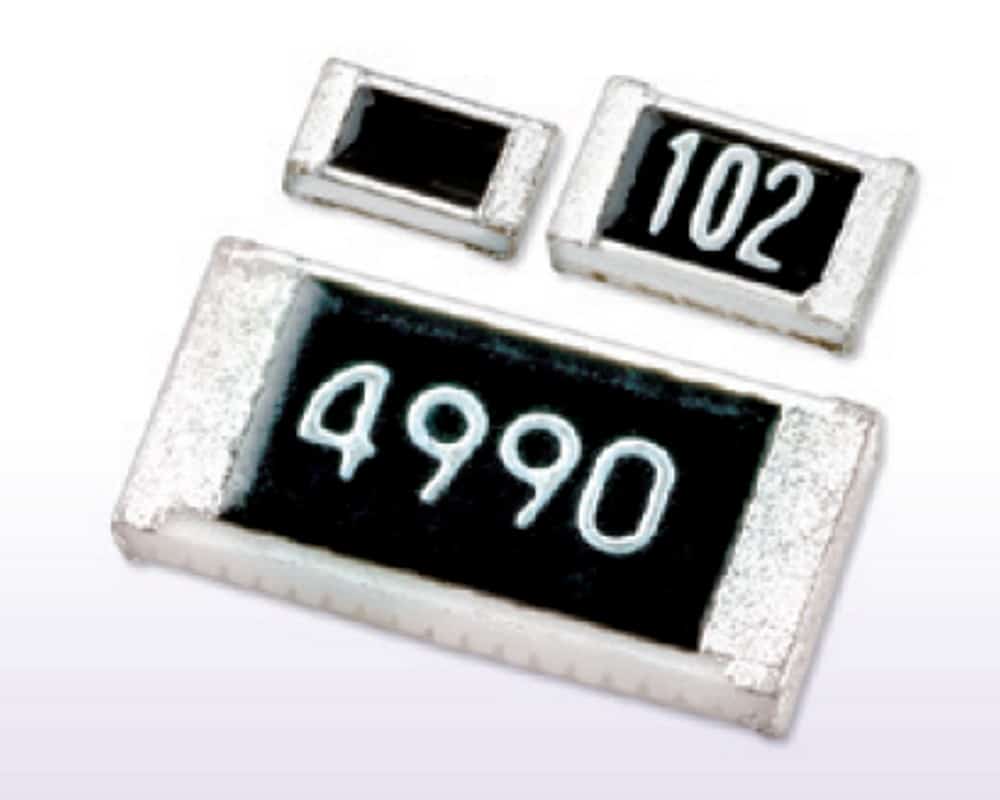

The RGT2012 series of thin film chip resistors from Susumu offer a wider temperature range of −55°C to +175°C with an enhanced level of precision and reliability in a 0805 chip size. The RGT2012 series has a double layer of passivation to eliminate water ingress to the thin film element and with resistance values that range from 10Ω to 2.7MΩ with tolerances of ±0.1% (B) and ±0.5% (D) and it is AEC-Q200 compliant.

  • Surface-mount metal thin film chip resistor
  • Resistance range between 10Ω and 2.7MΩ available
  • Resistance value series either E-24 or E-96
  • Power rating of 0.1W
  • Tolerance values available ±0.1% (B) and ±0.5% (D) (depending on the resistance value required)
  • TCR values available of ±10 ppm/°C (N) and ±25 ppm/°C (P) (depending on the resistance value required)
  • Maximum voltage of 150V
  • Wide operating temperature range of −55°C to +175°C
  • Long term stability with inorganic passivation
  • Thin film structure enabling low noise and anti-sulfur
  • Chip size of 0805
  • AEC-Q200 compliant



Susumu RGT2012 series thin film chip resistors are ideal for the following applications:

  • Automotive electronics
  • Industrial measurement instrumentation
  • Industrial machines
  • Wide temperature operation machines



The below table gives the full specifications of the Susumu RGT series including the RGT2012:

Susumu RGT2012 Specifications



Specifications

Weight 0.00000 kg

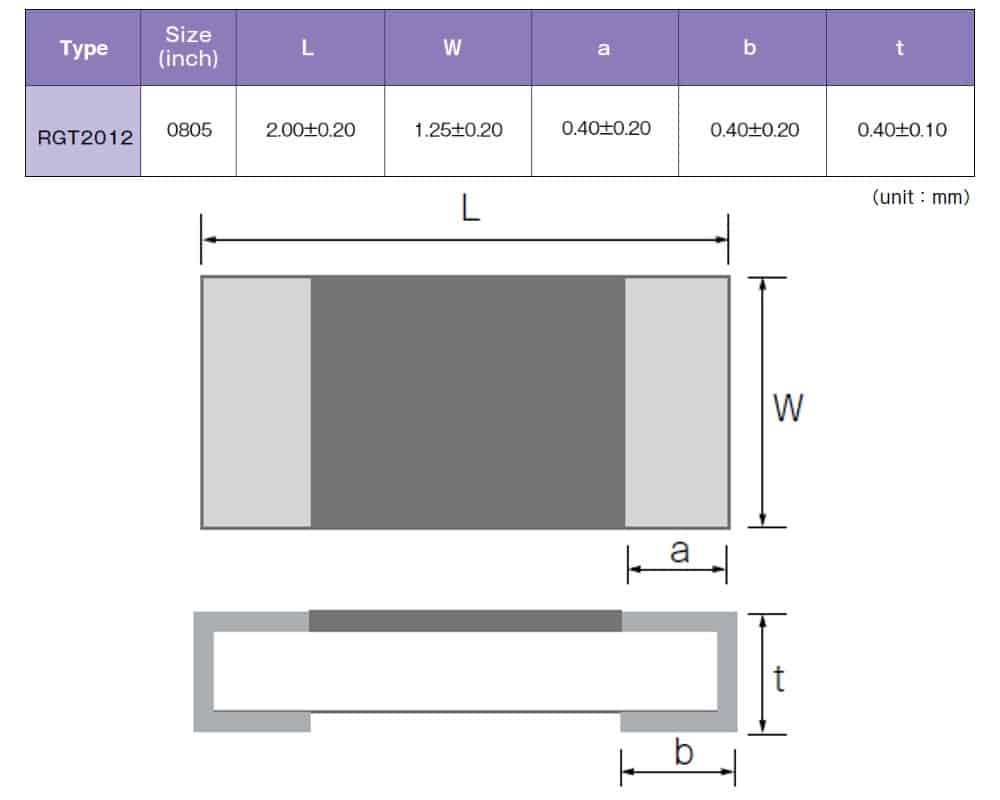

Dimensions 2.00 × 1.25 × 0.40 mm
Series / Model

Minimum Resistance

Maximum Resistance

Temperature Coefficient

,

Power Rating

Tolerance

,
