  • RARA

Product Features

  • Metal clad wire wound economy resistor
  • Flying leads
  • Inductive or non-inductive design
  • Insulation resistance of 20MΩ minimum
  • Temperature range of -55°C up to +200°C
  • Short time overload of 5 x power rating is 5 seconds

Applications

  • Motion Control
  • Renewables
  • Compliant

Description

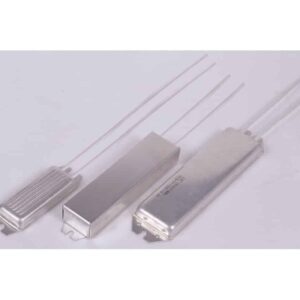

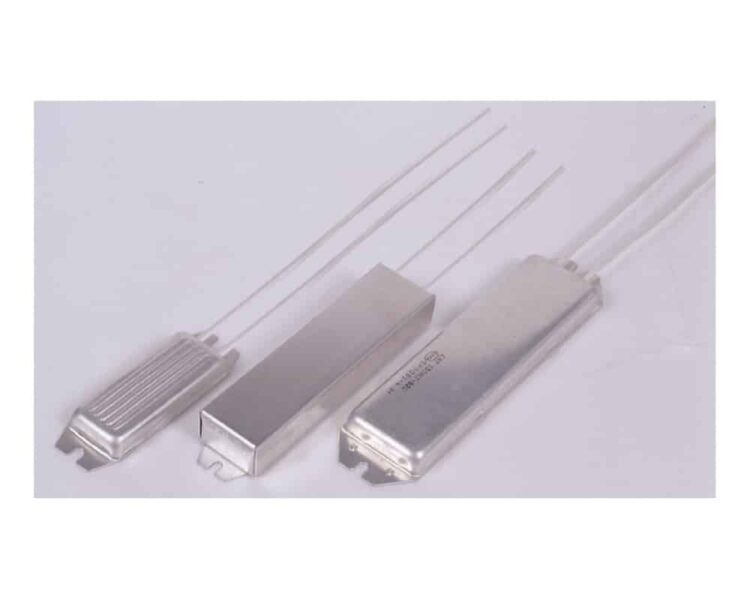

The IRB60 metal clad wire wound economy resistor series from RARA offers a power rating of up to 60W with available resistance values between 0.1Ω and 270Ω (inductive design) or between 0.1Ω and 56Ω (non-inductive design). These high power resistors are available with tolerances of ±2.0%, ±3.0%, ±5.0% and ±10.0% other options available including inductive or non-inductive resistive windings. The IRB60 series from RARA come in a durable metal case with flying leads and offers a temperature range from -55°C up to +200°C

  • Metal clad wire wound economy resistor
  • Inductive resistance range available between 0.1Ω and 270Ω
  • Non-inductive resistance range available between 0.1Ω and 56Ω
  • Flying lead terminals
  • TCR of +260 ppm/°C maximum
  • Tolerance values available of ±2.0%, ±3.0%, ±5.0% and ±10.0%
  • Power rating of 60W
  • Insulation resistance of 20MΩ minimum
  • Temperature range between -55°C and +200°C
  • Short time overload of 5 x power rating for 5 seconds

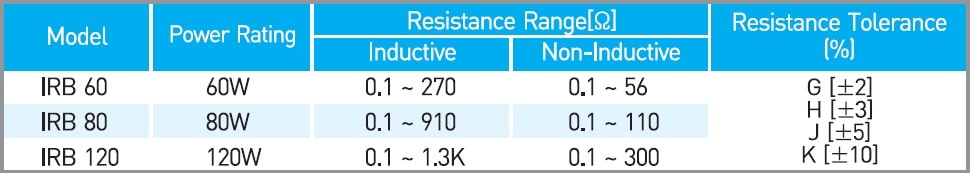

The below table gives the specifications available for the IRB series including the IRB60 resistors:

RARA IRB60 Specifications


Specifications

Weight 0.00000 kg
Dimensions 100.00 × 32.20 × 12.30 mm
Minimum Resistance

Series / Model

Maximum Resistance

Tolerance

, , ,

Power Rating

Resistance Value

,

Temperature Coefficient

Inductive or Non Inductive

,

RARA IRB Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
RARA IRB series metal clad wire wound economy resistor datasheet
