RARA ULH100 Series

  • Compliant
  • RARA

Product Features

  • Metal clad wire wound resistor
  • Option of flying leads (tab terminals are standard)
  • Inductive or non-inductive design
  • Insulation resistance of 20MΩ minimum
  • Temperature range of -55°C up to +200°C
  • Extruded aluminium horizontal housing
  • UL approved
  • Short time overload of 10 x power rating is 5 seconds
  • UL

Applications

  • Motion Control
  • Renewables

Description

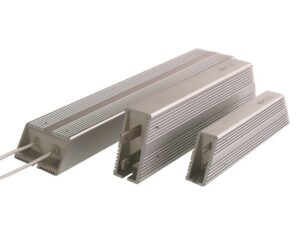

The ULH100 metal clad wire wound resistor series from RARA offers a power rating of up to 100W on a heat sink (80W in free air) with available resistance values between 0.1Ω and 1.1kΩ (inductive design) or between 0.1Ω and 240Ω (non-inductive design). These high power resistors are available being UL approved and with tolerances of ±0.5%, ±1.0%, ±2.0%, ±5.0% and ±10.0% as standard with other options available including flying leads or tab terminals, as well as inductive or non-inductive resistive windings. The ULH100 series from RARA has an extruded aluminium horizontal housing providing strong and rugged protection all with a temperature range from -55°C up to +200°C

  • Metal clad wire wound resistor
  • Inductive resistance range available between 0.1Ω and 1.1kΩ (flying leads) or 0.1Ω and 225Ω (tab terminals)
  • Non-inductive resistance range available between 0.1Ω and 240Ω (flying leads) or 0.1Ω and 225Ω (tab terminals)
  • Option of flying leads (tab terminals are standard)
  • TCR of +260 ppm/°C maximum
  • Tolerance values available of ±0.5%, ±1.0%, ±2.0%, ±5.0% and ±10.0%
  • Power rating of 100W on a heat sink (80W in free air)
  • Insulation resistance of 20MΩ minimum
  • Temperature range between -55°C and +200°C
  • UL approved
  • Short time overload of 10 x power rating for 5 seconds



Typical applications for the ULH series include:

  • Motor drives
  • braking and snubbing applications
  • Charging for electric vehicles
  • Power sources for industrial equipment



The below table gives the specifications available for the ULH series including the ULH100 resistors:

RARA ULH100 Specifications
The dielectric withstanding voltage options available are AC1500V, 3500V, 4500V and 5400V for 1 minute and also available in extended ohmic ranges from 0.001Ω up to 750kΩ please contact us for further details.



Specifications

Weight 216.00000 kg
Dimensions 165.00 × 41.00 × 22.00 mm
Minimum Resistance

Maximum Resistance

Series / Model

Tolerance

, , , ,

Power Rating

,

Additional Features

Metal clad wire wound resistorOption of flying leads (tab terminals are standard)Inductive or non-inductive designInsulation resistance of 20MΩ minimumTemperature range of -55°C up to +200°C Extru

Termination / Connection Type

,

Resistance Value

, ,

Temperature Coefficient

Inductive or Non Inductive

,

RARA ULH100 Series Resources

Product Datasheet

RARA IRH, ULH, IRV and ULV 60 to 500 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
RARA IRH, ULH, IRV and ULV series metal clad wire wound resistor datasheet
