Metal Clad Wire Wound Resistors

RARA ULV800

Metal clad wire wound resistor
Option of flying leads, parallel or series connections
Inductive or non-inductive design
Insulation resistance of 20MΩ minimum
Temperature range of -55°C up to +200°C
UL approved
Cement moulding with an extruded aluminium housing
Short time overload of 10 x power rating is 5 seconds

Datasheet

Resistance Value

Tolerance

Inductive or Non Inductive

Termination / Connection

Clear

Custom resistance value (Ω) *
Custom AT Range (AT) *
Custom Capacity (lbs) *
Custom Pressure (Bar/PSI) *
Custom Resistance Value Element 1 (Ω) *
Custom Resistance Value Element 2 (Ω) *
Custom lead length (mm) *
Custom lead length (inches) *

Quantity

The ULV800 metal clad wire wound resistor series from RARA offers a power rating of up to 800W on a heat sink (360W in free air) with available resistance values between 0.1Ω and 112Ω (inductive design) or between 0.1Ω and 28.8Ω (non-inductive design). These high power resistors are UL approved and are available with tolerances of ±1.0%, ±2.0%, ±5.0% and ±10.0% as standard with other options available including flying leads or tab terminals, as well as inductive or non-inductive resistive windings. The ULV800 series from RARA have a cement moulding with an extruded aluminium housing providing strong and rugged protection all with a temperature range from -55°C up to +200°C

Metal clad wire wound resistor
Cement moulding with an extruded aluminium housing
Option of flying leads, parallel or series terminal connections
Inductive resistance ranges available between 0.14Ω and 112Ω (flying leads), 0.1Ω and 11Ω (parallel tab terminal connection) or 11.1Ω and 112Ω (serial tab terminal connection)
Non-inductive resistance ranges available between 0.14Ω and 28.8Ω (flying leads), 0.1Ω and 7.2Ω (parallel terminal connection) or 7.3Ω and 28.8Ω (serial terminal connection)
TCR of +260 ppm/°C maximum
Tolerance values available of ±1.0%, ±2.0%, ±5.0% and ±10.0%
Power rating of 800W on a heat sink (360W in free air)
Insulation resistance of 20MΩ minimum
UL approved
Temperature range between -55°C and +200°C
Short time overload of 10 x power rating for 5 seconds

Typical applications for the ULV series include:

Motor drives
Braking and snubbing applications
Power sources for industrial equipment

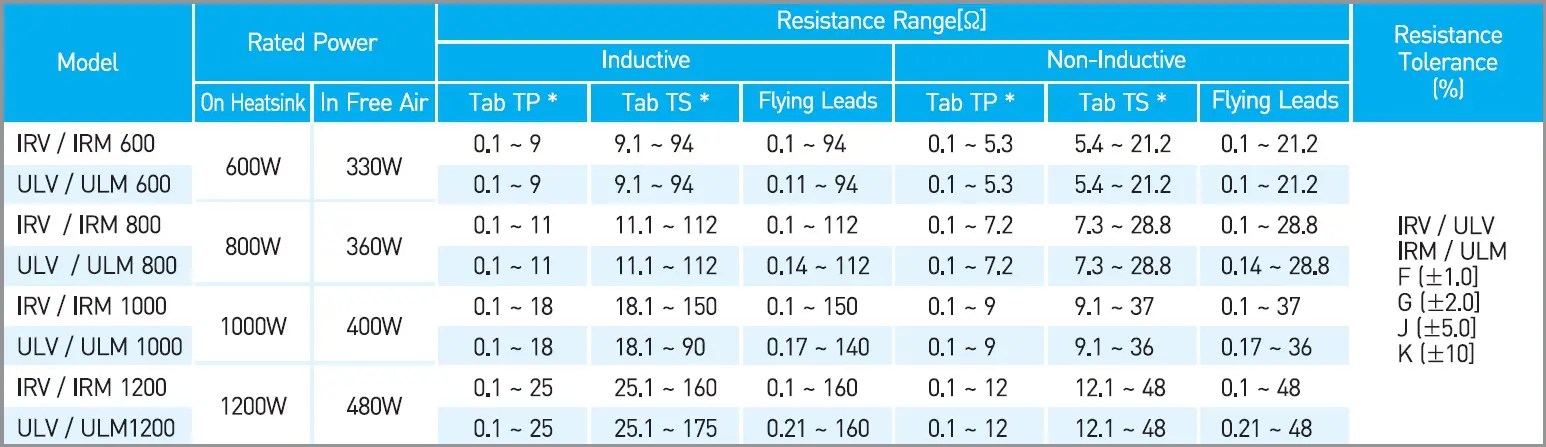

The below table gives the specifications available for the ULV series including the ULV800 resistors:

* Note: Tab TP = terminal parallel connection, Tab TS = terminal serial connection

Specifications

Weight	1.50000 kg
Dimensions	59.00 x 61.00 x 285.00mm
Product Type	Metal Clad, Wirewound, Resistor
Series / Model	ULV
Power Rating	360W, 800W
Minimum Resistance	0.1Ω
Maximum Resistance	112Ω
Tolerance	±1%, ±2%, ±5%, ±10%
Temperature Coefficient	±260 ppm/°C
Insulation Resistance	20MΩ minimum
Inductive or Non Inductive	Inductive, Non Inductive
Termination / Connection	Flying Leads, Parallel Tab Terminal Connection, Serial Tab Terminal Connection
Temperature Range (°C)	-55 to +200°C (Cement)

Due to the technical complexity nature of these components, complete specifications, performance data, dimensional information and configuration options are provided within the product datasheet.

Series/Model (ULVXXX)

ULV800

Connection * (X)

P Parallel
S Series

Inductive/Non-Inductive (X)

(Blank) Inductive
N Non-Inductive

Resistance Value (XXXXΩ)

Resistance value expressed in ohms, for example 220.5Ω or 2Ω.

Tolerance (X)

F: ±1%
G: ±2%
J: ±5%
K: ±10%

Termination (FLXXX)

FL XXX Flying Lead **
(Blank) Tab Terminal

_{* Defined by the resistance value chosen, see datasheet for full details}
_{** Please include requested lead length with request, for example, FL300 for 300mm flying leads}
