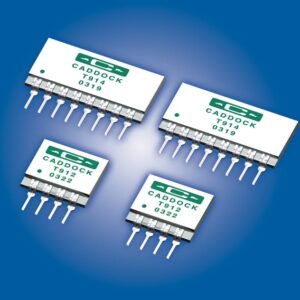

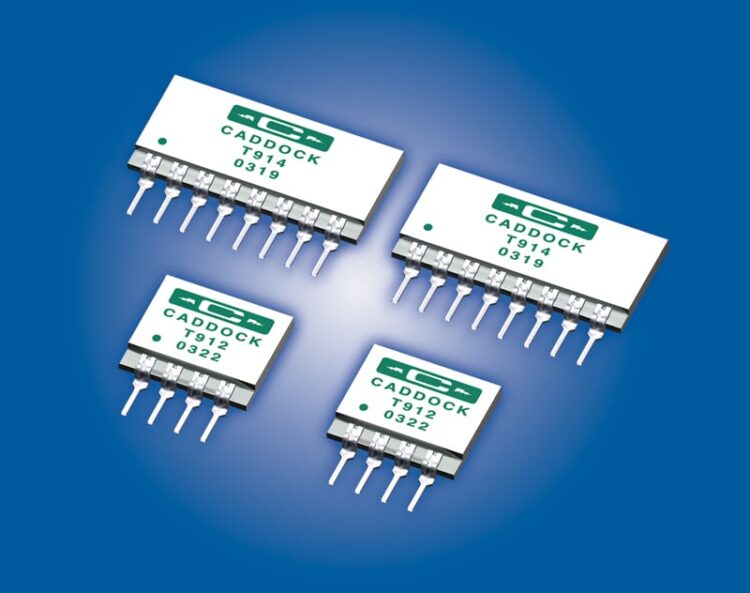

Caddock T912 Series

  • Exempt
  • Caddock

Product Features

  • Through-hole precision resistor network
  • 2 resistor elements, with either a ratio of 10:1, 9:1 or 1:1
  • Utilises Caddock’s Tetrinox® resistance technology
  • Voltage rating of 30VDC or RMS AC applied to R1 or R2
  • Custom options and configurations are available upon request

Applications

Description

The T912 series from Caddock are resistor pairs and quads with ratio characteristics for precision analog circuits, with a resistance range from 1kΩ to 1MΩ. These resistors have an absolute tolerance of ±0.1% and a ratio tolerance from ±0.01% to ±0.1%. The absolute TCR (from -40°C to +85°C) values are: ±15 ppm/°C, ±25 ppm/°C, ±50 ppm/°C, and the ratio TCR (from -40°C to +85°C) values are: ±10 ppm/°C, ±25 ppm/°C and ±50 ppm/°C. The Caddock T912 series are constructed using the Tetrinox® resistance technology, in addition to the 14 standard equal value models of the Type T912 and T914, they can also be ordered with resistance ratios of 10:1, 9:1 or 1:1.

  • Custom through-hole precision resistor networks
  • 2 resistor elements, with either a ratio of 10:1, 9:1 or 1:1
  • Resistance values available between 1kΩ and 1MΩ
  • Absolute TCR (from -40°C to +85°C): ±25 ppm/°C
  • Ratio TCR (from -40°C to +85°C): ±2 ppm/°C, ±5 ppm/°C and ±10 ppm/°C
  • Absolute tolerance of: ±0.1%
  • Ratio tolerance of: ±0.01% to ±0.1%
  • Voltage rating of 30V DC or RMS AC applied to R1 or R2
  • Custom options and configurations are available upon request
  • Utilises Caddock’s Tetrinox® resistance technology



The Caddock T912 precision resistor networks achieve the precise ratio performance and stability required by

  • Highly accurate amplifier circuits
  • Voltage reference circuits
  • Precision bridge circuits



Specifications

Weight 0.00000 kg
Dimensions 12.70 × 2.41 × 12.70 mm
Minimum Resistance

Maximum Resistance

Series / Model

Temperature Coefficient

Power Rating

Additional Features

Through-hole precision resistor network2 resistor elements, with either a ratio of 10:1, 9:1 or 1:1Utilises Caddock's Tetrinox® resistance technologyVoltage rating of 30VDC or RMS AC applied to R1 o

Tolerance
