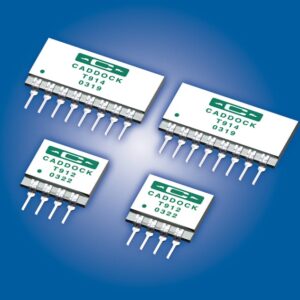

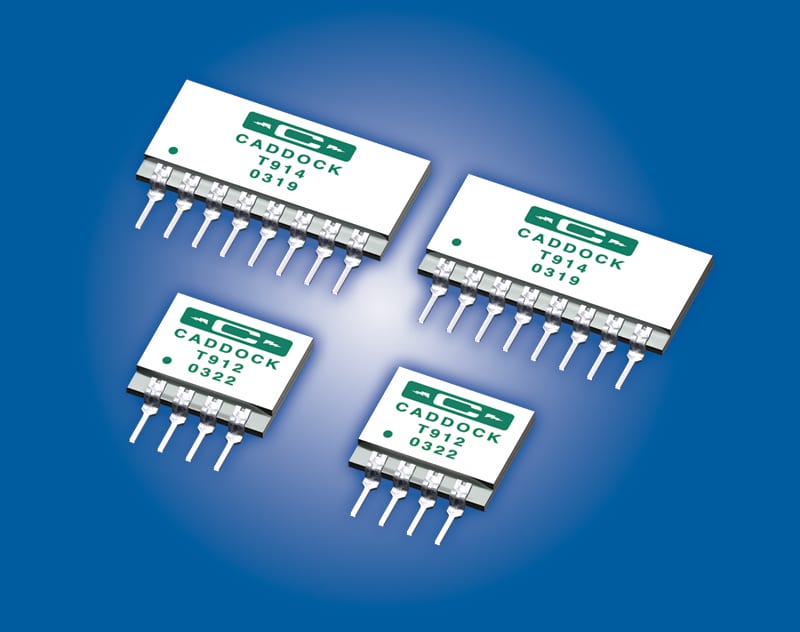

Caddock T914 Series

  • Caddock

Product Features

  • Through-hole precision resistor network
  • 4 resistor elements, with a ratio of 1:1
  • Utilises Caddock’s Tetrinox® resistance technology
  • Voltage rating of 30VDC or RMS AC applied to R1, R2, R3 or R4
  • Custom options and configurations are available upon request

Applications

Description

The T914 series from Caddock are resistor quads with ratio characteristics for precision analog circuits, with a resistance range from 1kΩ to 1MΩ. These resistors have an absolute tolerance of ±0.1% and a ratio tolerance from ±0.01% to ±0.1%. The absolute TCR (from -40°C to +85°C) values are: ±15 ppm/°C, ±25 ppm/°C, ±50 ppm/°C, and the ratio TCR (from -40°C to +85°C) values are: ±10 ppm/°C, ±25 ppm/°C and ±50 ppm/°C. The Caddock T914 series are constructed using the Tetrinox® resistance technology, in addition to the 14 standard equal values for the 2 resistor elements with a ratio of 1:1

  • Custom through-hole precision resistor networks
  • 4 resistor elements, with a ratio of 1:1
  • Resistance values available between 1kΩ and 1MΩ
  • Absolute TCR (from -40°C to +85°C): ±25 ppm/°C
  • Ratio TCR (from -40°C to +85°C): ±2 ppm/°C, ±5 ppm/°C and ±10 ppm/°C
  • Absolute tolerance of: ±0.1%
  • Ratio tolerance of: ±0.01% to ±0.1%
  • Voltage rating of 30V DC or RMS AC applied to R1, R2, R3 or R4
  • Custom options and configurations are available upon request
  • Utilises Caddock’s Tetrinox® resistance technology

The Caddock T914 precision resistor networks achieve the precise ratio performance and stability required by

  • Highly accurate amplifier circuits
  • Voltage reference circuits
  • Precision bridge circuits

Specifications

Weight 0.00000 kg

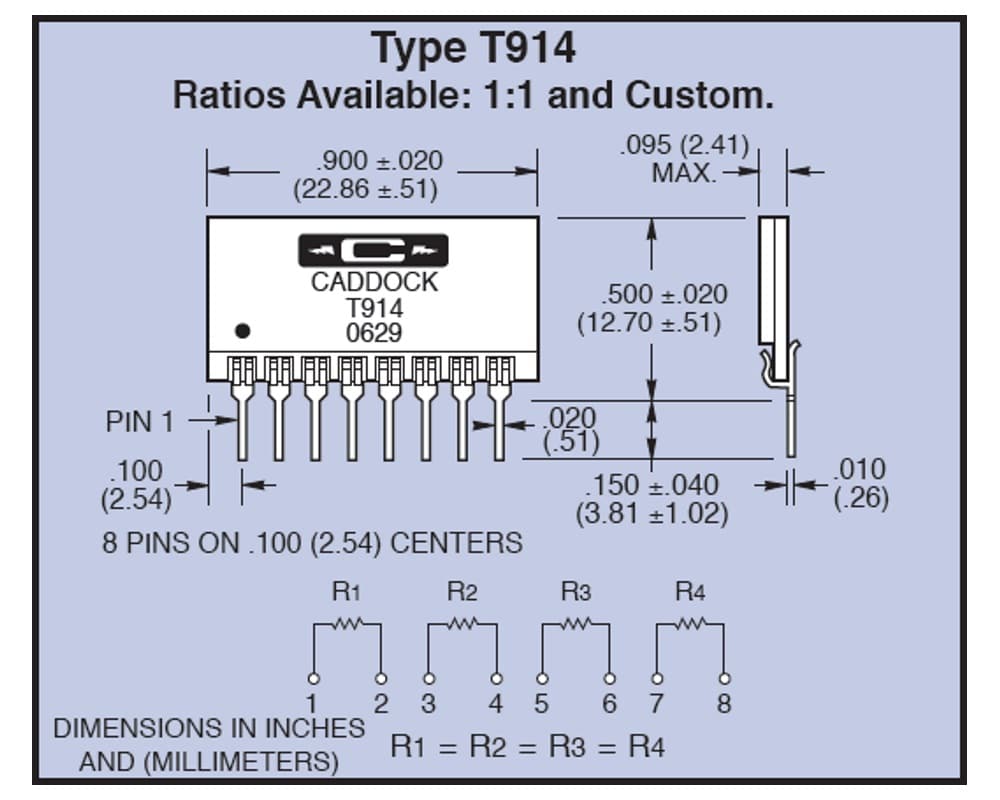

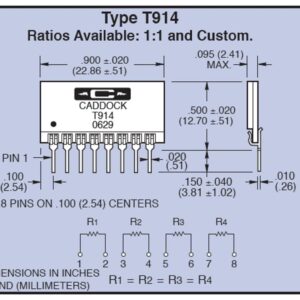

Dimensions 22.86 × 2.41 × 12.70 mm
Minimum Resistance

Maximum Resistance

Temperature Coefficient

Power Rating

Additional Features

Tolerance

RoHS Compliant Product – Caddock

This product is available fully compliant to the RoHS EU directive 2011/65/EU and 2015/863/EU

Caddock T912 and T914 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Caddock T912 and T914 precision resistor network series datasheet
Designing with Caddock TO-style heat sink mountable power film resistors application note (AEN-0101)
Understanding the power rating of Caddock MP9100 resistors application note (AEN-0102)
Application of the type CHR high resistance precision chip resistor products application note (AEN-0103)
Terminal finish and soldering process information for Caddock resistor products application note (AEN-0104)
Caddock resistor products and the RoHS directive application note (AEN-0105)
Customer applications that are outside the scope of the RoHS directive application note (AEN-0106)
Caddock REACH compliance statement application note (AEN-0107)
Recommended solder reflow profile for Caddock surface-mount resistors application note (AEN-0108)
