Alpha MB Series

Product Features

  • Ultra-precision transfer moulded resistor
  • Resistance range form 5ฮฉ to 400kฮฉ
  • Tolerance from ยฑ0.005% to ยฑ1%
  • TCR of ยฑ1 ppm/ยฐC, ยฑ2.5 ppm/ยฐC or ยฑ5 ppm/ยฐC
  • Power rating of 0.5W (at 125ยฐC)
  • Temperature range from -65ยฐC up to +175ยฐC
  • Compliant

The MB ultra-precision transfer moulded resistor series from Alpha Electronics offers a wide resistance range from 5ฮฉ up to 400kฮฉ with tight tolerances, all in a small through-hole package with a pin pitch of 7.5 ยฑ0.5mm. By utilising Alpha’s Bulk Metalยฎ foil resistor technology, they are able to produce resistors with low temperature coefficients and excellent long-term stability.

  • Ultra-precision transfer moulded resistor
  • Available in any resistance between 1ฮฉ and 200kฮฉ
  • Through-hole package with a pin pitch of 7.5ยฑ0.5mm
  • Tight tolerance options as low as ยฑ0.005% available for resistances between 30ฮฉ and 400kฮฉ
  • Tight TCR options available of ยฑ1 ppm/ยฐC (from 0ยฐC up to +65ยฐC, between 30ฮฉ and 400kฮฉ) or ยฑ2.5 ppm/ยฐC (from -55ยฐC up to +125ยฐC, between 30ฮฉ and 400kฮฉ)
  • Maximum working voltage of 350V
  • Power rating of 0.5W (at +125ยฐC) or 0.3W (at 200kฮฉ or above)
  • Maximum rated operating temperature +125ยฐC
  • Temperature range from -65ยฐC up to +175ยฐC



Alpha’s Bulk Metalยฎ foil resistor technology means that these transfer moulded, through-hole, ultra-precision resistors are ideal for precision measurements, also their low inductance makes them ideal for use at higher frequencies.

These resistors are constructed using an outer coating of transfer moulded epoxy resin, making the parts strongly resistant to heat, moisture and solvents. Internally, there are secondary leads which act as a buffer so that stress on the exterior leads is not transmitted to the foil, providing stability against vibrations when the resistor is mounted on a circuit.



The below table gives the full specifications for each resistor model available including the Alpha MB series:

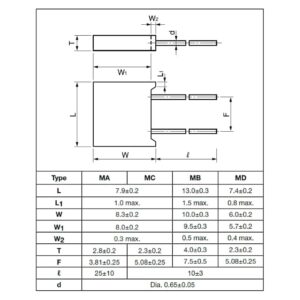

Alpha MB Specifications
* Symbols parenthesized are for part number composition
โœ Resistance figures are the values obtained by measuring the leads at point 12.7ยฑ3.2mm away from the base for type MB, MC and MD, but, in case of resistance below 10ฮฉ, the value at 1.6 ยฑ0.6mm away from the base for all types
** Temperature characteristic Z is applicable for temperature range between 0ยฐC and +60ยฐC



Specifications

Weight 0.00000 kg
Dimensions 10.00 x 4.00 x 13.00mm
Maximum Resistance

400kฮฉ

Minimum Resistance

5ฮฉ

Package / Size

Power Rating

,

Product Type

, ,

Resistance Value

,

Series / Model

Temperature Coefficient

, ,

Temperature Range (ยฐC)

-65 to +175ยฐC

Tolerance

, , , , , ,

Product Variations

SKUResistance ValueTemperature CoefficientTolerance
Alpha MBZ (30ฮฉ - 400kฮฉ) VCustom (30ฮฉ - 400kฮฉ)ยฑ1 ppm/ยฐCยฑ0.005%
Alpha MBY (30ฮฉ - 400kฮฉ) VCustom (30ฮฉ - 400kฮฉ)ยฑ2.5 ppm/ยฐCยฑ0.005%
Alpha MBX (30ฮฉ - 400kฮฉ) VCustom (30ฮฉ - 400kฮฉ)ยฑ5 ppm/ยฐCยฑ0.005%
Alpha MBZ (30ฮฉ - 400kฮฉ) TCustom (30ฮฉ - 400kฮฉ)ยฑ1 ppm/ยฐCยฑ0.01%
Alpha MBY (30ฮฉ - 400kฮฉ) TCustom (30ฮฉ - 400kฮฉ)ยฑ2.5 ppm/ยฐCยฑ0.01%
Alpha MBX (30ฮฉ - 400kฮฉ) TCustom (30ฮฉ - 400kฮฉ)ยฑ5 ppm/ยฐCยฑ0.01%
Alpha MBZ (30ฮฉ - 400kฮฉ) QCustom (30ฮฉ - 400kฮฉ)ยฑ1 ppm/ยฐCยฑ0.02%
Alpha MBY (30ฮฉ - 400kฮฉ) QCustom (30ฮฉ - 400kฮฉ)ยฑ2.5 ppm/ยฐCยฑ0.02%
Alpha MBX (30ฮฉ - 400kฮฉ) QCustom (30ฮฉ - 400kฮฉ)ยฑ5 ppm/ยฐCยฑ0.02%
Alpha MBZ (30ฮฉ - 400kฮฉ) ACustom (30ฮฉ - 400kฮฉ)ยฑ1 ppm/ยฐCยฑ0.05%
Alpha MBY (30ฮฉ - 400kฮฉ) ACustom (30ฮฉ - 400kฮฉ)ยฑ2.5 ppm/ยฐCยฑ0.05%
Alpha MBX (30ฮฉ - 400kฮฉ) ACustom (30ฮฉ - 400kฮฉ)ยฑ5 ppm/ยฐCยฑ0.05%
Alpha MBZ (30ฮฉ - 400kฮฉ) BCustom (30ฮฉ - 400kฮฉ)ยฑ1 ppm/ยฐCยฑ0.1%
Alpha MBY (30ฮฉ - 400kฮฉ) BCustom (30ฮฉ - 400kฮฉ)ยฑ2.5 ppm/ยฐCยฑ0.1%
Alpha MBX (30ฮฉ - 400kฮฉ) BCustom (30ฮฉ - 400kฮฉ)ยฑ5 ppm/ยฐCยฑ0.1%
Alpha MBZ (30ฮฉ - 400kฮฉ) DCustom (30ฮฉ - 400kฮฉ)ยฑ1 ppm/ยฐCยฑ0.5%
Alpha MBY (30ฮฉ - 400kฮฉ) DCustom (30ฮฉ - 400kฮฉ)ยฑ2.5 ppm/ยฐCยฑ0.5%
Alpha MBX (30ฮฉ - 400kฮฉ) DCustom (30ฮฉ - 400kฮฉ)ยฑ5 ppm/ยฐCยฑ0.5%
Alpha MBZ (30ฮฉ - 400kฮฉ) FCustom (30ฮฉ - 400kฮฉ)ยฑ1 ppm/ยฐCยฑ1%
Alpha MBY (30ฮฉ - 400kฮฉ) FCustom (30ฮฉ - 400kฮฉ)ยฑ2.5 ppm/ยฐCยฑ1%
Alpha MBX (30ฮฉ - 400kฮฉ) FCustom (30ฮฉ - 400kฮฉ)ยฑ5 ppm/ยฐCยฑ1%
Alpha MBX (5ฮฉ - 30ฮฉ) BCustom (5ฮฉ - 30ฮฉ)ยฑ5 ppm/ยฐCยฑ0.1%
Alpha MBX (5ฮฉ - 30ฮฉ) DCustom (5ฮฉ - 30ฮฉ)ยฑ5 ppm/ยฐCยฑ0.5%
Alpha MBX (5ฮฉ - 30ฮฉ) FCustom (5ฮฉ - 30ฮฉ)ยฑ5 ppm/ยฐCยฑ1%
