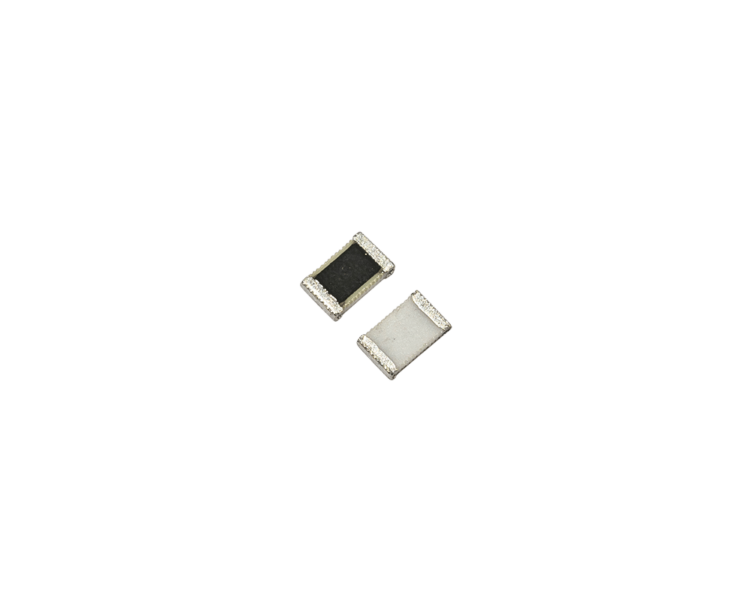

SRT CRA 0805 Series

  • SRT Resistor Technology

Product Features

  • Trimmable thick film chip resistor
  • Resistance range from 1Ω to 10MΩ
  • Tolerances from ±5% to ±30%
  • TCR from ±50 ppm/°C to ±250 ppm/°C
  • Power rating of 0.125W (at +70°C)
  • Temperature range from -55°C up to +155°C

Applications

The CRA 0805 trimmable chip resistor series from SRT Resistor Technology offers a resistance range from 1Ω up to 10MΩ, power rating of 0.125W and voltage rating of 100V trimmed or 300V untrimmed (trimming ratios 1.5/single cut), all in a small 0805 surface mount package. By utilising SRT’s thick film resistor technology, they are able to offer low tolerances down to ±5.0% and TCR as low as ±50 ppm/°C (between 10Ω and 10MΩ). The CRA 0805 resistor series is suitable for laser and air-abrasive trimming, and offers Nickel-barrier/matte-tinned, glass passivated contact areas suitable for soldering. These resistors contain no organics, making them suitable for high vacuum applications.

  • Trimmable thick film chip resistor
  • Available in any resistance between 1Ω and 10MΩ
  • 0805 package
  • Power rating of 0.125W at +70°C
  • Voltage rating of 100V trimmed or 300V untrimmed (trimming ratios 1.5/single cut)
  • Tolerances as low as ±5.0% over the resistance range of 10Ω up to 10MΩ
  • TCR as low as ±50 ppm/°C over the resistance range of 10Ω to 10MΩ
  • Temperature range from -55°C up to +155°C
  • Suitable for laser and air-abrasive trimming
  • High trimming ratios by special geometries
  • Nickel-barrier/matte-tinned, glass passivated contact areas for soldering
  • No organics



Non-symmetric tolerances are also available (e.g. -0/+20%), please contact us for more information.



The below table gives full specifications for each resistor model available including the CRA 0805 series:

SRT CRA Specifications
1) Detailed information on request
2) TC50: Temperature range +25°C…+85°C; TK50 not in the resistance range<100R
3)Continuous operating voltage U=√(P*R)



Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 0.00000 kg

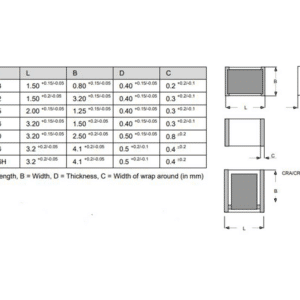

Dimensions 0.40 x 1.25 x 2.00mm
Maximum Resistance

Minimum Resistance

Package / Size

,

Power Rating

Product Type

, ,

Resistance Value

,

Series / Model

Temperature Coefficient

, ,

Temperature Range (°C)

Termination / Connection

Tolerance

, , ,

RoHS Compliant Product – SRT with Exemption

This product is available compliant to the RoHS EU directive 2011/65/EU, however, the following exemptions according to the RoHS annex are applicable:

  • No. 7(a) – 'Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead)' used in leaded resistors
  • No. 7(c)-I – 'Electrical and electronic components containing lead in glass or ceramic…or in a glass or ceramic matrix compound' used in chip resistors and leaded thick film resistors

    SRT CRA and CRB Technical Library

    We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





    DOCUMENTATION
    SRT CRA and CRB trimmable SMD chip resistor datasheet







    SRT CRA 0805 Series Resources

    Product Datasheet
