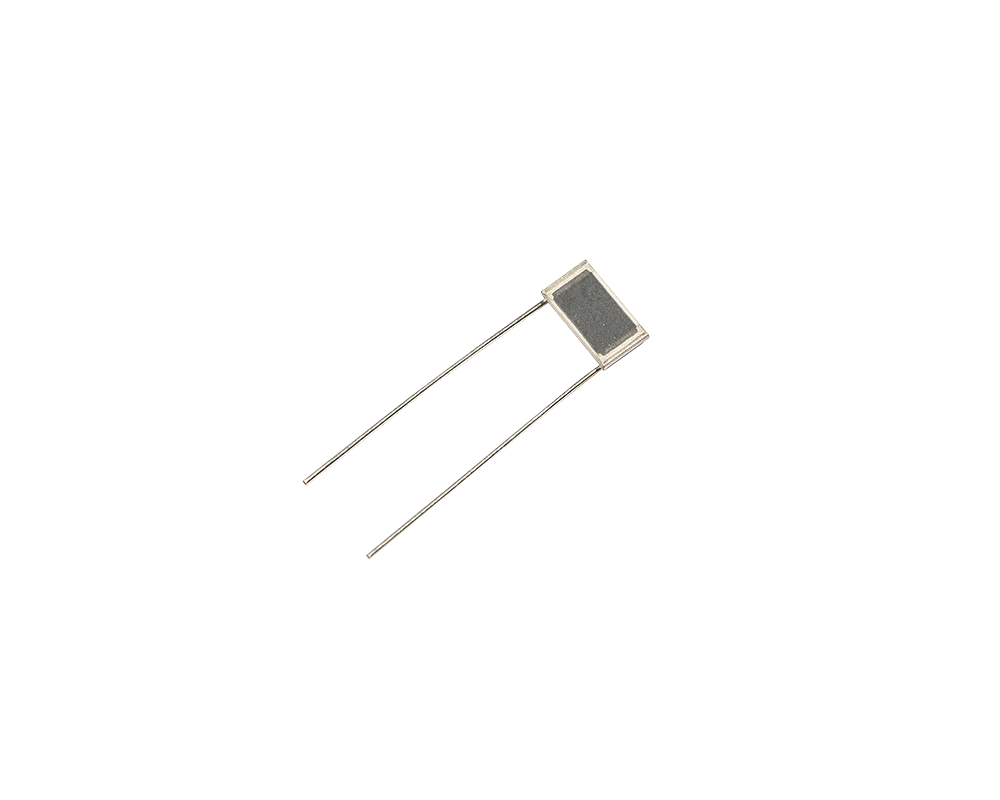

The GST 2512 high ohmic, non-magnetic, radial leaded resistor series from SRT Resistor Technology offers a wide resistance range from 1MΩ up to 1TΩ, power rating of 1W and voltage rating of 1200V trimmed or 2500V untrimmed (tolerances ≥5%), all in a small 2512 radial leaded package. By utilising SRT’s thick film resistor technology, these resistors are able to offer tolerances down to ±0.5% (between 1MΩ and 100MΩ) as well as a TCR of down to ±25 ppm/°C (between 1MΩ and 500MΩ) and a VCR as low as ±10 ppm/V (between 1MΩ and 100MΩ). The GST 2512 resistor series also features variable lead spacing and lacquer coating for climatic protection.
Lower tolerance, TCR and VCR options and other dimensions are available upon request. Please contact us for further information and availability.
The below table gives full specifications for each resistor model available including the GST 2512 series:

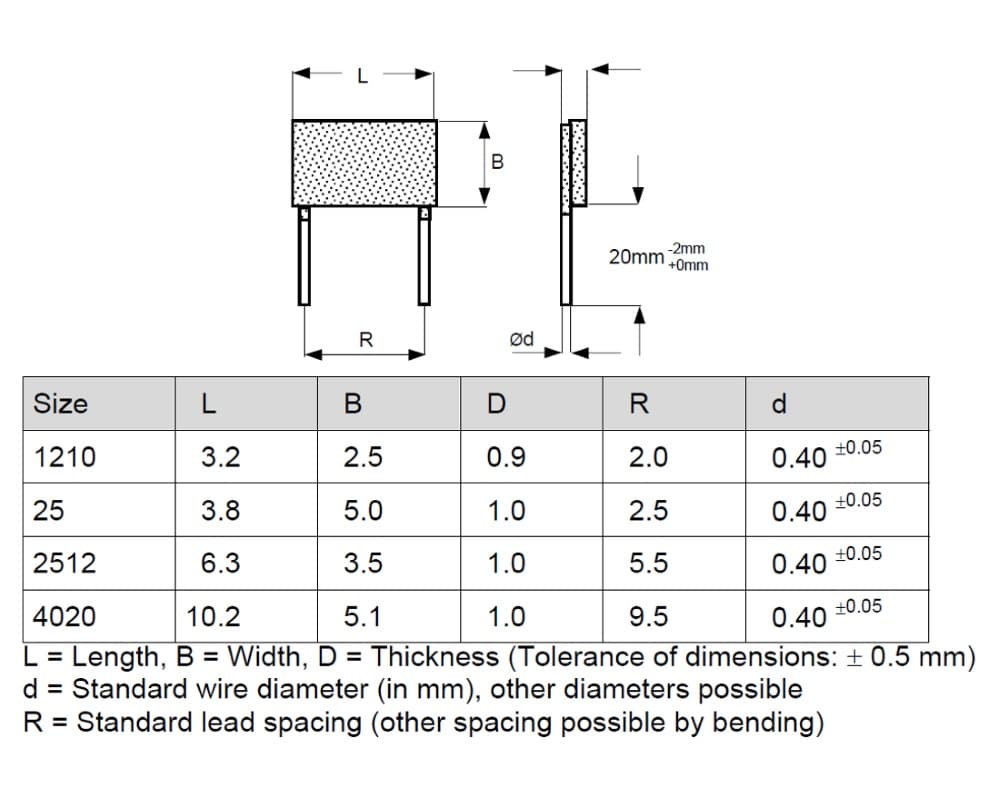

Weight | 0.00000 kg |
---|---|
Dimensions | 0.40 x 3.50 x 6.30mm |
Maximum Resistance | 1TΩ |
Minimum Resistance | 1MΩ |
Package / Size | |
Power Rating | |
Product Type | |
Resistance Value | Custom (1MΩ – 100MΩ), Custom (100MΩ – 500MΩ), Custom (500MΩ – 1GΩ), Custom (1GΩ – 10GΩ), Custom (10GΩ – 100GΩ), Custom (100GΩ – 1TΩ) |
Series / Model | |
Temperature Coefficient | ±50 ppm/°C, ±100 ppm/°C, ±250 ppm/°C, ±500 ppm/°C, ±1000 ppm/°C |
Temperature Range (°C) | -55 to +150°C |
Termination / Connection | Radial |
Tolerance |
SKU | Resistance Value | Temperature Coefficient | Tolerance |
---|---|---|---|
SRT GST 2512 Series | Custom (100GΩ - 1TΩ) | ±1000 ppm/°C | ±10% |
SRT GST 2512 Series | Custom (100GΩ - 1TΩ) | ±1000 ppm/°C | ±20% |
SRT GST 2512 Series | Custom (100GΩ - 1TΩ) | ±1000 ppm/°C | ±30% |
SRT GST 2512 Series | Custom (100GΩ - 1TΩ) | ±1000 ppm/°C | ±50% |
SRT GST 2512 Series | Custom (100MΩ - 500MΩ) | ±100 ppm/°C | ±1% |
SRT GST 2512 Series | Custom (100MΩ - 500MΩ) | ±1% | |
SRT GST 2512 Series | Custom (100MΩ - 500MΩ) | ±50 ppm/°C | ±1% |
SRT GST 2512 Series | Custom (100MΩ - 500MΩ) | ±100 ppm/°C | ±10% |
SRT GST 2512 Series | Custom (100MΩ - 500MΩ) | ±10% | |
SRT GST 2512 Series | Custom (100MΩ - 500MΩ) | ±50 ppm/°C | ±10% |
SRT GST 2512 Series | Custom (100MΩ - 500MΩ) | ±100 ppm/°C | ±2% |
SRT GST 2512 Series | Custom (100MΩ - 500MΩ) | ±2% | |
SRT GST 2512 Series | Custom (100MΩ - 500MΩ) | ±50 ppm/°C | ±2% |
SRT GST 2512 Series | Custom (100MΩ - 500MΩ) | ±100 ppm/°C | ±20% |
SRT GST 2512 Series | Custom (100MΩ - 500MΩ) | ±20% | |
SRT GST 2512 Series | Custom (100MΩ - 500MΩ) | ±50 ppm/°C | ±20% |
SRT GST 2512 Series | Custom (100MΩ - 500MΩ) | ±100 ppm/°C | ±5% |
SRT GST 2512 Series | Custom (100MΩ - 500MΩ) | ±5% | |
SRT GST 2512 Series | Custom (100MΩ - 500MΩ) | ±50 ppm/°C | ±5% |
SRT GST 2512 Series | Custom (10GΩ - 100GΩ) | ±250 ppm/°C | ±10% |
SRT GST 2512 Series | Custom (10GΩ - 100GΩ) | ±500 ppm/°C | ±10% |
SRT GST 2512 Series | Custom (10GΩ - 100GΩ) | ±250 ppm/°C | ±20% |
SRT GST 2512 Series | Custom (10GΩ - 100GΩ) | ±500 ppm/°C | ±20% |
SRT GST 2512 Series | Custom (10GΩ - 100GΩ) | ±250 ppm/°C | ±30% |
SRT GST 2512 Series | Custom (10GΩ - 100GΩ) | ±500 ppm/°C | ±30% |
SRT GST 2512 Series | Custom (10GΩ - 100GΩ) | ±250 ppm/°C | ±5% |
SRT GST 2512 Series | Custom (10GΩ - 100GΩ) | ±500 ppm/°C | ±5% |
SRT GST 2512 Series | Custom (1GΩ - 10GΩ) | ±100 ppm/°C | ±10% |
SRT GST 2512 Series | Custom (1GΩ - 10GΩ) | ±250 ppm/°C | ±10% |
SRT GST 2512 Series | Custom (1GΩ - 10GΩ) | ±100 ppm/°C | ±2% |
SRT GST 2512 Series | Custom (1GΩ - 10GΩ) | ±250 ppm/°C | ±2% |
SRT GST 2512 Series | Custom (1GΩ - 10GΩ) | ±100 ppm/°C | ±5% |
SRT GST 2512 Series | Custom (1GΩ - 10GΩ) | ±250 ppm/°C | ±5% |
SRT GST 2512 Series | Custom (1GΩ - 10GΩ) | ±100 ppm/°C | ±20% |
SRT GST 2512 Series | Custom (1GΩ - 10GΩ) | ±250 ppm/°C | ±20% |
SRT GST 2512 Series | Custom (1MΩ - 100MΩ) | ±100 ppm/°C | ±0.5% |
SRT GST 2512 Series | Custom (1MΩ - 100MΩ) | ±0.5% | |
SRT GST 2512 Series | Custom (1MΩ - 100MΩ) | ±50 ppm/°C | ±0.5% |
SRT GST 2512 Series | Custom (1MΩ - 100MΩ) | ±100 ppm/°C | ±1% |
SRT GST 2512 Series | Custom (1MΩ - 100MΩ) | ±1% | |
SRT GST 2512 Series | Custom (1MΩ - 100MΩ) | ±50 ppm/°C | ±1% |
SRT GST 2512 Series | Custom (1MΩ - 100MΩ) | ±100 ppm/°C | ±10% |
SRT GST 2512 Series | Custom (1MΩ - 100MΩ) | ±10% | |
SRT GST 2512 Series | Custom (1MΩ - 100MΩ) | ±50 ppm/°C | ±10% |
SRT GST 2512 Series | Custom (1MΩ - 100MΩ) | ±100 ppm/°C | ±2% |
SRT GST 2512 Series | Custom (1MΩ - 100MΩ) | ±2% | |
SRT GST 2512 Series | Custom (1MΩ - 100MΩ) | ±50 ppm/°C | ±2% |
SRT GST 2512 Series | Custom (1MΩ - 100MΩ) | ±100 ppm/°C | ±5% |
SRT GST 2512 Series | Custom (1MΩ - 100MΩ) | ±5% | |
SRT GST 2512 Series | Custom (1MΩ - 100MΩ) | ±50 ppm/°C | ±5% |
SRT GST 2512 Series | Custom (500MΩ - 1GΩ) | ±100 ppm/°C | ±1% |
SRT GST 2512 Series | Custom (500MΩ - 1GΩ) | ±250 ppm/°C | ±1% |
SRT GST 2512 Series | Custom (500MΩ - 1GΩ) | ±100 ppm/°C | ±10% |
SRT GST 2512 Series | Custom (500MΩ - 1GΩ) | ±250 ppm/°C | ±10% |
SRT GST 2512 Series | Custom (500MΩ - 1GΩ) | ±100 ppm/°C | ±2% |
SRT GST 2512 Series | Custom (500MΩ - 1GΩ) | ±250 ppm/°C | ±2% |
SRT GST 2512 Series | Custom (500MΩ - 1GΩ) | ±100 ppm/°C | ±20% |
SRT GST 2512 Series | Custom (500MΩ - 1GΩ) | ±250 ppm/°C | ±20% |
SRT GST 2512 Series | Custom (500MΩ - 1GΩ) | ±100 ppm/°C | ±5% |
SRT GST 2512 Series | Custom (500MΩ - 1GΩ) | ±250 ppm/°C | ±5% |
This product is available compliant to the RoHS EU directive 2011/65/EU, however, the following exemptions according to the RoHS annex are applicable:
We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:
DOCUMENTATION | |
---|---|
SRT GST high ohmic non magnetic radial leaded resistor datasheet |
