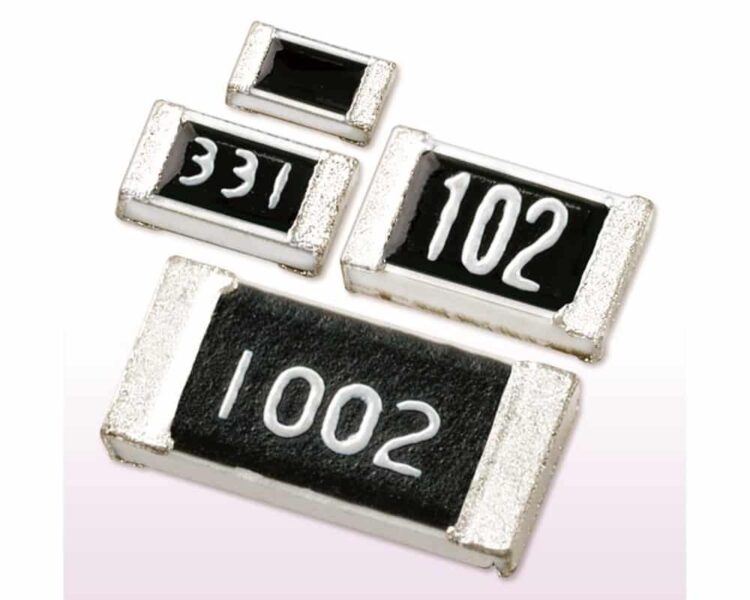

The RG3216 high precision thin film resistor is part of the RG series of metal thin film chip resistors designed for high precision applications from Susumu. The RG3216 model has a 1206 chip size and is available in E-24 or E-96 resistance values between 10ฮฉ and 5.1Mฮฉ. This series utilises an innovative thin film structure enabling low noise and anti-sulfur. Susumu’s thin film technology offers a power rating between 0.125W to 0.25W as well as a very stable TCR, down to ยฑ5 ppm/ยฐC. These resistors have been developed to withstand operating temperatures between โ55ยฐC to +155ยฐC.
| Power Rating (Low) | Power Rating (Regular) | Power Rating (High) | TCR | Resistance range / Tolerance | Resistance value series | Packaging quantity |
|---|---|---|---|---|---|---|
| 1/8W | 1/4W | - | ยฑ5 ppm/ยฐC (V) | 100ฮฉ to 33.2kฮฉ ยฑ0.05% (W) 100ฮฉ to 33.2kฮฉ ยฑ0.1% (B) 100ฮฉ to 33.2kฮฉ ยฑ0.5% (D) | E-24 / E-96 | T5 (5,000 pcs) |
| 1/8W | 1/4W | - | ยฑ10 ppm/ยฐC (N) | 47ฮฉ to 1Mฮฉ ยฑ0.05% (W) 47ฮฉ to 1Mฮฉ ยฑ0.1% (B) 47ฮฉ to 1Mฮฉ ยฑ0.5% (D) | E-24 / E-96 | T5 (5,000 pcs) |
| 1/8W | 1/4W | - | ยฑ25 ppm/ยฐC (P) | 47ฮฉ to 5.1Mฮฉ ยฑ0.05% (W) 47ฮฉ to 5.1Mฮฉ ยฑ0.1% (B) 47ฮฉ to 5.1Mฮฉ ยฑ0.5% (D) | E-24 / E-96 | T5 (5,000 pcs) |
| 1/8W | 1/4W | - | ยฑ50 ppm/ยฐC (Q) | 10ฮฉ to <47ฮฉ ยฑ0.5% (D) | E-24 / E-96 | T5 (5,000 pcs) |
Susumu is a leading manufacturer of thin-film and metal foil SMD resistors, covering a wide range of resistance values and applications. Specialised in the production of Low ohmic, current sensing resistors with long sided variants available for higher power applications. Please visit www.susumu.co.jp/usa/ for more information.
| Dimensions | 0.40 x 1.60 x 3.20mm |
|---|---|
| Minimum Resistance | 10ฮฉ |
| Maximum Resistance | 5.1Mฮฉ |
| Series / Model | |
| Tolerance | |
| Power Rating | |
| Resistance Value | Custom E-24 / E-96 (10ฮฉ – 47ฮฉ), Custom E-24 / E-96 (47ฮฉ – 100ฮฉ), Custom E-24 / E-96 (100โฆ – 33.2kโฆ), Custom E-24 / E-96 (33.2kโฆ – 1Mโฆ), Custom E-24 / E-96 (1Mโฆ – 5.1Mโฆ) |
| Temperature Coefficient | |
| Package / Size |
The RG resistor series is available with various options. The information below gives an example of the part numbering system used for these resistors and the options available.
Below is an example of the part number break down for the RG resistor series:
| SKU | Resistance Value | Tolerance | Temperature Coefficient |
|---|---|---|---|
| Susumu RG3216 Series | Custom E-24 / E-96 (100โฆ - 33.2kโฆ) | ยฑ0.05% | ยฑ10 ppm/ยฐC |
| Susumu RG3216 Series | Custom E-24 / E-96 (100โฆ - 33.2kโฆ) | ยฑ0.05% | |
| Susumu RG3216 Series | Custom E-24 / E-96 (100โฆ - 33.2kโฆ) | ยฑ0.05% | ยฑ5 ppm/ยฐC |
| Susumu RG3216 Series | Custom E-24 / E-96 (100โฆ - 33.2kโฆ) | ยฑ0.1% | ยฑ10 ppm/ยฐC |
| Susumu RG3216 Series | Custom E-24 / E-96 (100โฆ - 33.2kโฆ) | ยฑ0.1% | |
| Susumu RG3216 Series | Custom E-24 / E-96 (100โฆ - 33.2kโฆ) | ยฑ0.1% | ยฑ5 ppm/ยฐC |
| Susumu RG3216 Series | Custom E-24 / E-96 (100โฆ - 33.2kโฆ) | ยฑ0.5% | ยฑ10 ppm/ยฐC |
| Susumu RG3216 Series | Custom E-24 / E-96 (100โฆ - 33.2kโฆ) | ยฑ0.5% | |
| Susumu RG3216 Series | Custom E-24 / E-96 (100โฆ - 33.2kโฆ) | ยฑ0.5% | ยฑ5 ppm/ยฐC |
| Susumu RG3216 Series | Custom E-24 / E-96 (10ฮฉ - 47ฮฉ) | ยฑ0.5% | ยฑ50 ppm/ยฐC |
| Susumu RG3216 Series | Custom E-24 / E-96 (1Mโฆ - 5.1Mโฆ) | ยฑ0.1% | |
| Susumu RG3216 Series | Custom E-24 / E-96 (1Mโฆ - 5.1Mโฆ) | ยฑ0.5% | |
| Susumu RG3216 Series | Custom E-24 / E-96 (1Mโฆ - 5.1Mโฆ) | ยฑ0.05% | |
| Susumu RG3216 Series | Custom E-24 / E-96 (33.2kโฆ - 1Mโฆ) | ยฑ0.05% | ยฑ10 ppm/ยฐC |
| Susumu RG3216 Series | Custom E-24 / E-96 (33.2kโฆ - 1Mโฆ) | ยฑ0.05% | |
| Susumu RG3216 Series | Custom E-24 / E-96 (33.2kโฆ - 1Mโฆ) | ยฑ0.1% | ยฑ10 ppm/ยฐC |
| Susumu RG3216 Series | Custom E-24 / E-96 (33.2kโฆ - 1Mโฆ) | ยฑ0.1% | |
| Susumu RG3216 Series | Custom E-24 / E-96 (33.2kโฆ - 1Mโฆ) | ยฑ0.5% | ยฑ10 ppm/ยฐC |
| Susumu RG3216 Series | Custom E-24 / E-96 (33.2kโฆ - 1Mโฆ) | ยฑ0.5% | |
| Susumu RG3216 Series | Custom E-24 / E-96 (47ฮฉ - 100ฮฉ) | ยฑ0.05% | ยฑ10 ppm/ยฐC |
| Susumu RG3216 Series | Custom E-24 / E-96 (47ฮฉ - 100ฮฉ) | ยฑ0.05% | |
| Susumu RG3216 Series | Custom E-24 / E-96 (47ฮฉ - 100ฮฉ) | ยฑ0.1% | ยฑ10 ppm/ยฐC |
| Susumu RG3216 Series | Custom E-24 / E-96 (47ฮฉ - 100ฮฉ) | ยฑ0.1% | |
| Susumu RG3216 Series | Custom E-24 / E-96 (47ฮฉ - 100ฮฉ) | ยฑ0.5% | ยฑ10 ppm/ยฐC |
| Susumu RG3216 Series | Custom E-24 / E-96 (47ฮฉ - 100ฮฉ) | ยฑ0.5% |
| Product name | SKU | Datasheet | ||
|---|---|---|---|---|
| Susumu RG1005 Series | Susumu RG1005 | View Product | |
| Susumu RG1608 Series | Susumu RG1608 | View Product | |
| Susumu RG2012 Series | Susumu RG2012 | View Product | |
| Susumu RG3216 Series | Susumu RG3216 | View Product |
The RG resistor series is available with various options. The information below gives an example of the part numbering system used for these resistors and the options available.
Below is an example of the part number break down for the RG resistor series:
