| Dimensions | 0.40 x 0.80 x 1.60mm |
|---|---|
| Minimum Resistance | 10Ω |
| Maximum Resistance | 1MΩ |
| Series / Model | |
| Tolerance | |
| Power Rating | |
| Resistance Value | Custom E-24 / E-96 (10Ω – 47Ω), Custom E-24 / E-96 (47Ω – 100Ω), Custom E-24 / E-96 (100Ω – 5.1kΩ), Custom E-24 / E-96 (5.1kΩ – 274kΩ), Custom E-24 / E-96 (274kΩ – 1MΩ) |
| Temperature Coefficient | |
| Mounting / Size |
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

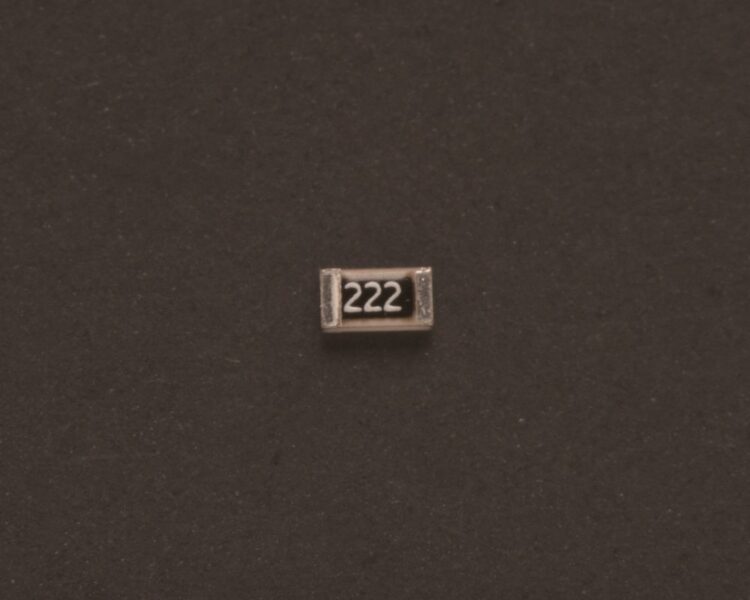

The RG1608 high precision thin film resistor is part of the RG series of metal thin film chip resistors designed for high precision applications from Susumu. The RG1608 model has a 0603 chip size and is available in E-24 or E-96 resistance values between 10Ω and 1MΩ. This series utilises an innovative thin film structure enabling low noise and anti-sulfur. Susumu’s thin film technology offers a power rating between 0.0625W to 0.167W as well as a very stable TCR, down to ±5 ppm/°C. These resistors have been developed to withstand operating temperatures between −55°C to +155°C.
| Power Rating (Low) | Power Rating (Regular) | Power Rating (High) | TCR | Resistance range / Tolerance | Resistance value series | Packaging quantity |
|---|---|---|---|---|---|---|
| 1/16W | 1/10W | 1/6W | ±5 ppm/°C (V) | 100Ω to <5.1kΩ ±0.05% (W) 100Ω to <5.1kΩ ±0.1% (B) 100Ω to <5.1kΩ ±0.5% (D) | E-24 / E-96 | T5 (5,000 pcs) |
| 1/16W | 1/10W | 1/6W | ±10 ppm/°C (N) | 47Ω to 274kΩ ±0.05% (W) 47Ω to 274kΩ ±0.1% (B) 47Ω to 274kΩ ±0.5% (D) | E-24 / E-96 | T5 (5,000 pcs) |
| 1/16W | 1/10W | 1/6W | ±25 ppm/°C (P) | 47Ω to 274kΩ ±0.05% (W) 47Ω to 1MΩ ±0.1% (B) 47Ω to 1MΩ ±0.5% (D) | E-24 / E-96 | T5 (5,000 pcs) |
| 1/16W | 1/10W | 1/6W | ±50 ppm/°C (Q) | 10Ω to <47Ω ±0.5% (D) | E-24 / E-96 | T5 (5,000 pcs) |
Susumu is a leading manufacturer of thin-film and metal foil SMD resistors, covering a wide range of resistance values and applications. Specialised in the production of Low ohmic, current sensing resistors with long sided variants available for higher power applications. Please visit www.susumu.co.jp/usa/ for more information.
