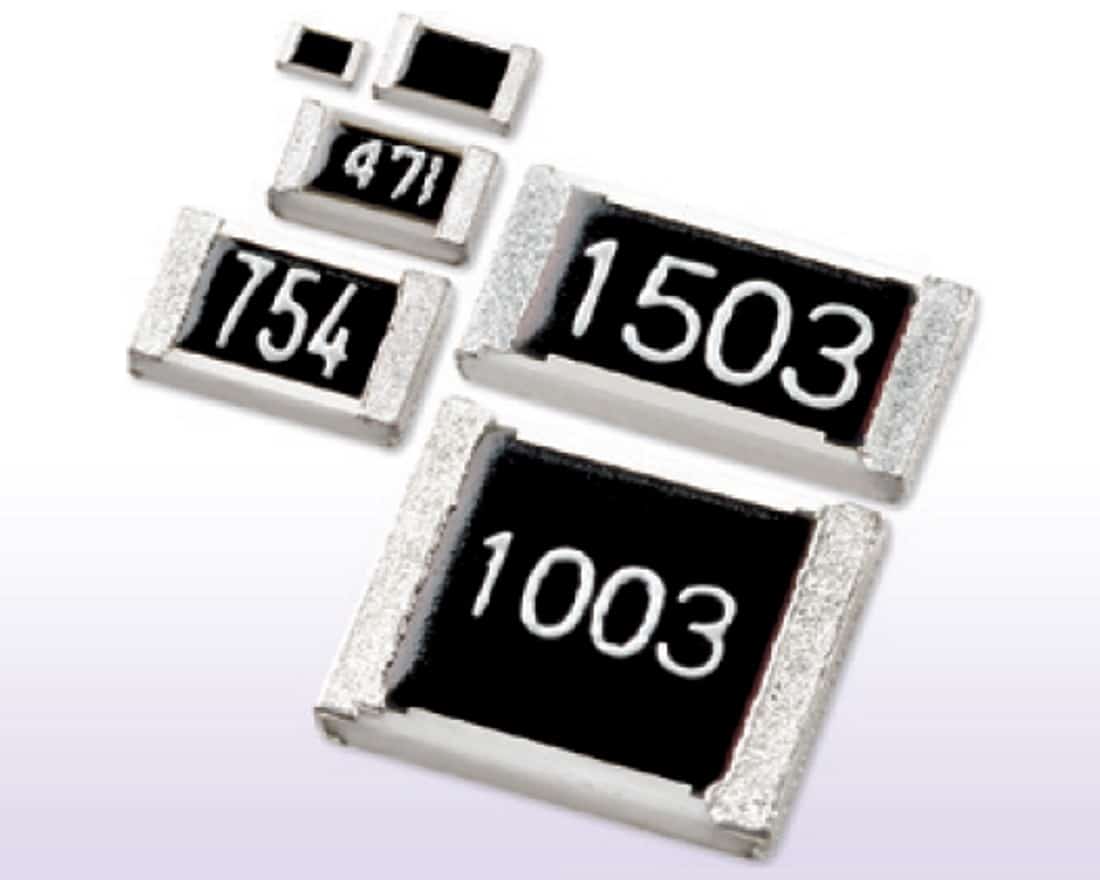

Susumu RR0816 Series

Susumu RR0816 Series
Susumu RR0816 Series
Susumu RR0816 Series
  • Susumu

Product Features

  • Surface-mount thin film precision chip resistor
  • Temperature range of −55°C to +125°C
  • Maximum voltage of 75V
  • Precision chip resistors excellent in frequency performance, noise characteristics and linearity

Applications

  • Compliant

Description

The RR0816 series of thin film precision chip resistors from Susumu offer the designer precision and reliability. The resistive element is a Ni-Cr film and with wraparound terminations which are solder plated with a leach resistant nickel barrier. The Susumu RR0816 series has a chip size 0603 and a resistance range from 10Ω to 360k. This precision surface-mount chip resistor provides excellent temperature stability combined with low noise and good high frequency response.

  • Surface-mount thin film precision chip resistor
  • Resistance range between 10Ω and 360kΩ available
  • Resistance value series E-24 and E-96
  • Power rating of 0.0625W
  • Tolerance values available are ±0.5% (D)
  • TCR values available are ±25 ppm/°C (P) and ±50 ppm°C (Q)
  • Maximum voltage of 75V
  • Temperature range of −55°C to +125°C
  • Chip size of 0603



The Susumu RR0816 series of thin film precision chip resistors are ideal for the following applications:

  • Consumer electronics that requires precision resistors
  • All-purpose resistors in any area of electronics

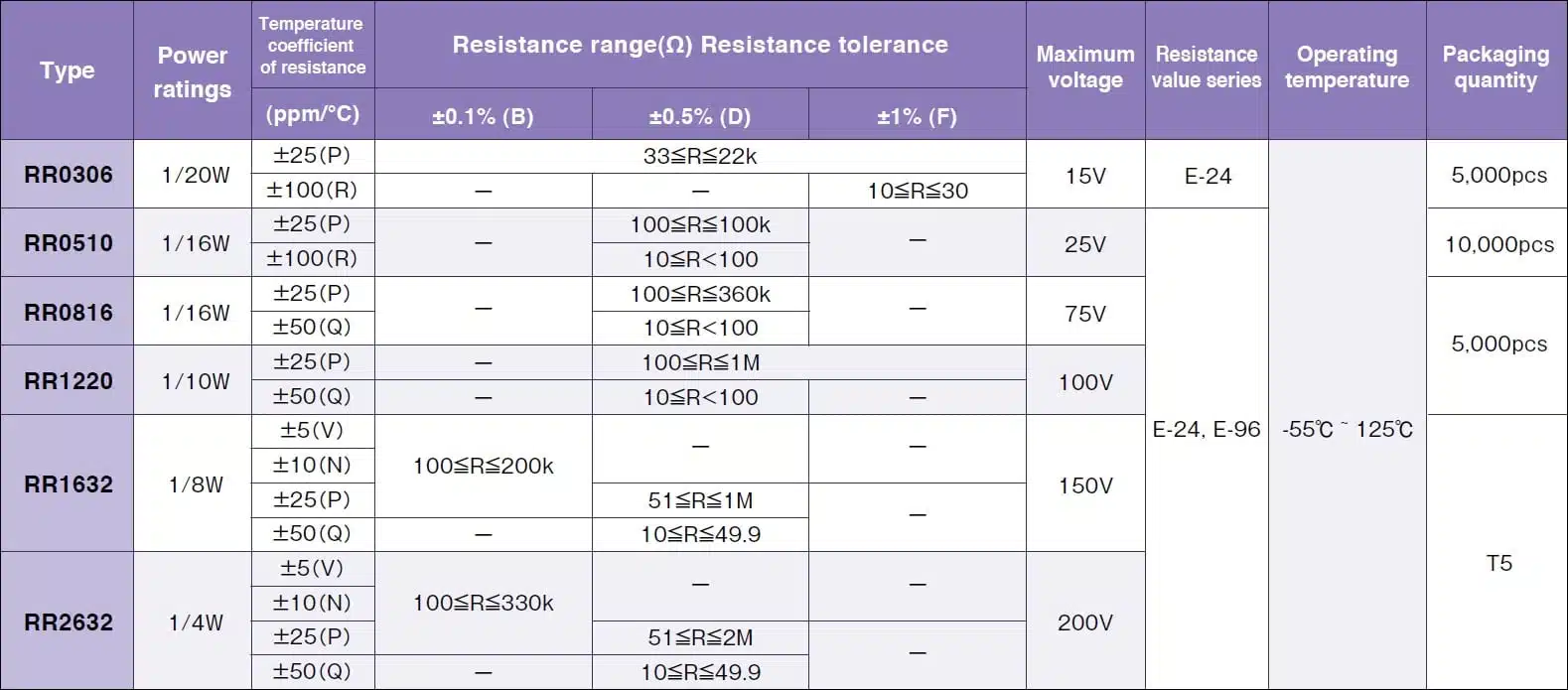

The below table gives the full specifications of the Susumu RR series including the RR0816:

Susumu RR0816 Specifications
Please see the Susumu selection guide in the Technical Library tab for the E-24 and E-96 values





Specifications

Weight 0.00000 kg
Dimensions 1.60 × 0.80 × 0.40 mm
Minimum Resistance

Maximum Resistance

Series / Model

Temperature Coefficient

,

Power Rating

Tolerance

Package / Size
