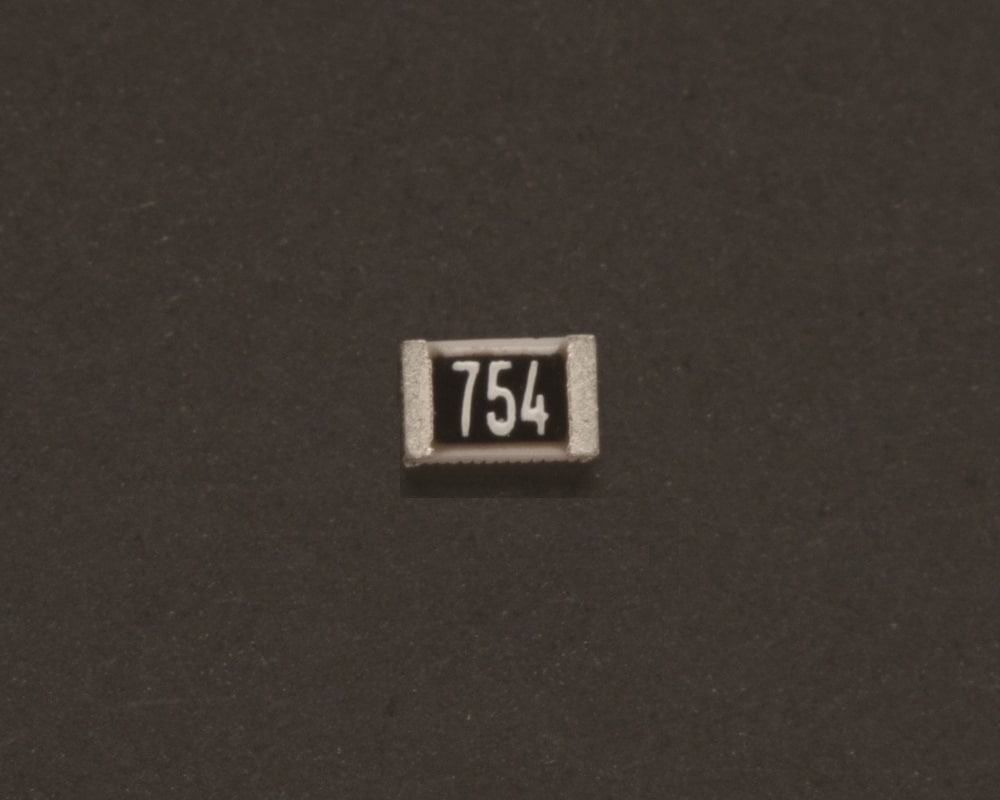

Susumu RR1220 Series

  • Susumu

Product Features

  • Surface-mount thin film precision chip resistor
  • Temperature range of −55°C to +125°C
  • Maximum voltage of 100V
  • Precision chip resistors excellent in frequency performance, noise characteristics and linearity.

Applications

  • Compliant

Description

The RR1220 series of thin film precision chip resistors from Susumu offer the designer precision and reliability. The resistive element is a Ni-Cr film and with wraparound terminations which are solder plated with a leach resistant nickel barrier. The Susumu RR1220 series has a chip size of 0805 and a resistance range from 10Ω to 1MΩ. This precision surface-mount chip resistor provides excellent temperature stability combined with low noise and good high frequency response.

  • Surface-mount metal thin film precision chip resistor
  • Resistance range between 10Ω and 1MΩ available
  • Resistance value series E-24 and E-96
  • Power rating of 0.1W
  • Tolerance values available are ±0.5% (D)
  • TCR values available are ±25 ppm/°C (P) and ±50 ppm°C (Q)
  • Maximum voltage of 100V
  • Temperature range of −55°C to +125°C
  • Chip size of 0805



The Susumu RR1220 series of thin film precision chip resistors are ideal for the following applications:

  • Consumer electronics that requires precision resistors
  • All-purpose resistors in any area of electronics

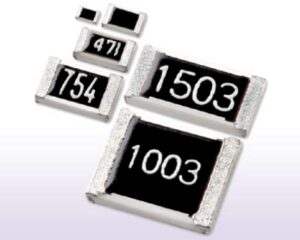

The below table gives the full specifications of the Susumu RR series including the RR1220:

Susumu RR1220 Specifications
Please see the Susumu selection guide in the Technical Library tab for the E-24 and E-96 values





Specifications

Weight 0.00000 kg
Dimensions 2.00 × 1.25 × 0.40 mm
Minimum Resistance

Maximum Resistance

Series / Model

Temperature Coefficient

,

Power Rating

Additional Features

Surface-mount thin film precision chip resistorOperating temperature range of −55°C to +125°C Maximum voltage of 100V Precision chip resistors excellent in frequency performance, noise characteri

Tolerance

Package / Size

Susumu RR Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Susumu RR precision thin film chip resistor series datasheet
Susumu product selection guide and handling care information
Susumu complete catalogue







VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.

VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.

Susumu Video Library

VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.

VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.

Susumu RR1220 Series Resources

Product Datasheet

Supporting Product Information

  • Susumu RG/KRL Sample Kits Datasheet
    Available kits for metal thin film chip resistors and low resistance chip resistors, used for development, prototype making, testing and experiments.

Supporting Manufacturer Information
