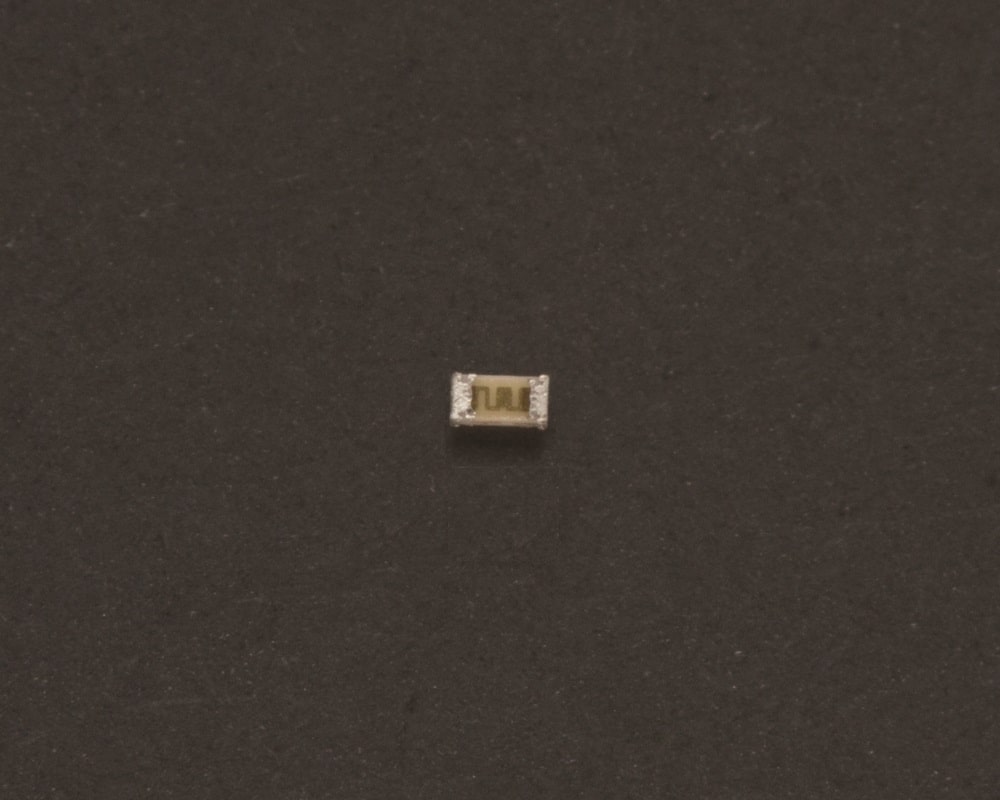

Susumu RR0510 Series

  • Susumu

Product Features

  • Surface-mount metal thin film precision chip resistor
  • Operating temperature range of −55°C to +125°C
  • Maximum voltage of 25V
  • Precision chip resistors excellent in frequency performance, noise characteristics and linearity.

Applications

Description

The RR0510 series of thin film precision chip resistors offer the designer precision and reliability. The resistive element is a Ni-Cr film and with wraparound terminations which are solder plated with a leach resistant nickel barrier. The Susumu RR0510 series has a chip size of 0402 and a resistance range from 10Ω to 100kΩ. This precision surface-mount chip resistor provides excellent temperature stability combined with low noise and good high frequency response.

  • Surface-mount thin film precision chip resistor
  • Resistance range between 10Ω and 100kΩ available
  • Resistance value series E-24 and E-96
  • Power rating of 0.0625W
  • Tolerance values available are ±0.5% (D)
  • TCR values available are ±25 ppm/°C (P) and ±100 ppm/°C (R)
  • Maximum voltage of 25V
  • Operating temperature range of −55°C to +125°C
  • Chip size of 0402

The Susumu RR0510 series of thin film precision chip resistors are ideal for the following applications:

  • Consumer electronics that requires precision resistors
  • All-purpose resistors in any area of electronics

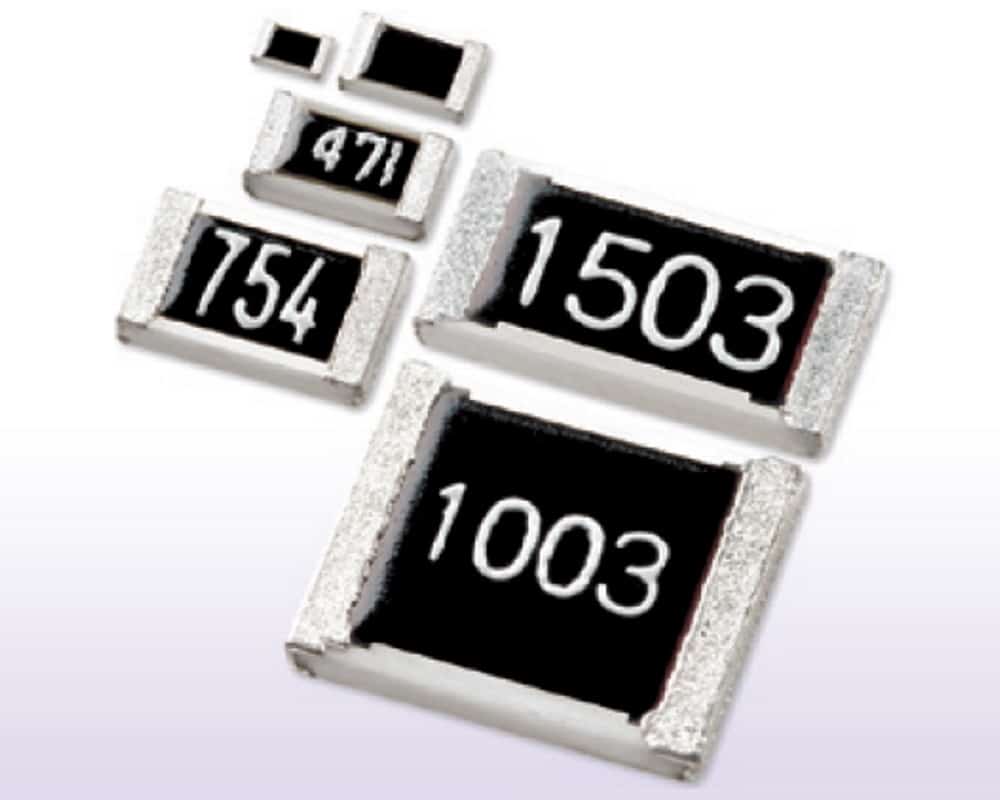

The below table gives the full specifications of the Susumu RR series including the RR0510:

Susumu RR0510 Specifications

Please see the Susumu selection guide in the Technical Library tab for the E-24 and E-96 values


Specifications

Weight 0.00000 kg

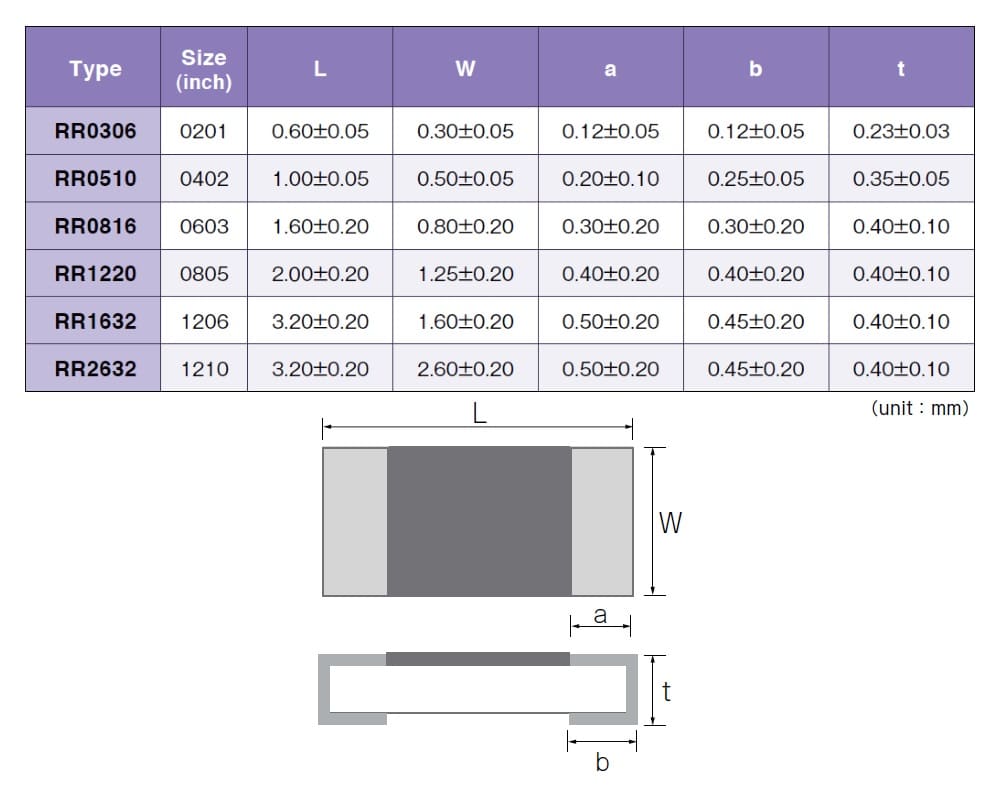

Dimensions 1.00 × 0.58 × 0.35 mm
Minimum Resistance

Maximum Resistance

Temperature Coefficient

,

Power Rating

Additional Features

Surface-mount metal thin film precision chip resistor Operating temperature range of −55°C to +125°CMaximum voltage of 25VPrecision chip resistors excellent in frequency performance, noise charac

Tolerance

RoHS Compliant Product – Susumu

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Susumu RR Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Susumu RR precision thin film chip resistor series datasheet
Susumu product selection guide and handling care information
Susumu complete catalogue







VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.

VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.
