  • VFR

Product Features

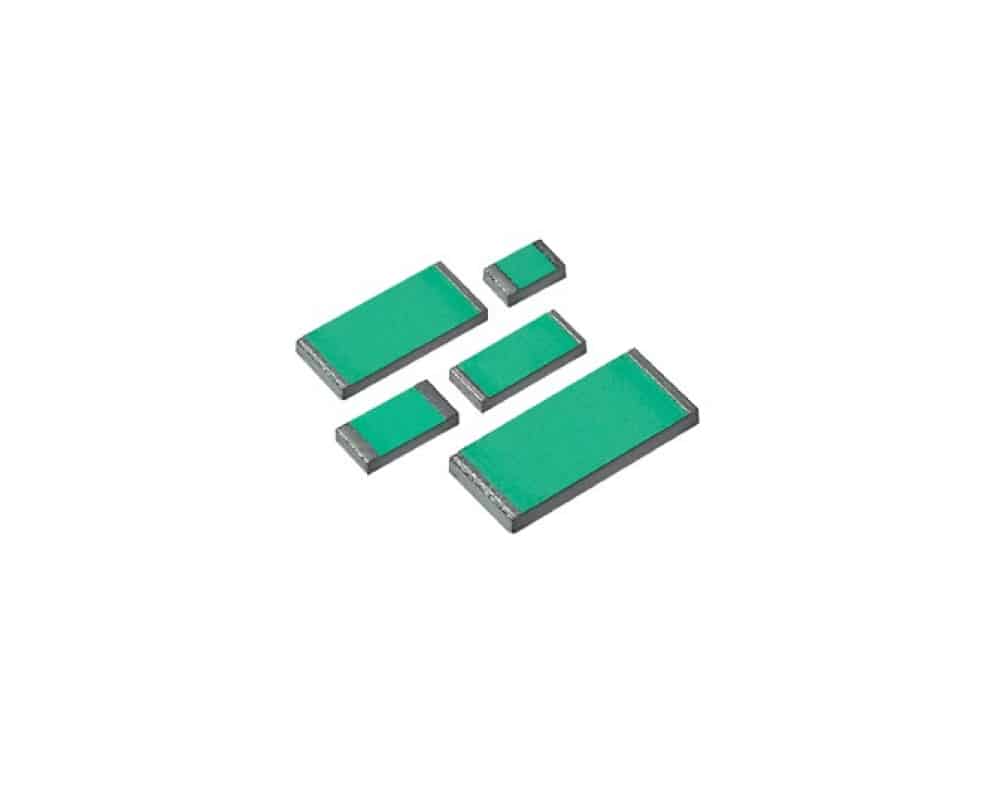

  • Ultra high precision FRSM wrap-around chip resistor
  • EEE-INST-002 and MIL-PRF-55342 tested for space and military applications
  • 2010 package size
  • Voltage rating of 102V
  • Excellent stability, noise and ESD withstanding properties
  • Non-inductive: 0.08µH
  • Tin/lead alloy terminations
  • Aerospace

Applications

  • Aerospace
  • Test and Measurement
  • Non-compliant

Description

This FRSM ultra high precision resistor series from VFR is tested to EEE-INST-002 and MIL-PRF-55342, specifically for space and military applications. The 303265 series offers a resistance range between 10Ω and 35kΩ, in a small 2010 surface-mount package with wrap-around terminations. These resistors utilise VFR newest Z-1 Bulk Metal® foil resistor technology for improved load life stability (up to 25ppm) and higher working temperatures (balanced temperature characteristics over a range from -55°C to +150°C). They have nominal temperature coefficients of resistance of ±0.2ppm/°C typical between -55°C to +125°C (+25°C reference) with tolerances available down to ±0.01% between 250Ω and 35kΩ.

  • Ultra high precision wrap-around bulk foil chip resistor
  • EEE-INST-002 and MIL-PRF-55342 tested for space and military applications
  • Available in any resistance between 10Ω and 35kΩ
  • 2010 package
  • Tolerances as low as ±0.01% over the resistance range of 250Ω up to 35kΩ
  • Power coefficient “ΔR due to self heating” of 5ppm at rated power
  • TCR as low as ±0.2ppm/°C between -55° and +125°C, +25°C ref.
  • Voltage rating 102V
  • Power rating of 0.3W at +70°C
  • Load life stability of ±0.02% after 2000h at 70°C at rated power
  • Thermal stabilization time <1s (nominal value achieved within 10ppm of steady state value)
  • Electrostatic discharge (EDS) of at least to 25kV
  • Short time overload of ≤0.005% typical
  • Rise time as low as 1ns, effectively no ringing
  • Current noise of <0.010µVRMS/V of applied voltage (<-40dB)
  • Non-hot spot design
  • Terminal finishes available: tin/lead alloy



Non-standard technical requirements such as resistance outside of standard range, higher temperature application up to 240°C or better performance characteristics are available upon request. Please contact us for further information and availability.



The below table gives full specifications for each resistor model available including the 303265 series:

FRSM Z-1 resistors` Specifications



Specifications

Weight 0.02700 kg

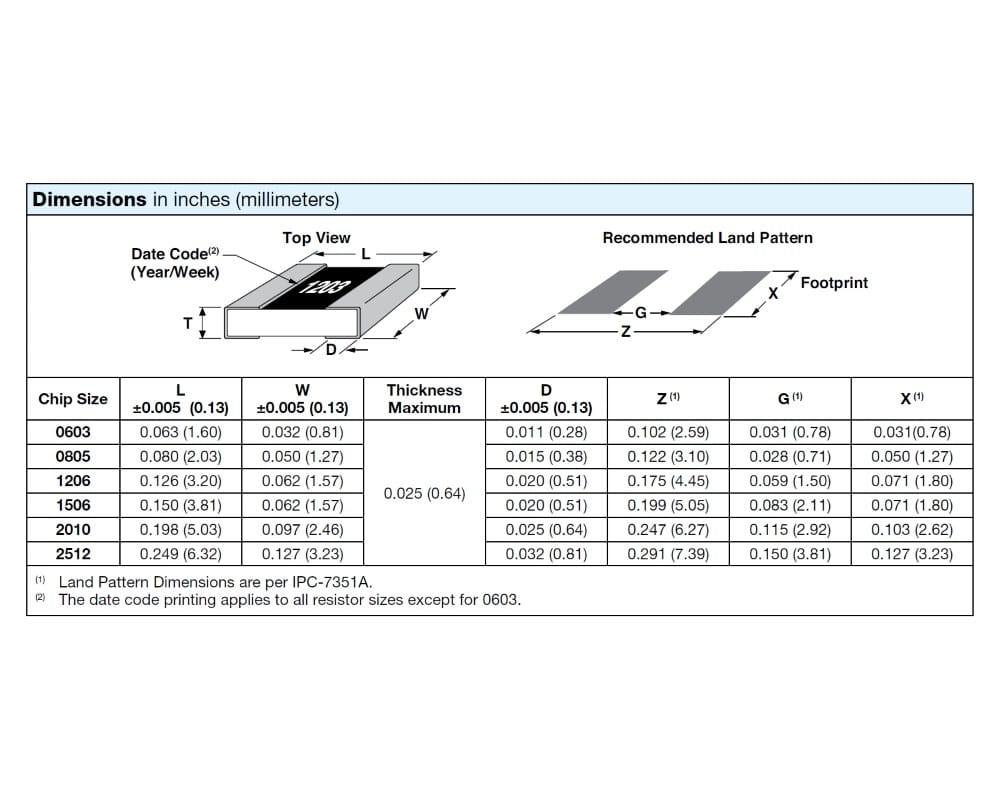

Dimensions 5.03 × 2.46 × 0.64 mm
Minimum Resistance

Maximum Resistance

Series / Model

Tolerance

, , , , , ,

Power Rating

Additional Features

Ultra high precision FRSM wrap-around chip resistor EEE-INST-002 and MIL-PRF-55342 tested for space and military applications2010 package sizeVoltage rating of 102VExcellent stability, noise and ESD

Resistance Value

, , , ,

Temperature Coefficient

, , ,

Packaging

,

Package / Size
