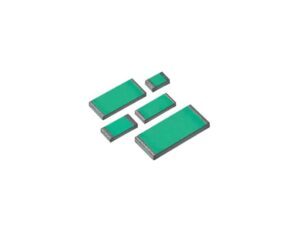

This FRSM ultra high precision resistor series from VFR is tested to EEE-INST-002 and MIL-PRF-55342, specifically for space and military applications. The 303266 series offers a resistance range between 10Ω and 75kΩ, in a small 2512 surface-mount package with wrap-around terminations. These resistors utilise VFR newest Z-1 Bulk Metal® foil resistor technology for improved load life stability (up to 25ppm) and higher working temperatures (balanced temperature characteristics over a range from -55°C to +150°C). They have nominal temperature coefficients of resistance of ±0.2ppm/°C typical between -55°C to +125°C (+25°C reference) with tolerances available down to ±0.01% between 250Ω and 75kΩ.
Non-standard technical requirements such as resistance outside of standard range, higher temperature application up to 240°C or better performance characteristics are available upon request. Please contact us for further information and availability.
The below table gives full specifications for each resistor model available including the 303266 series:
Weight | 0.04000 kg |
---|---|
Dimensions | 0.64 x 3.23 x 6.32mm |
Maximum Resistance | 75kΩ |
Minimum Resistance | 10Ω |
Package / Size | |
Packaging | Tape & Reel, Waffle Pack |
Power Rating | |
Resistance Value | Custom (10Ω – 25Ω), Custom (25Ω – 50Ω), Custom (50Ω – 100Ω), Custom (100Ω – 250Ω), Custom (250Ω – 75kΩ) |
Series / Model | |
Temperature Coefficient | |
Tolerance |
SKU | Packaging | Resistance Value | Tolerance |
---|---|---|---|
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (100Ω - 250Ω) | ±0.05% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (100Ω - 250Ω) | ±0.05% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (100Ω - 250Ω) | ±0.1% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (100Ω - 250Ω) | ±0.1% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (100Ω - 250Ω) | ±0.25% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (100Ω - 250Ω) | ±0.25% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (100Ω - 250Ω) | ±0.5% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (100Ω - 250Ω) | ±0.5% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (100Ω - 250Ω) | ±1% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (100Ω - 250Ω) | ±1% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (10Ω - 25Ω) | ±0.5% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (10Ω - 25Ω) | ±0.5% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (10Ω - 25Ω) | ±1% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (10Ω - 25Ω) | ±1% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (250Ω - 75kΩ) | ±0.01% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (250Ω - 75kΩ) | ±0.01% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (250Ω - 75kΩ) | ±0.02% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (250Ω - 75kΩ) | ±0.02% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (250Ω - 75kΩ) | ±0.05% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (250Ω - 75kΩ) | ±0.05% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (250Ω - 75kΩ) | ±0.1% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (250Ω - 75kΩ) | ±0.1% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (250Ω - 75kΩ) | ±0.25% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (250Ω - 75kΩ) | ±0.25% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (250Ω - 75kΩ) | ±0.5% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (250Ω - 75kΩ) | ±0.5% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (250Ω - 75kΩ) | ±1% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (250Ω - 75kΩ) | ±1% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (25Ω - 50Ω) | ±0.25% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (25Ω - 50Ω) | ±0.25% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (25Ω - 50Ω) | ±0.5% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (25Ω - 50Ω) | ±0.5% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (25Ω - 50Ω) | ±1% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (25Ω - 50Ω) | ±1% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (50Ω - 100Ω) | ±0.1% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (50Ω - 100Ω) | ±0.1% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (50Ω - 100Ω) | ±0.25% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (50Ω - 100Ω) | ±0.25% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (50Ω - 100Ω) | ±0.5% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (50Ω - 100Ω) | ±0.5% |
Vishay Foil Resistors FRSM 303266 Series | Tape & Reel | Custom (50Ω - 100Ω) | ±1% |
Vishay Foil Resistors FRSM 303266 Series | Waffle Pack | Custom (50Ω - 100Ω) | ±1% |
