VPG MP Series

Product Features

  • Ultra-precision surface-mount resistor
  • Moulded package with J-lead terminations
  • Resistance range from 30ฮฉ to 30kฮฉ
  • Tolerances as low as ยฑ0.05%
  • TCR of ยฑ5 ppm/ยฐC or ยฑ10 ppm/ยฐC
  • Power rating of 0.1W (at +125ยฐC)
  • Temperature range from -65ยฐC up to +175ยฐC
  • Compliant

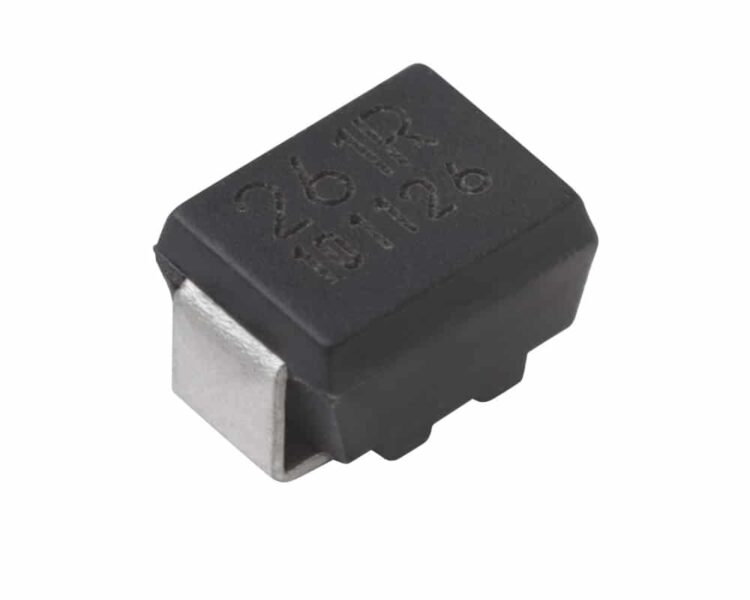

The MP ultra-precision surface-mount resistor series from Alpha Electronics offers a wide resistance range from 30ฮฉ up to 30kฮฉ with tight tolerances down to +0.05% (100ฮฉ to 30kฮฉ), all in a small surface-mount package. By utilising Alpha’s Bulk Metalยฎ foil resistor technology, they are able to produce resistors with low-temperature coefficients and excellent long-term stability. The Alpha MP series J-lead terminals provide flexibility compared to standard fixed surface-mount resistors as the resistive element internally is mechanically isolated from the leads via gold wire-bonding. The series exhibits excellent high-frequency characteristics thanks to their Bulk Metalยฎ foil resistor technology, making them suitable for the most demanding precision applications.

  • Surface-mount ultra-precision resistor
  • Moulded package with J-lead terminations
  • Resistance values from 30ฮฉ to 30kฮฉ
  • Tolerance of ยฑ0.05% or ยฑ0.1% (dependant on resistance values)
  • TCR of ยฑ5 ppm/ยฐC or ยฑ10 ppm/ยฐC (dependant on resistance values)
  • Temperature range from -65ยฐC up to +175ยฐC
  • Maximum working voltage of 50V
  • Maximum working current of 0.35A
  • Power rating of 0.1W (at +125ยฐC)



Typical applications for the MP ultra-precision surface-mount resistor series include:

  • Sceintific instrumentation
  • Test & Measurement equipment

Alpha Electronics MP Series Specification Table

AttributesValue
Resistance value30ฮฉ to 30kฮฉ
Toleranceยฑ0.05% / ยฑ0.1%
TCRยฑ5ppm/ยฐC or ยฑ10ppm/ยฐC (-55 to +125ยฐC)
Temperature range-65ยฐC to +175ยฐC
Power rating (at +70ยฐC)0.1W
Maximum voltage50V

Alpha Electronics are manufacturers of some of the most stable and precise resistors on the market. As part of the VPG Foil Resistors product group, the Alpha Electronics brand is globally rewarded for the accuracy and reliability of its Bulk Metalยฎ Foil technology resistors. Alpha Electronics has been living the conviction globally known to engineers for consistently delivering the highly desirable characteristics of โ€œStability, Accuracy and Reliabilityโ€. Please visit https://www.alpha-elec.co.jp for more information.

Specifications

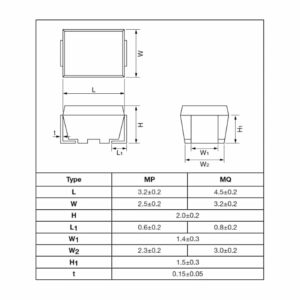

Dimensions 2.00 x 2.50 x 3.20mm
Resistance Value

, , , , , , , , , , , , , , , , , , , , , , , , , ,

Product Type

Minimum Resistance

30ฮฉ

Maximum Resistance

30kฮฉ

Tolerance

,

Power Rating

Temperature Coefficient

,

Voltage Rating

Current Rating

Temperature Range (ยฐC)

-65 to +175ยฐC

Package / Size

Series / Model

Product Variations

SKUResistance ValueToleranceTemperature CoefficientSeries / Model
Alpha MP (100ฮฉ - 30kฮฉ)Custom (100ฮฉ - 30kฮฉ)ยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP (30ฮฉ - 100ฮฉ)Custom (30ฮฉ - 100ฮฉ)ยฑ0.1%ยฑ10 ppm/ยฐC
Alpha MP 1K8001.8kโ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 100R0100โ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 10K0010kโ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 120R0120โ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 15K0015kโ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 180R0180โ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 18K0018kโ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 1K0001kโ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 2K2002.2kโ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 200R0200โ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 20K0020kโ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 25K0025kโ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 2K0002kโ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 300R0300โ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 30K0030kโ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 30R0030โ„ฆยฑ0.1%ยฑ10 ppm/ยฐC
Alpha MP 350R0350โ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 3K0003kโ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 5K6005.6kโ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 500R0500โ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 50R0050โ„ฆยฑ0.1%ยฑ10 ppm/ยฐC
Alpha MP 5K0005kโ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 6K8006.8kโ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 900R0900โ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
Alpha MP 9K0009kโ„ฆยฑ0.05%ยฑ5 ppm/ยฐC
