| Weight | 0.00000 kg |
|---|---|
| Dimensions | 0.40 x 1.22 x 2.00mm |
| Attenuation | 0dB, 1dB, 2dB, 3dB, 4dB, 5dB, 6dB, 7dB, 8dB, 9dB, 10dB |
| Impedance | 50Ω |
| Operating Frequency | 30GHz |
| Power Rating | |
| Series / Model | |
| Tolerance |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.
The ATS2012 series of thin-film high-frequency chip attenuators from Susumu offer designers a high-frequency operation up to 30GHz in a miniature surface-mount 0805 chip size. These attenuators are available with various circuit and pin arrangements as well as offering an internal circuit which is specially designed for 0-10dB attenuation.
The Susumu ATS2012 series of thin-film high-frequency chip attenuators are ideal for the following applications:

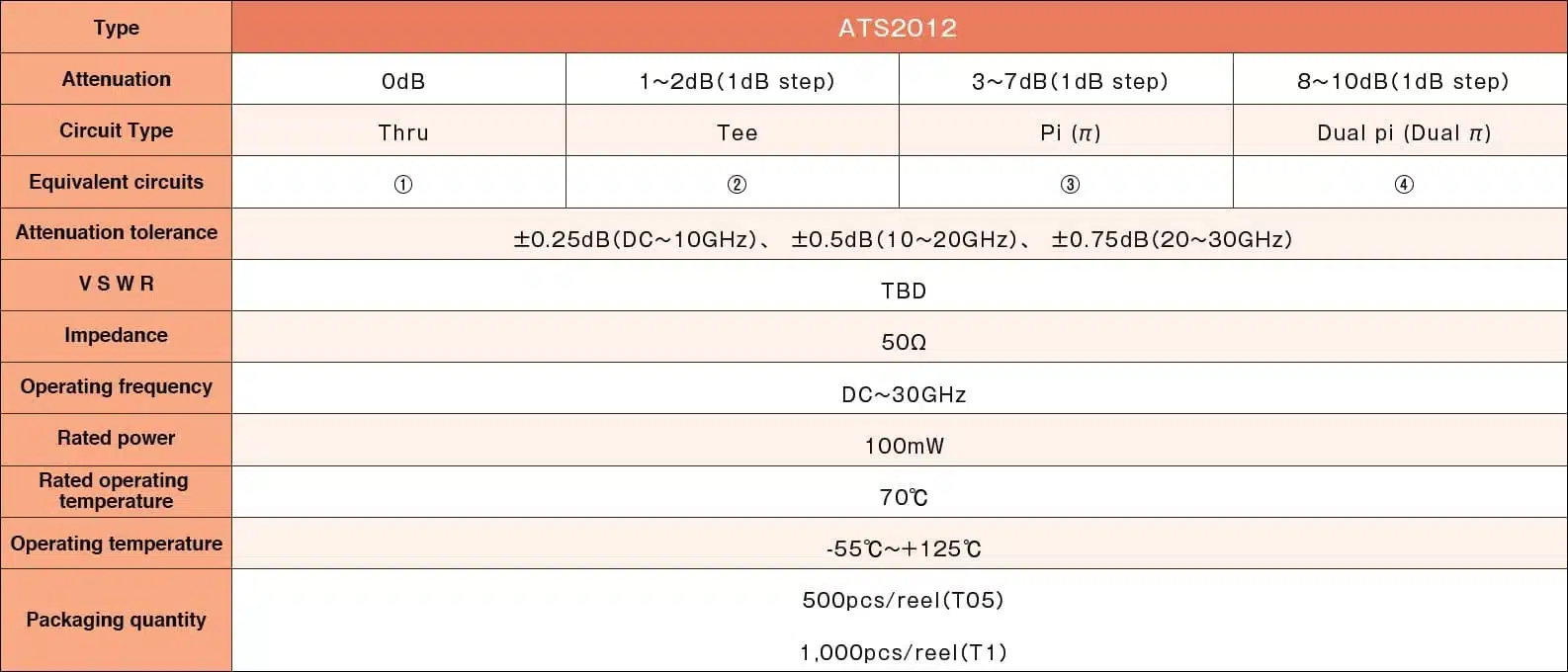

The below table gives the full specifications of the Susumu ATS2012 attenuator series:
