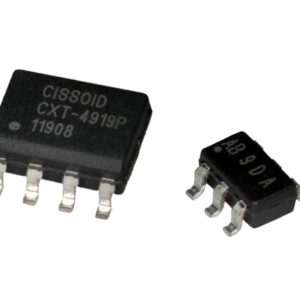

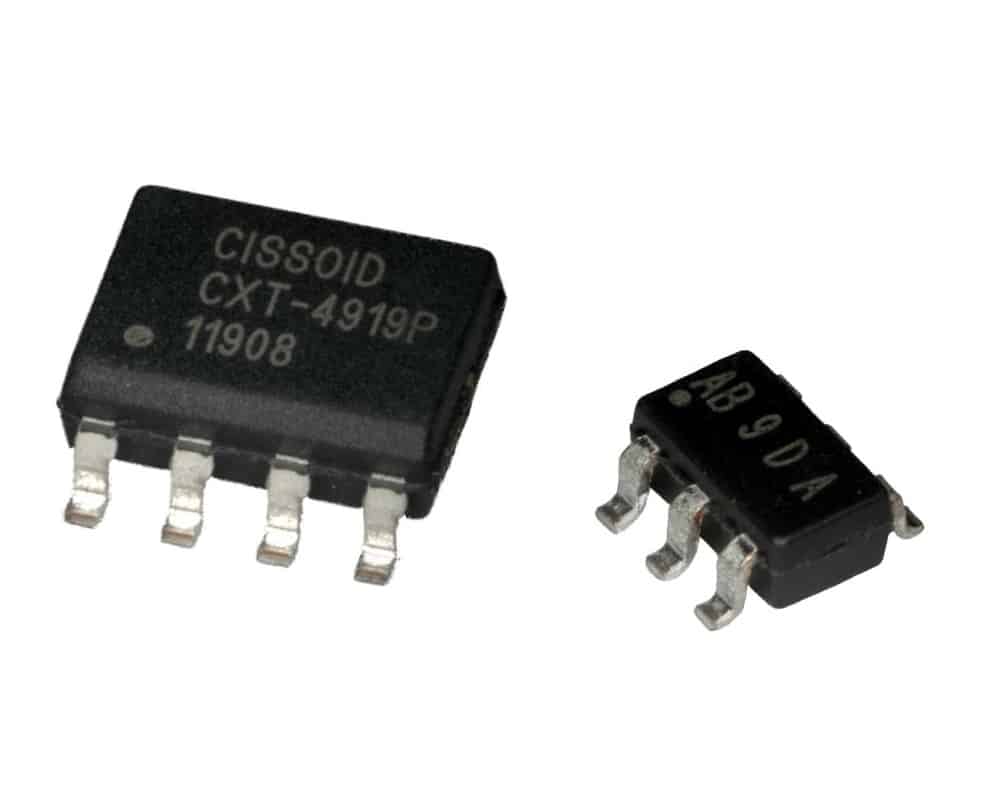

Cissoid CXT-741Gxx

Cissoid CXT-741Gxx
Cissoid CXT-741Gxx
Cissoid CXT-741Gxx
Cissoid CXT-741Gxx
  • Cissoid

Product Features

  • High temperature logic gates
  • Exceeds AEC-Q100 Grade 0 requirements (qualification pending)
  • 16mA output drive current
  • EDS: 2000V HBM or 200V MM
  • CMOS Low power consumption
  • Automotive

Applications

  • Automotive

Description

The CXT-741Gxx series of high-temperature logic gates from Cissoid is part of their newly introduced CXT range of ICs designed specifically for automotive applications. These configurable devices enable 13 different logic functions: INV, BUFFER, AND, AND with inverted input, NAND, NAND with inverted input, OR, NOR, NOR with inverted input, XOR, NXOR, MUX and D Flip-Flop (please select the model covering the functions required). The CXT-741Gxx series requires voltage input of 1.65V to 5.5V, but it is compatible with 3.3V or 5V input sources. They also feature Schmitt trigger inputs for high immunity to slow changing signals and CMOS low power consumption, and are delivered in a miniature SOT-23 6-pin package at only 3.0×1.7mm. The operating temperature of CXT series of up to 175°C is beyond the requirements of automotive standard AEC-Q100 Grade 0.

  • High temperature automotive logic gates
  • Input voltage of 1.65V to 5.5V, compatible with 3.3V and 5V input sources
  • 13 different logic functions: INV, BUFFER, AND, AND with inverted input, NAND, NAND with inverted input, OR, NOR, NOR with inverted input, XOR, NXOR, MUX and D Flip-Flop
  • Output drive current of up to 16mA
  • Low power consumption
  • Schmitt trigger inputs for high immunity to slow changing signals
  • Temperature range of -55°C to 175°C
  • Ultraminiature SOT-23-6 package
  • AEC-Q100 Grade 0 & PPAP capable (full qualification pending, please contact us for current status)

Typical Applications for the CXT-741Gxx series from Cissoid include:

  • High power density converters
  • Motor drivers
  • Gate drivers
  • Sensor modules
  • Electronic Control Units (ECU)
  • Automotive & Industrial

The below table gives the full specifications of the Cissoid CXT-741Gxx logic gates:

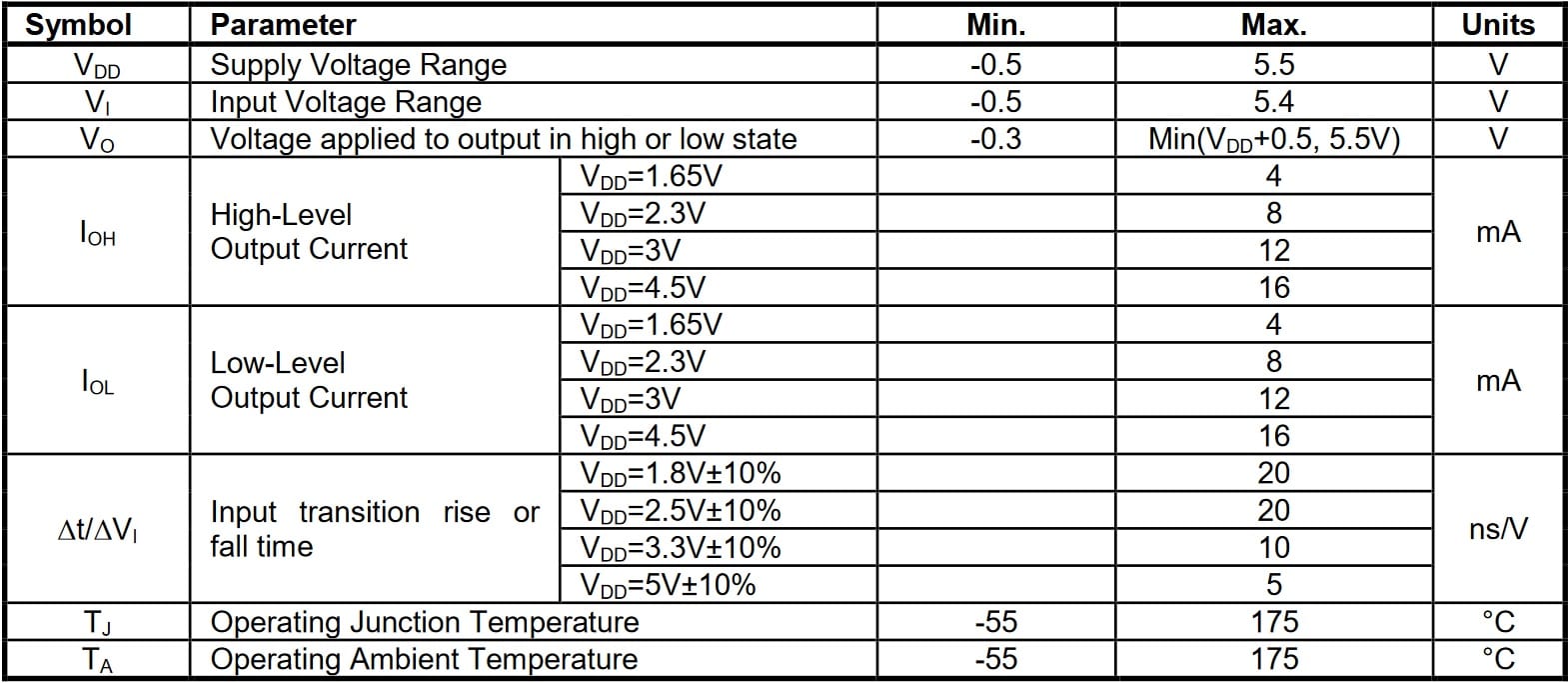

Cissoid CXT-741Gxx Specifications


Specifications

Weight 0.01000 kg

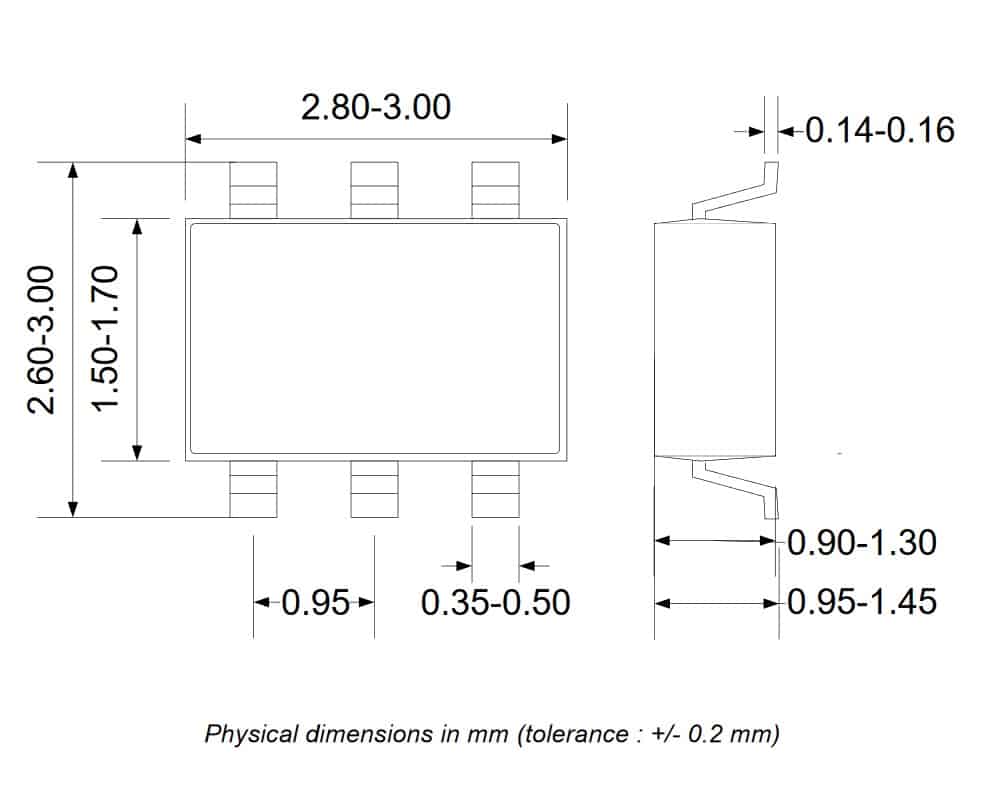

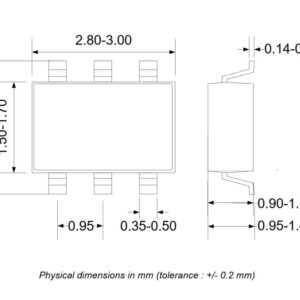

Dimensions 3.00 × 1.70 × 1.30 mm
Model / Part Number

, , ,

Series / Model

Temperature Range (°C)

Supply Voltage

Package / Size

RoHS Compliant Product – Cissoid

This product is available fully compliant to the RoHS EU directive 2002/95/EC.

Cissoid CXT-741Gxx Series Ordering Info

The CXT-741Gxx series of high temperature logic gates is available in various configurations and supporting different logic functions. Please refer to the full datasheet, specification tab or contact us for more information.

Below is a list of full part numbers available under CXT-741Gxx series:

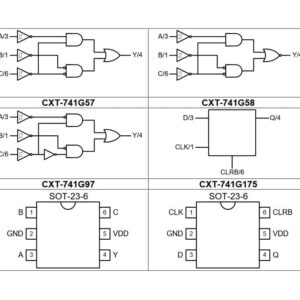

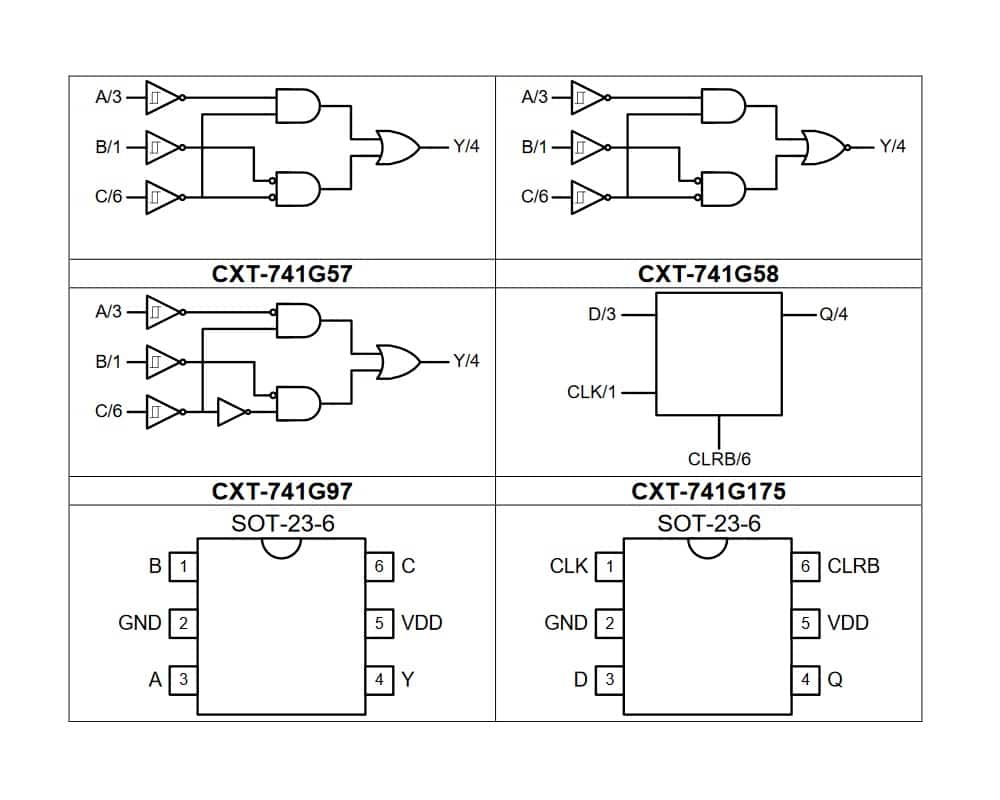

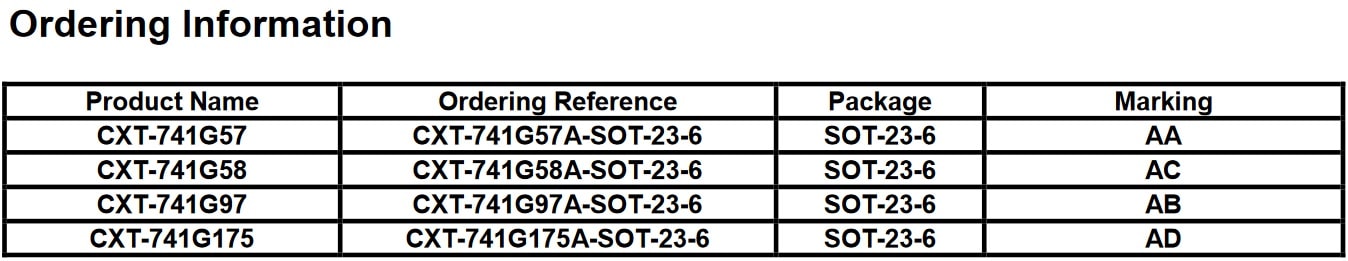

CXT-741Gxx logic gates ordering information

Cissoid CXT-741Gxx Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Cissoid CXT-741Gxx series high temperature automotive logic gate datasheet
Cissoid voltage regulator short-circuit protection and associated potential startup issue application note
Selecting the correct Cissoid regulator depending on the application – application note
Cissoid power dissipation considerations during short circuit conditions application note
