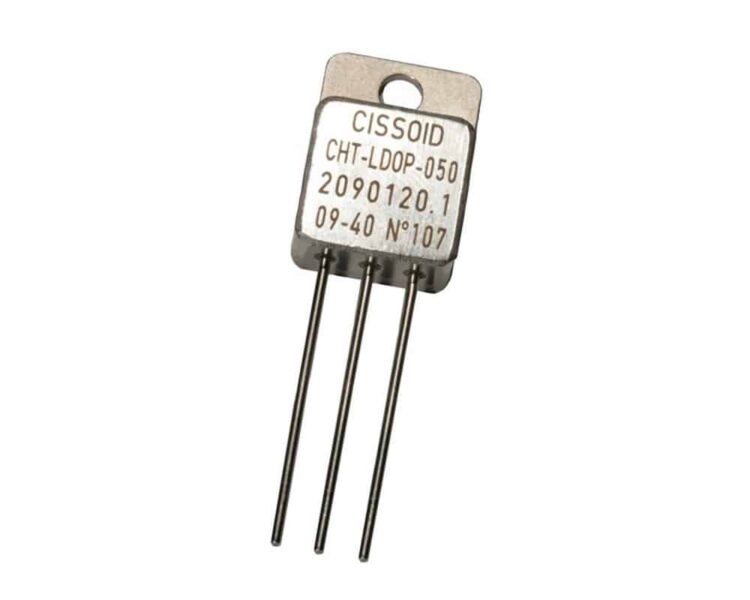

Cissoid CHT-LDOP Series

  • Cissoid

Product Features

  • High temperature low-dropout linear voltage regulator
  • Maximum output current of 1A at +225°C
  • Quiescent current of 3mA
  • Validated at +225°C for 43,800 hours (and still on-going)

Applications

  • Automotive
  • Military
  • Oil & Gas

Description

The Helios CHT-LDOP high temperature, low-dropout linear voltage regulator series from Cissoid offers an output voltage range between 2.5V and 15V. These voltage regulators are compatible with high temperature environments with a typical operation temperature range from -55°C to +225°C. The LDOP series from Cissoid has a minimum dropout voltage of 1V  for load currents lower than 400mA and 2V with a 1A load current at +225°C, with a total accuracy of ±2% and a maximum output voltage  temperature drift of 80ppm.

  • High temperature, low-dropout linear voltage regulator
  • Voltage reference values of 2.5V, 3.3V, 5V, 5.5V, 5.6V, 7.5V, 9V, 10V, 12V, 13V and 15V
  • Dropout voltage of 1V to 20V at lower than 400mA
  • Dropout voltage of 2V to 20V at 1A
  • Quiescent current consumption of 3mA
  • Maximum output current of 1A at 225°C
  • Total accuracy of ±2%
  • Typical operating temperature range −55°C to +225°C (operational up to 300°C)
  • Maximum drift with temperature 80ppm
  • Validated at +225°C for 43800 hours (and still on-going)

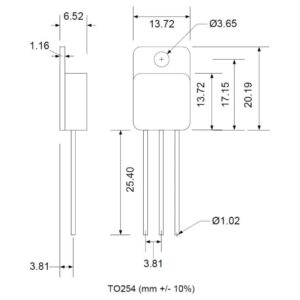

  • Available in TO-254 package and bare die available on request

Typical Applications for the CHT-LDOP series from Cissoid include:

  • Well logging
  • Automotive
  • Aeronautics
  • Aerospace

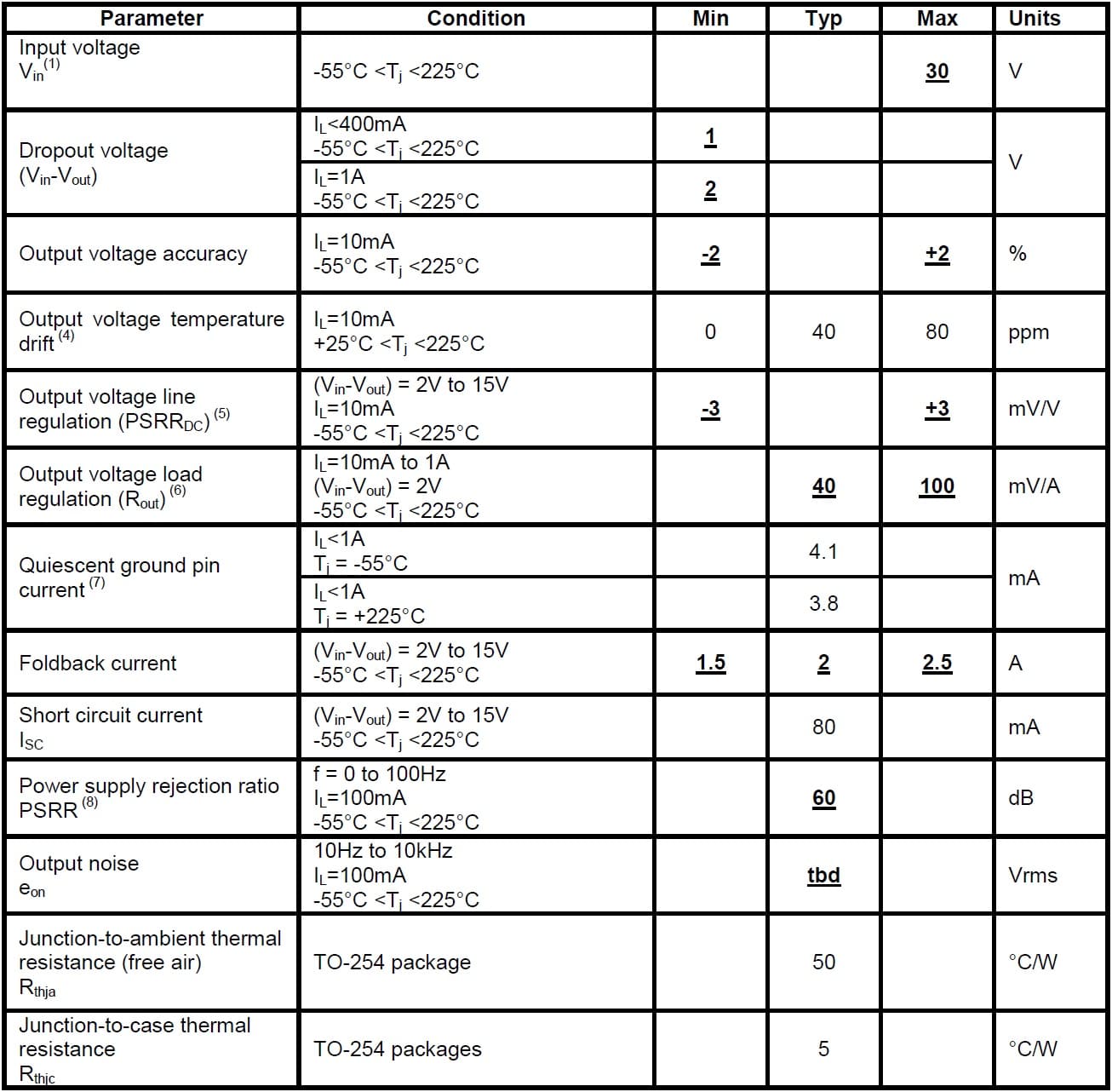

The below table gives the full specifications of the Cissoid CHT-LDOP series:

Cissoid CHT-LDOP Specifications

1. The maximum input voltage Vin is Vout +20V or 30V, whichever is less

2. Above +225°C (Tj), a minimum load current of few mA could be required

3. Max power dissipation depends on packaging

4. ppm are defined as 1e-6x[d(Vout)/d(T)]/Vout. For a nominal output of 15V, 40ppm corresponds to 600µV/°C

5. Defining “x” as the nominal voltage, the line regulation is better than x/5 mV/V

6. This includes the packaging parasitic resistance for TO-254 packages

7. Defining “x” as the nominal voltage, the typical quiescent current at 2V dropout can be approximated as 2.95+x/13 in mA @ -55°C and 2.65+x/13 in mA at 225°C

8. Preliminary data


Specifications

Weight 0.00000 kg
Dimensions 13.72 × 6.52 × 45.59 mm
Accuracy

Additional Features

High temperature low-dropout linear voltage regulatorMaximum output current of 1A at +225°CQuiescent current of 3mAValidated at +225°C for 43,800 hours (and still on-going)

Series / Model

Temperature Range (°C)

Output

, , , , , , , , , ,

Dropout Voltage

Output Voltage T° Drift (Maximum)

Voltage Rating

, , , , , , , , , ,

RoHS Compliant Product – Cissoid

This product is available fully compliant to the RoHS EU directive 2002/95/EC.

Cissoid CHT-LDOP Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Cissoid CHT-LDOP high temperature, low-dropout voltage regulator datasheet
Cissoid voltage regulator short-circuit protection and associated potential startup issue application note
Selecting the correct Cissoid regulator depending on the application – application note
Cissoid power dissipation considerations during short circuit conditions application note





VIDEOS
Cissoid – High temperature and extended lifetime semiconductors

Since 2000, CISSOID is the leader in high temperature semiconductor solutions, delivering standard products and custom solutions for power management, power conversion and signal conditioning in extreme temperature and harsh environments. CISSOID provides high reliability products guaranteed from -55°C to +225°C and commonly used outside that range, from cryogenic lows to upper extremes.

VIDEOS
Cissoid – High temperature and extended lifetime semiconductors

Since 2000, CISSOID is the leader in high temperature semiconductor solutions, delivering standard products and custom solutions for power management, power conversion and signal conditioning in extreme temperature and harsh environments. CISSOID provides high reliability products guaranteed from -55°C to +225°C and commonly used outside that range, from cryogenic lows to upper extremes.
