NVE DC001-10E

  • NVE

Product Features

  • Surface-mount high voltage, low power regulator
  • Excellent immunity to transients and ESD
  • Small, low-profile TDFN6 surface mount package
  • Solid state reliability
  • Meets 42V automotive standards

Applications

  • Automotive
  • Compliant

Description

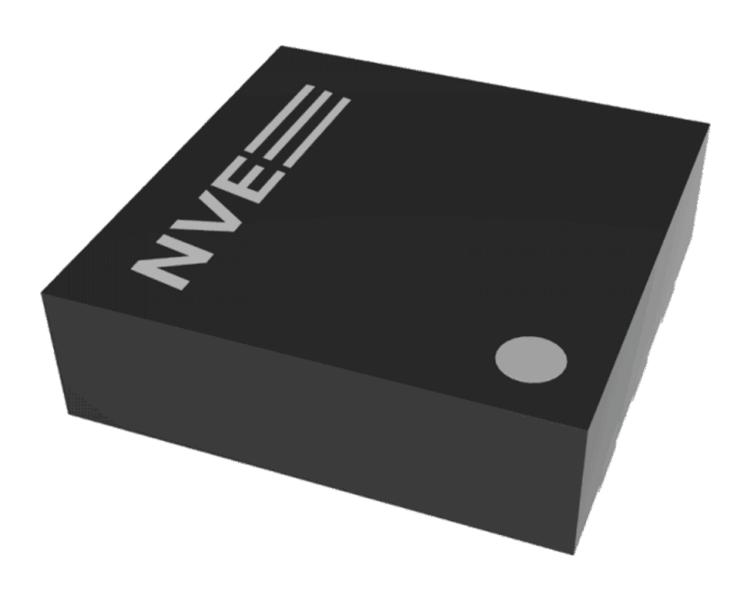

The NVE DC001-10E series voltage regulator ICs from NVE are designed for use in high voltage, low current applications, providing a wide input voltage range from 4.5V to 36V, with a typical regulated output of 3.3V. The DC series from NVE protect the sensitive electronic components downstream, while providing a stable regulated supply voltage. Rated for high temperature operation up to +170°C. The DC001 voltage regulator also meets 42V automotive standards and the low-profile TDFN6 package features an exposed die attach pad for direct heat sinking to the circuit board.

  • Surface-mount high voltage, low power voltage regulator
  • Input voltage range from 4.5V to 36v
  • Regulated output Voltage between 3V and 3.6V
  • Regulated output current 0.02A
  • Reverse battery protection of -60V
  • Excellent immunity to transients and ESD
  • Temperature range from -40°C to +170°C
  • Small, low profile TDFN6 package

The NVE DC001-10E high voltage, low power voltage regulators are ideal for the following applications:

  • Industrial Sensors
  • Industrial Controls
  • Automotive Sensors
  • Automotive Controls

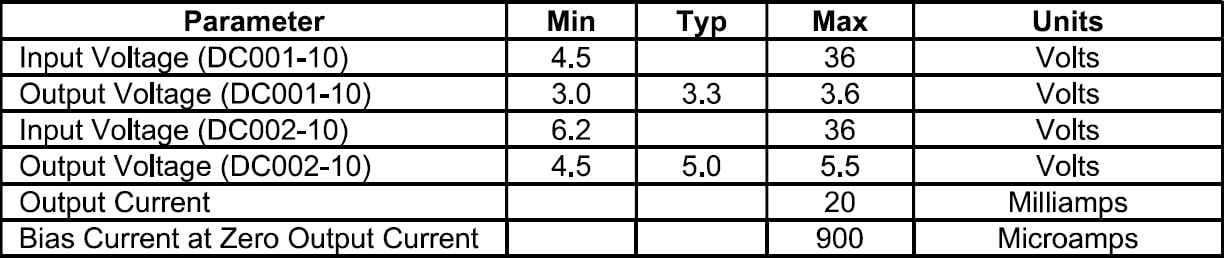

The below table gives the full specifications of the NVE DC series including the DC001-10E

NVE DC001-10E Specifications


Specifications

Weight 0.00000 kg
Dimensions 0.80 x 2.50 x 2.50mm
Temperature Range (°C)

Series / Model

Supply Voltage

Regulated Output Voltage

Regulated Output Current

Reverse Battery Voltage
