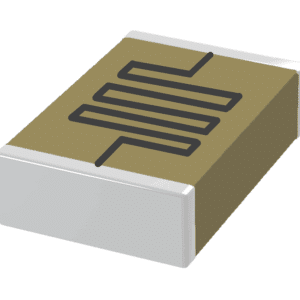

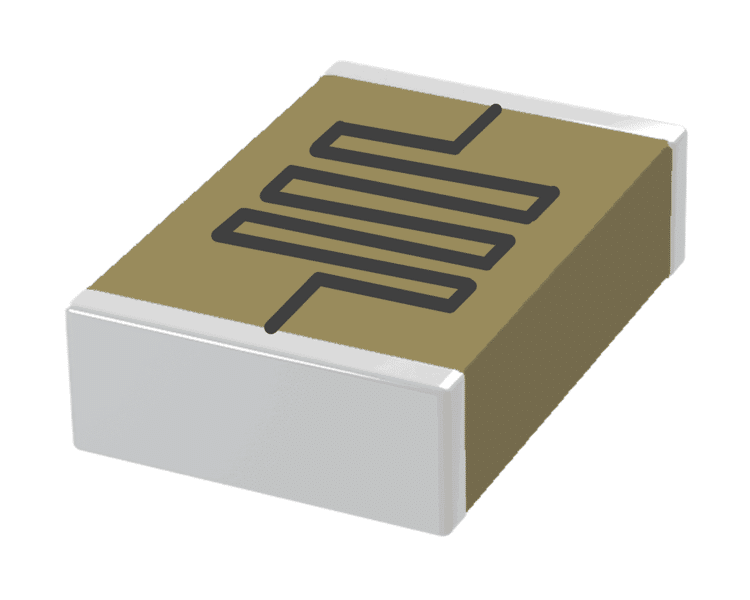

SRT Microcéramique SMD Pulse Energy Capacitors

The SRT Microcéramique High Voltage SMD Pulse Energy Capacitor features a non-piezoelectric ceramic dielectric, offering high stability and a consistent capacitance value, even under demanding electrical conditions. Designed to operate in environments with temperatures up to 200°C, this capacitor is well-suited for harsh or thermally intensive applications. It is available in stacked configurations with J, L, or M lead options to accommodate different mounting and layout requirements. Depending on the configuration, the overall height is adjusted — with SRMC versions (1 or 2 chips) adding 1.8 mm, and SRHS (1 chip) or SRHD (2 chips) versions adding 1.3 mm to the base chip height. An optional thick-film bleed resistor with a protective glass cover can be included for controlled discharge. These capacitors are engineered for high-current, short-duration pulse performance and have been tested to withstand over one million pulse cycles without performance degradation, ensuring long-term reliability and durability in energy-intensive applications.

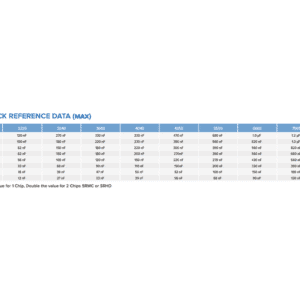

Engineered using Class I N2T ceramic dielectrics, this series balances high capacitance values with robust voltage endurance. Capacitance ranges from 12nF to 1.2µF, and voltage ratings extend from 1000V to 3000V, depending on the case size and configuration. These capacitors are optimized for pulse energy absorption, offering exceptional thermal and electrical stability during high-energy discharges.

Key Features for SMD Pulse Energy Capacitor:

• Capacitance range: 12nF to 1.2µF
• Voltage ratings: 1000V to 3000V
• Non piezo pulse ceramic, stable, high constant
• Temperature up to 200°C
• Available in stack with J L M Leads
• SRMC 1 or 2 chips : add 1.8mm to chips height
• SRHS 1 chip, SRHD 2 chips : add 1.3mm to chips height
• Thick film bleed resistor with glass cover in option
• High current short duration pulse

Typical Applications for the SMD Pulse Energy Capacitor:

• Pulse Power Circuits: Laser drivers, ignition systems, defibrillators
• Medical Devices: Energy delivery systems such as imaging or therapy equipment
• Power Electronics: Snubber networks, power inverters, and converters
• Industrial Equipment: High-energy switching and discharge circuits
• Defense & Aerospace: Pulsed radar systems, electronic countermeasures
• HVAC & Lighting Systems: High-voltage control and pulse start applications

SRT Microcéramique , based in France, is a leading manufacturer of multilayer ceramic capacitors. Known for its precision and reliability, SRT Microcéramique supplies high-performance components to industries with demanding requirements. Visit SRT Microceramique for more information.
