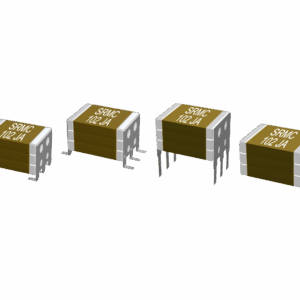

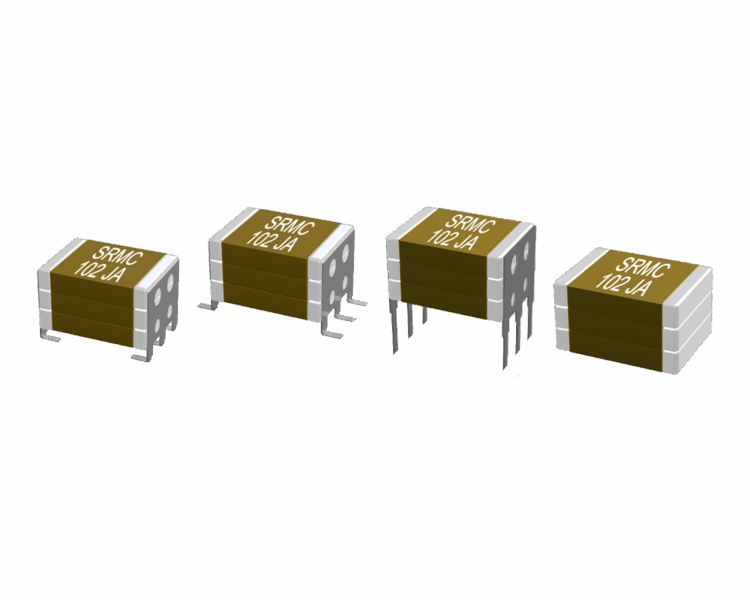

SRT Microcéramique Stacked Capacitor High Voltage 3kV

The SRT Microcéramique Stacked High Voltage Capacitor Series represents a specialized solution for applications that demand high voltage handling, excellent thermal stability, and compact form factors. These capacitors are constructed by stacking multiple multilayer ceramic capacitor (MLCC) chips in parallel, thereby achieving significantly higher capacitance values and energy densities in a single component compared to conventional MLCCs. This configuration also helps minimize equivalent series resistance (ESR) and equivalent series inductance (ESL), making these capacitors especially well-suited for high-frequency and high-pulse applications.

The series supports a wide voltage range from 1kV to 10kV, and capacitance values can span from 12pF up to 39µF depending on the chosen dielectric and stack configuration. These devices are available with a variety of Class I (NP0, N2T) and Class II (X7R) ceramic dielectrics, offering users flexibility in terms of temperature stability, capacitance variation, and frequency response.

All SRT stacked capacitors are manufactured in France and undergo rigorous testing and screening, including a 100% burn-in at 125°C for 48 hours at elevated voltages to ensure long-term reliability. Configurations can be fully customized, including chip size, number of layers, lead style (radial or axial), encapsulation, and termination finish (e.g., solder or epoxy).

These capacitors are an ideal choice for designers working in fields such as aerospace, defence, medical electronics, and industrial power, where reliable operation under harsh conditions and compact, high-capacitance solutions are essential.

Key Features for the SRT Microcéramique Stacked Capacitors:

• Voltage Range from 1kV to 10kV
• Dielectric Options of NP0 (±30 ppm/°C), N2T (2200 ± 350 ppm/°C), and X7R (±15% with 0Vdc applied)
• Low ESR and ESL
• 100% burn-in test (48 hours at 125°C and 1.2× rated voltage)
• Stable Electrical Characteristics:
• Dissipation Factor:
  • NP0/N2T: ≤0.001 at 1Vrms and 1MHz for values ≤1000pF; ≤0.001 at 1Vrms and 1kHz for values >1000pF.
  • X7R: ≤0.025 at 1kHz.
• High Insulation Resistance:
  • At 25°C: ≥10⁵ MΩ or 1000 Ω-F (whichever is less).
  • At 125°C: ≥10⁴ MΩ or 100 Ω-F (whichever is less).
• Operating Temperature Range between -55°C and +125°C.

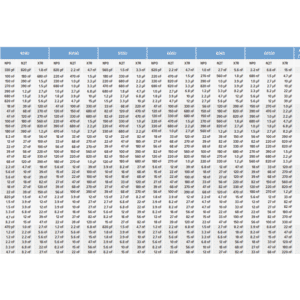

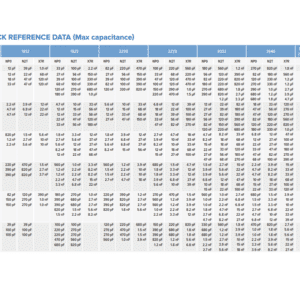

• Available in standard chip sizes from 1812 to 80150

*Custom designs available with any size, voltage, capacity, leads…

Typical Applications for the SRT Microcéramique Stacked Capacitors:

• Switch-Mode Power Supplies (SMPS): Effective for input and output filtering in high-frequency power conversion systems.
• Pulse Energy Storage: Capable of storing and delivering energy in pulsed power applications.
• Medical Imaging Equipment: Used in devices requiring stable high-voltage performance.
• Aerospace and Defense Systems: Ideal for applications demanding high reliability under extreme conditions.
• Industrial Power Electronics: Applicable in motor drives, inverters, and other industrial power systems.

SRT Microcéramique , based in France, is a leading manufacturer of multilayer ceramic capacitors. Known for its precision and reliability, SRT Microcéramique supplies high-performance components to industries with demanding requirements. Visit SRT Microceramique for more information.
