Susumu PS Series

  • Compliant
  • Susumu

Product Features

  • Surface-mount thin film power splitter
  • small design which produces less reflection and is easy to mount
  • Wide band provides less distortion of square pulses of digital signals

Applications

Description

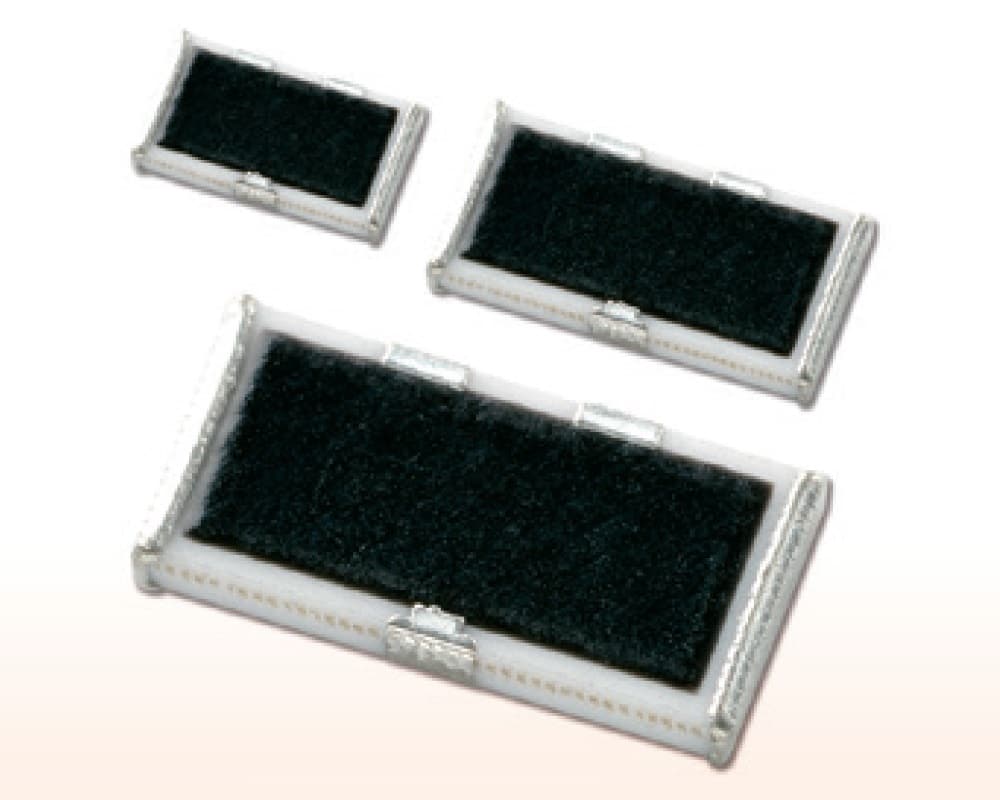

The PS series of thin film chip power splitters from Susumu offer a resistive splitter that provides a wide frequency range of DC to 20GHz. Their special design and use of thin film technology produce less reflection while also enabling small sizes along with easy mounting. The Susumu PS Series with its wide band provides less distortion of square pulses of digital signals.

  • Surface-mount thin film chip power splitters
  • Rated power of between 0.1W and 0.5W
  • Voltage standing wave ratio (VSWR) available are ≤1.3 or ≤1.5 (depending on the frequency required)
  • Operating frequency of DC to 20GHz
  • Chip sizes available are 0402, 0603, 0805, 1206 and 2010
  • Distribution deviation of <0.3dB (max frequency)
  • Temperature range of −40°C to +125°C
  • Special design and thin film technology produces less reflection
  • The wide band provides less distortion of square pulses of digital signals



The Susumu PS series of thin film chip power splitters are ideal for the following applications:

  • Communication devices
  • Wide band measuring instrumentation

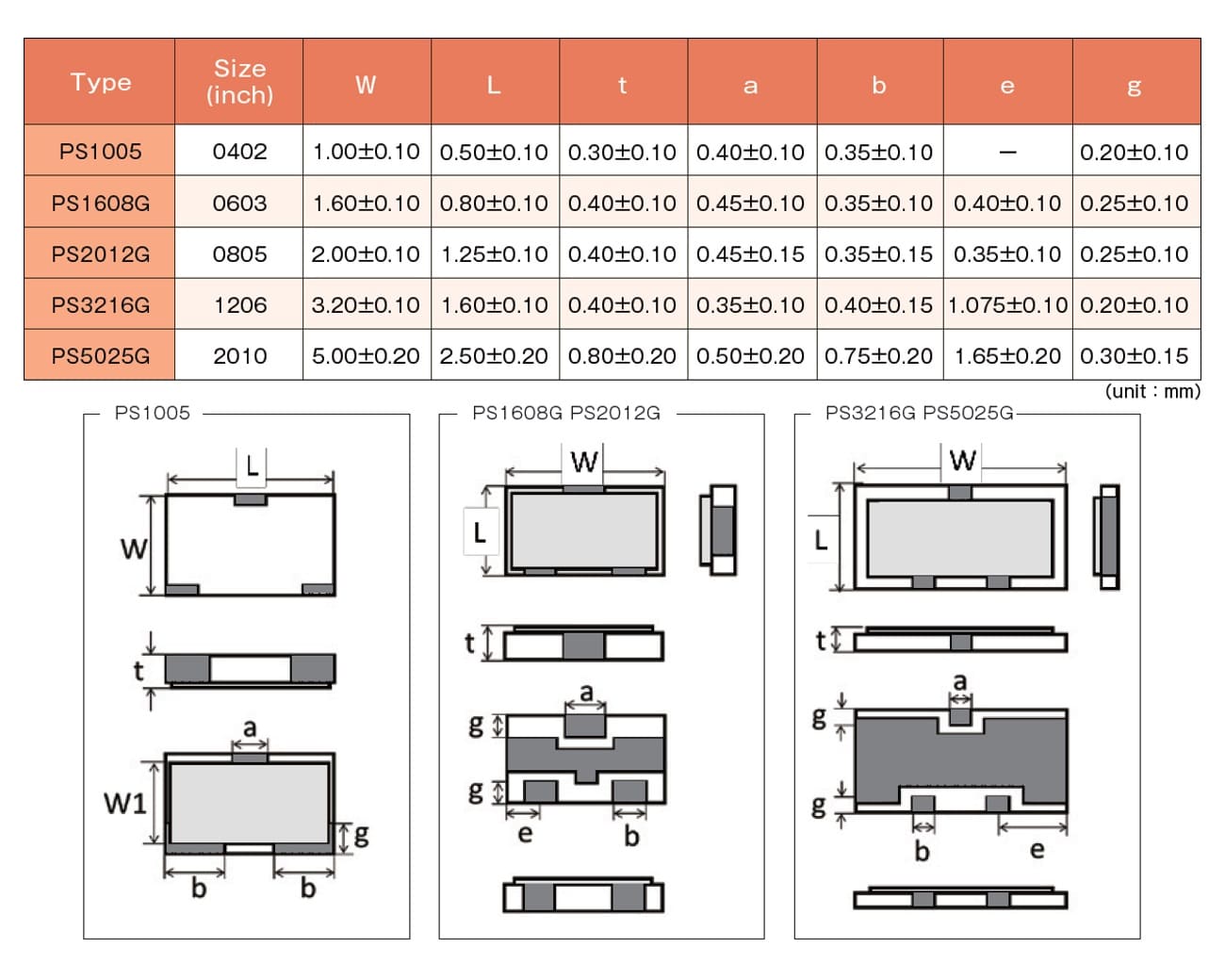

The below table gives the full specifications of the Susumu PS series:

Susumu PS Specifications
* The PS1005 series has no ground plane





Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Power Rating

, , ,

Additional Features

Surface-mount thin film power splittersmall design which produces less reflection and is easy to mountWide band provides less distortion of square pulses of digital signals

Series / Model

Operating Frequency

, , ,

Temperature Range (°C)

Package / Size

, , , ,
