| Weight | 5.00000 kg |
|---|---|

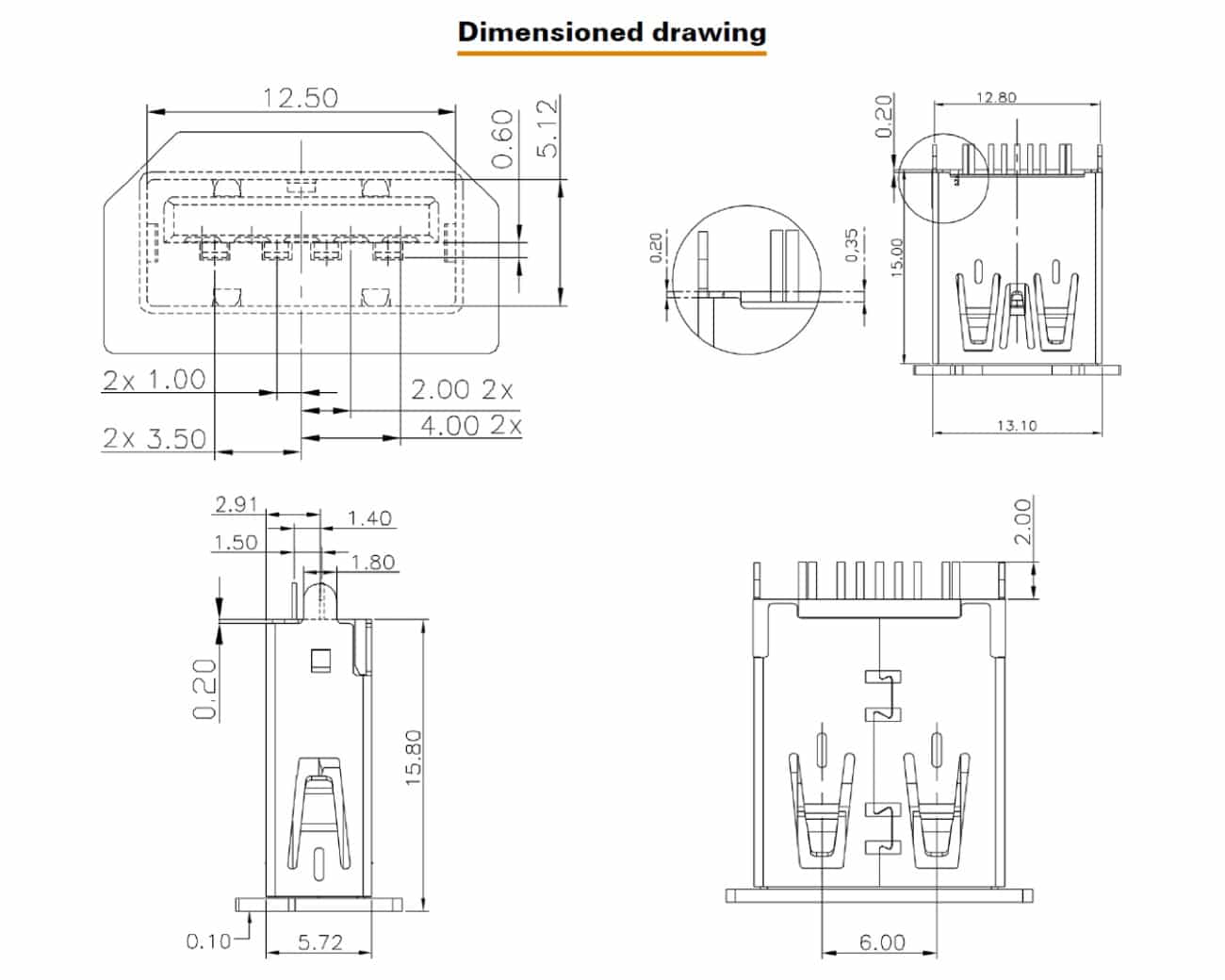

| Dimensions | 15.80 x 5.72 x 13.10mm |
| Conductor Outlet Direction | 180° |
| LED | No LEDs |
| Number of Poles | 8 |
| Series / Model | |
| Shielding | Yes |
| Termination / Connection | Type A USB 3.0 Jack |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

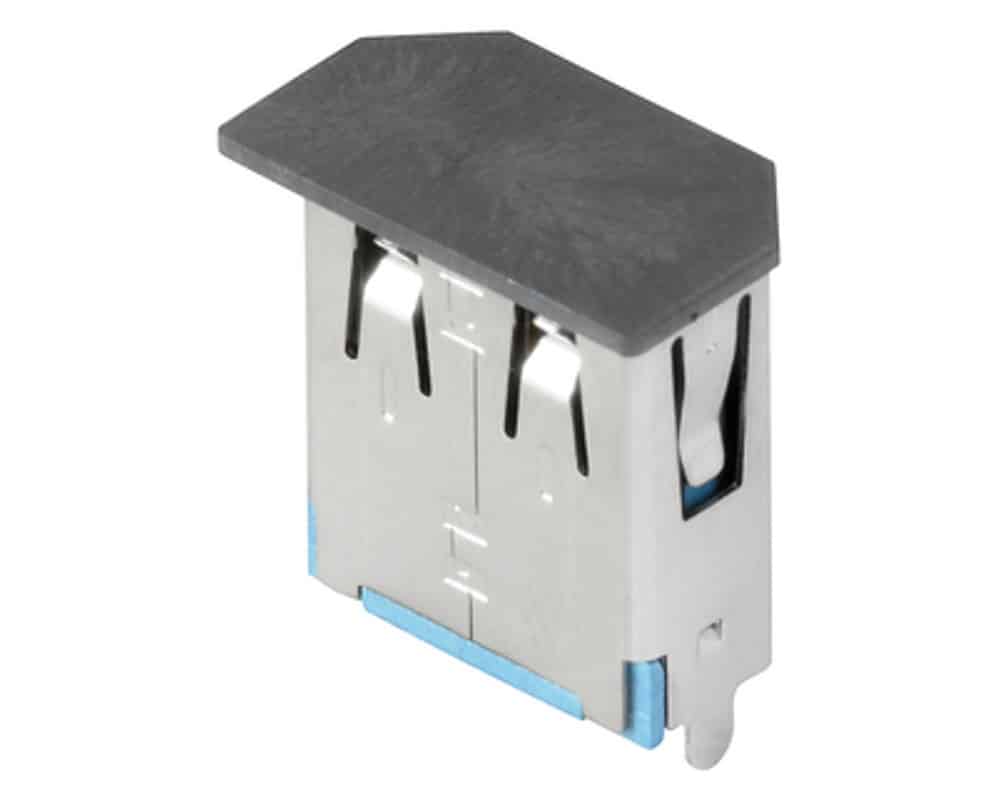

The USB3.0A R1V 2.0N3 RL BL PCB plug-in jack connectors from the Weidmüller Omnimate data range. Offers a universal serial bus 3.0 (super Speed) type A connectors which meet the requirements for high resistance and provide reliable connectivity. The USB3.0A R1V 2.0N3 RL BL by Weidmüller features 8 poles with an outgoing elbow of 180° and with an operating temperature range of −55°C to +85°C.
The Weidmüller USB jacks are characterised by compactness and simplicity. Used predominantly in:
The USB3.0A R1V 2.0N3 RL BL connector system is part of the Omnimate Data range from Weidmüller, which are packed in a tray (TY) or on a roll (tape-on reel, RL) and the reinforced gold layer which is for improved corrosion protection.
For further information regarding the specifications, please see the datasheet on the Technical Library tab.
