Weidmüller USB3.0A T1H 2.3N4 TY BL series

Weidmüller USB3.0A T1H 2.3N4 TY BL series
Weidmüller USB3.0A T1H 2.3N4 TY BL series
Weidmüller USB3.0A T1H 2.3N4 TY BL series
  • Weidmüller

Product Features

  • Through-hole PCB USB jack
  • THT solder connection
  • Plugging cycles ≥1500
  • Solder pin length 2.3mm
  • Blue in colour
  • UL listed
  • Temperature range of −25°C to +85°C

Applications

  • Compliant

Description

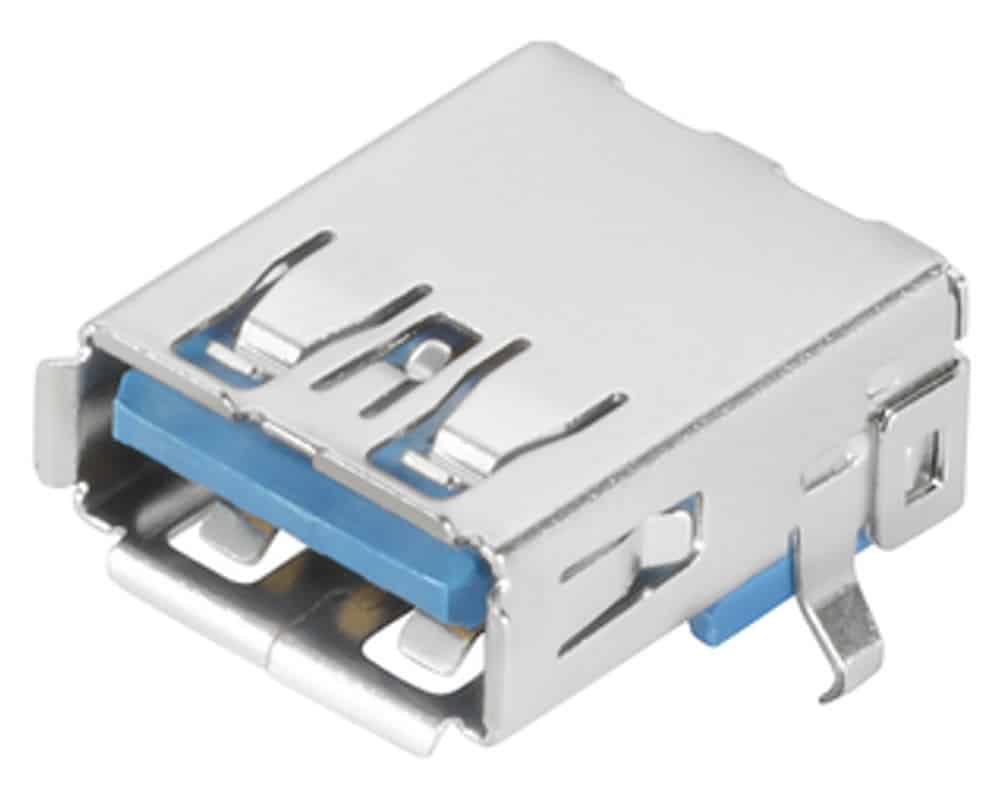

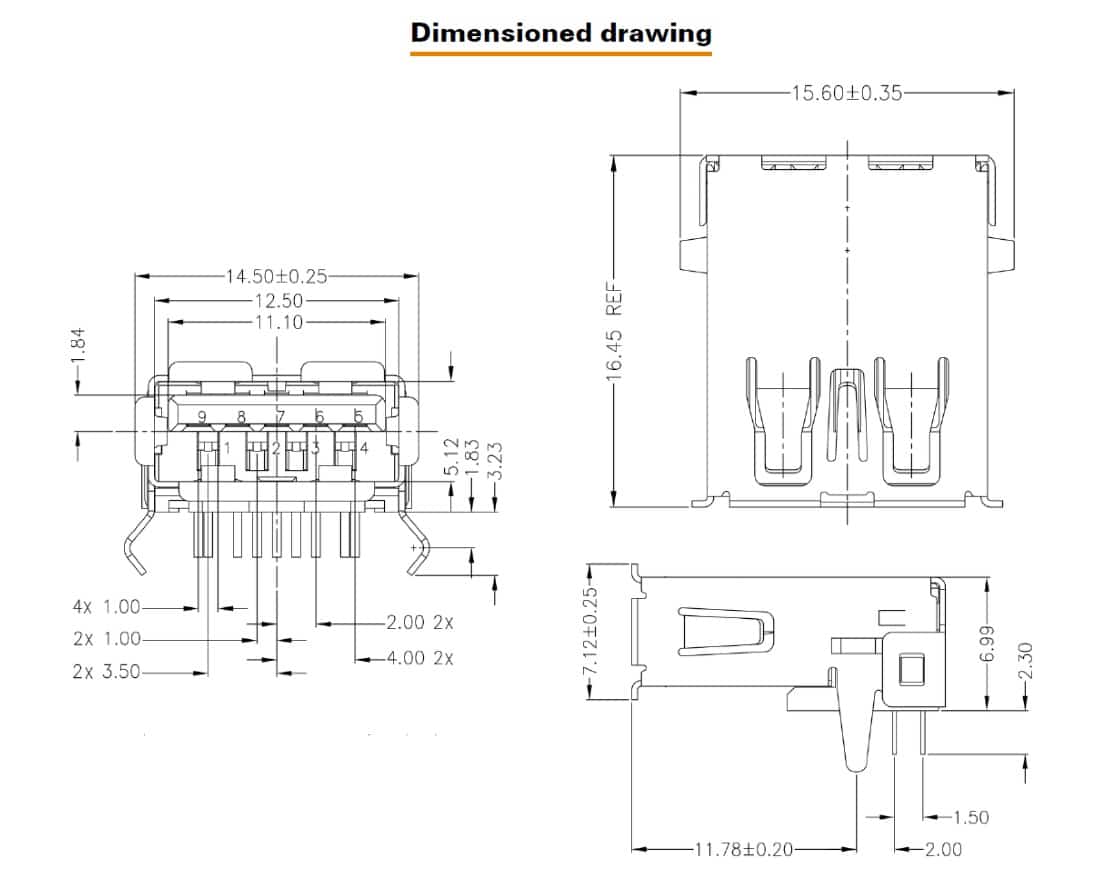

The USB3.0A T1H 2.3N4 TY BL PCB plug-in connectors from the Weidmüller Omnimate data range. Offers a universal serial bus 3.0 (super Speed) type A connectors which meet the requirements for high resistance and provide reliable connectivity. The USB connector from Weidmüller features 9 poles with an outgoing elbow of 90° and with an operating temperature range of −25°C to +85°C.

  • PCB plug-in USB Jack Connector
  • Mounting onto PCB via through-hole technology (THT) solder connection
  • Outgoing elbow of 90°
  • Type A wiring, USB 3.0
  • 9 poles
  • Plugging cycles ≥1500
  • Shielding
  • UL listed
  • Dielectric strength of ≥100VAC and rated current 1.8A at 250VAC
  • Temperature range −25°C to +85°C
  • Solder pin length 2.3mm

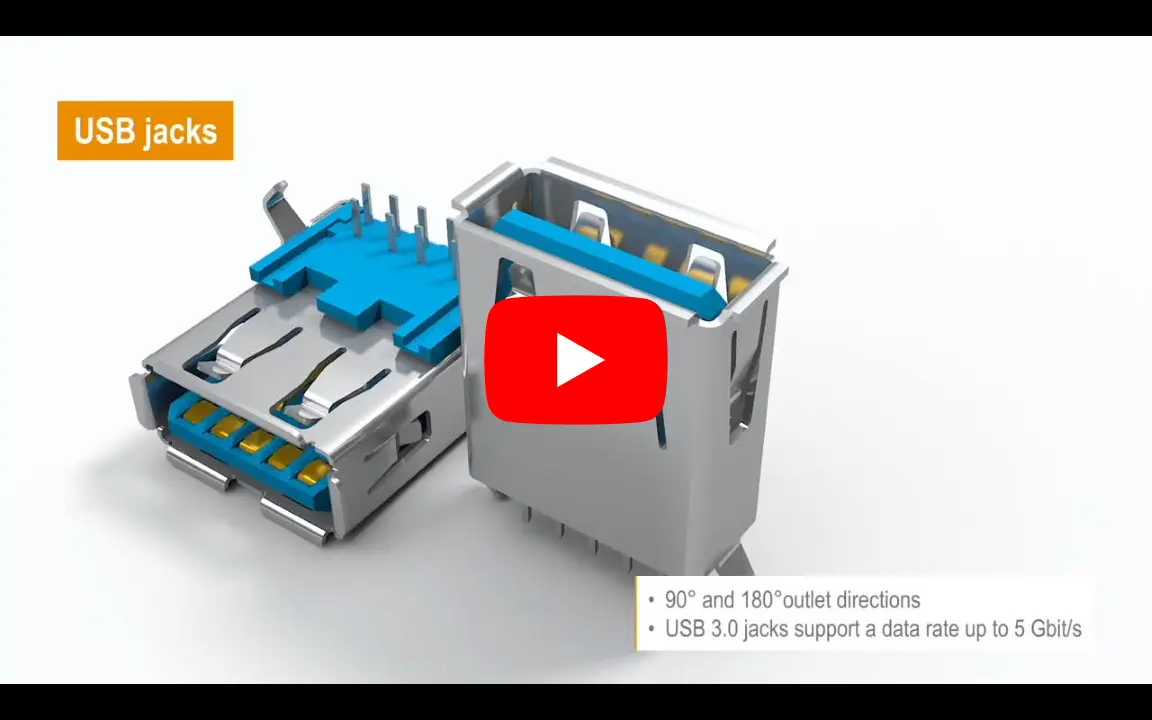

The Weidmüller USB jacks are characterised by compactness and simplicity. Used predominantly in:

  • Horizontal wiring
  • Wiring workstations

The USB3.0A T1H 2.3N4 TY BL connector system is part of the Omnimate Data range from Weidmüller, which are packed in a tray (TY) or on a roll (tape-on reel, RL) and the reinforced gold layer which is for improved corrosion protection.

For further information regarding the specifications, please see the datasheet on the Technical Library tab.
