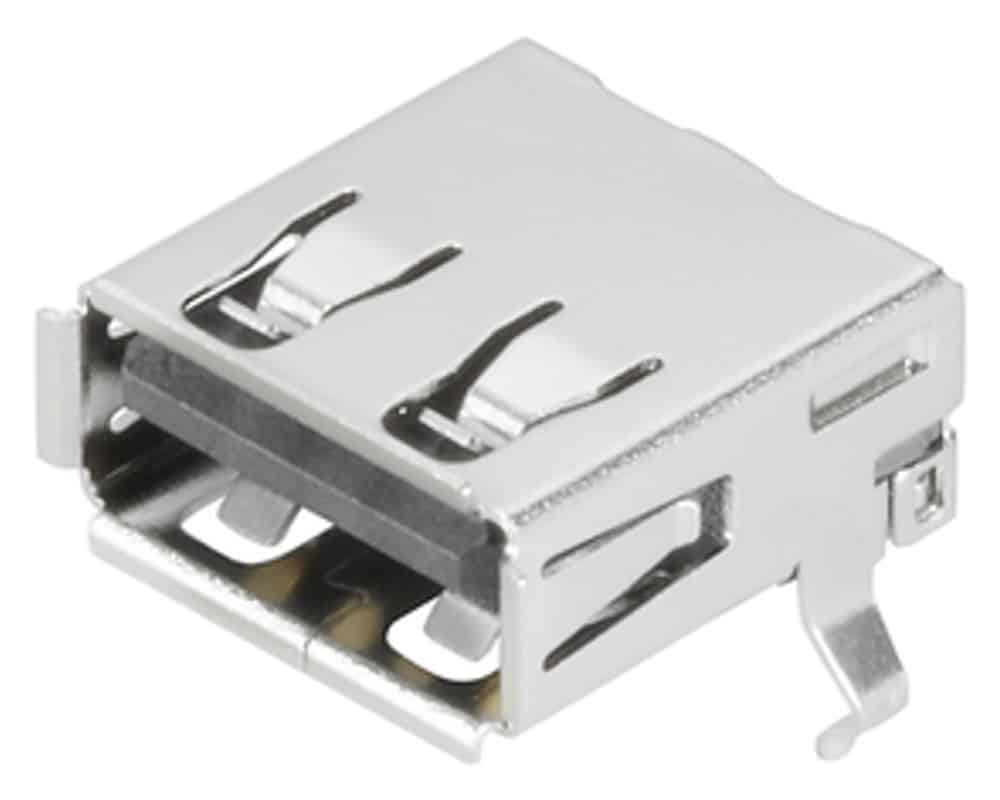

Weidmüller USB2.0A S1H 1.4N4 TY BK series

  • Weidmüller

Product Features

  • Through-hole PCB USB jack
  • THT/THR solder connection
  • Plugging cycles ≥1500
  • Solder pin length 1.4mm
  • Black in colour
  • UL listed
  • Temperature range of −40°C to +60°C

Applications

  • Compliant

The USB2.0A S1H 1.4N4 TY BK PCB plug-in jack connector from the Weidmüller Omnimate data range. Offers a universal serial bus 2.0 type A connectors which meet the requirements for high resistance and provide reliable connectivity. The USB connector from Weidmüller features 4 poles with an outgoing elbow of 90° and with an operating temperature range of −40°C to +60°C.

  • PCB plug-in USB Jack Connector
  • Mounting onto PCB via through-hole technology (THT) solder connection
  • Outgoing elbow of 90°
  • Type A wiring, USB 2.0
  • Number of poles 4
  • Plugging cycles ≥1500
  • Shielding
  • UL listed
  • Dielectric strength of ≥750VAC and rated current 1.5A
  • Temperature range −40°C to +60°C
  • Solder pin length 1.4mm

The Weidmüller USB jacks are characterised by compactness and simplicity. Used predominantly in:

  • Horizontal wiring
  • Wiring workstations

The USB2.0A S1H 1.4N4 TY BK connector system is part of the Omnimate Data range from Weidmüller, which are packed in a tray (TY) or on a roll (tape-on reel, RL) and the reinforced gold layer which is for improved corrosion protection.

For further information regarding the specifications, please see the datasheet on the Technical Library tab.


Specifications

Weight 0.00000 kg
Dimensions 7.12 x 14.00 x 14.50mm
Conductor Outlet Direction

90°

LED

No LEDs

Number of Poles

4

Series / Model

Shielding

Yes

Termination / Connection

Type A USB 2.0 Jack

RoHS Compliant Product – Weidmüller

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
