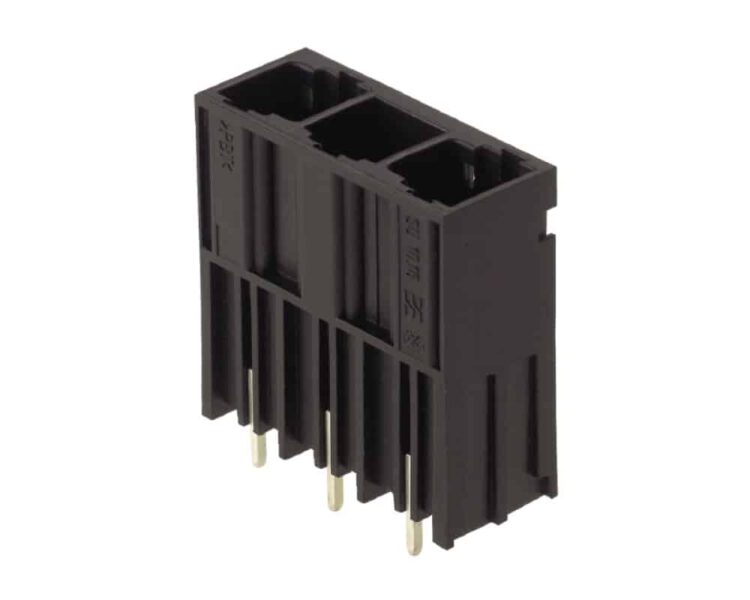

High power PCB connector with male header and closed housing

Weidmüller SU 10.16HP/180G Series

  • High power PCB connector with male header and closed housing
  • Rated current for minimum number of poles 78.3A (IEC) and 60A (UL)
  • Dimensions of L1 10.16mm to 81.28mm (depending on the number of poles required)
  • Pin length of 3.5mm suitable for wave soldering
  • Temperature range −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • Compliant

Specifications

Weight 0.00000 kg
Dimensions 0.00 x 0.00 x 0.00mm
Colour

Black
Conductor Outlet Direction

180°
Number of Poles

2, 3, 4, 5, 6, 7, 8, 9
Mounting / Size

Series / Model

Termination / Connection

Male Header

High power PCB connector with male header and closed housing

Weidmüller SU 10.16HP/180G Series

  • High power PCB connector with male header and closed housing
  • Rated current for minimum number of poles 78.3A (IEC) and 60A (UL)
  • Dimensions of L1 10.16mm to 81.28mm (depending on the number of poles required)
  • Pin length of 3.5mm suitable for wave soldering
  • Temperature range −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • Compliant

Request a Quote

Sample Request
Email Datasheet

Talk to our engineering team

Get help specifying or customising the right product for your application.

By email

Related PCB Power Connectors items

Custom Component Solutions

Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

See what's possible

Related PCB Power Connectors Components

Weidmüller BUZ 10.16HP/180 Series

High power female plug in connector
  • High power female plug in connector
  • Rated current for minimum number of poles 78.3A (IEC) and 60A (UL)
  • Dimensions of L1 10.16mm to 81.28mm (depending on the number of poles required)
  • Clamping range from 0.2mm² to 16mm²
  • Wire connection cross section from AWG 22 to AWG 6
  • Temperature range −50°C up to +130°C
  • CSA and UL 1059 approved, IEC listed
Weidmüller BUZ 10.16HP/180 Series Power Connector
View Product
Download Datasheet

Weidmüller BVF 7.62HP/180 Series

High power female plug in connector
  • High power female plug in connector
  • Rated current for minimum number of poles 57A (IEC) and 39A (UL)
  • Dimensions of L1 7.62mm to 45.62mm (depending on the number of poles required)
  • Clamping range from 0.5mm² to 10mm²
  • Wire connection cross section from AWG 24 to AWG 8
  • Temperature range −50°C up to +125°C
  • CSA and UL 1059 approved, IEC listed
View Product
Download Datasheet

Weidmüller SV 7.62HP/180G Series

High power PCB connector with male header and closed housing
  • High power PCB connector with male header and closed housing
  • Rated current for minimum number of poles 57A (IEC) and 40.5A (UL)
  • Dimensions of L1 7.62mm to 83.82mm (depending on the number of poles required)
  • Pin length of 3.5mm suitable for wave soldering
  • Temperature range −50°C to +130°C
  • CSA and UL 1059 approved, IEC listed
View Product
Download Datasheet

Weidmüller SV 7.62HP/90G Series

High power PCB connector with male header and closed housing
  • High power PCB connector with male header and closed housing
  • Rated current for minimum number of poles 57A (IEC) and 40.5A (UL)
  • Dimensions of L1 7.62mm to 83.82mm (depending on the number of poles required)
  • Pin length of 3.5mm suitable for wave soldering
  • Temperature range −50°C to +130°C
  • CSA and UL 1059 approved, IEC listed
View Product
Download Datasheet

Weidmüller SU 10.16HP/90G Series

High power PCB connector with male header and closed housing
  • High power PCB connector with male header and closed housing
  • Rated current for minimum number of poles 78.3A (IEC) and 60A (UL)
  • Dimensions of L1 10.16mm to 81.28mm (depending on the number of poles required)
  • Pin length of 3.5mm suitable for wave soldering
  • Temperature range −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Download Datasheet

The SU 10.16HP/180G high current, male header PCB plug in connector series from Weidmüller’s Omnimate power range, has been designed with a conductor outlet direction of 180°. They have a 10.16mm pitch and a choice from 2 up to 9 poles. The SU 10.16HP/180G series from Weidmüller with a high current rating of 78.3A (IEC) and 60A (UL approved), closed housing and are suitable for wave (THT) soldering. These PCB plug-in connectors have an operating temperature range of −50°C up to +120°C .

  • High current PCB plug in connector with male header
  • Through-hole technology suitable for wave soldering
  • Number of poles available from 2 to 9
  • Solder pin length of 3.5mm
  • Pitch of 10.16mm
  • Conductor outlet direction of 180°
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 10.16mm to 81.28mm depending on the number of poles required
  • Rated current for minimum number of poles 78.3A (IEC) and 60A (UL approved)
  • Black in colour (additional colours available on request)
  • Packaged in box
  • Temperature range −50°C up to +120°C


The below table gives the specifications of the Weidmüller SL-SMT 3.50/180G PCB connector series:

Weidmüller SU 10.16HP/180G Specifications

Please see the relevant datasheet in the technical library for the exact specification
