Weidmüller SV 7.62HP/90G Series

Weidmüller SV 7.62HP/90G Series
Weidmüller SV 7.62HP/90G Series
Weidmüller SV 7.62HP/90G Series
  • Weidmüller

Product Features

  • High power PCB connector with male header and closed housing
  • Rated current for minimum number of poles 57A (IEC) and 40.5A (UL)

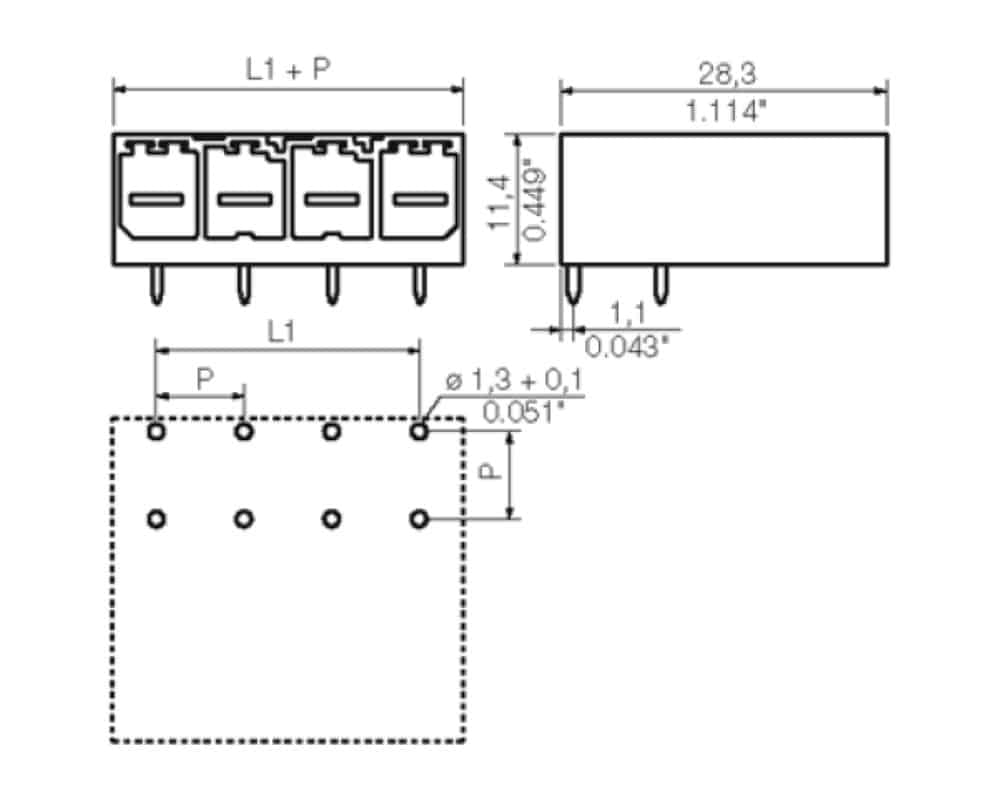

  • Dimensions of L1 7.62mm to 83.82mm (depending on the number of poles required)
  • Pin length of 3.5mm suitable for wave soldering
  • Temperature range −50°C to +130°C
  • CSA and UL 1059 approved, IEC listed
  • UL

Applications

  • Compliant

Description

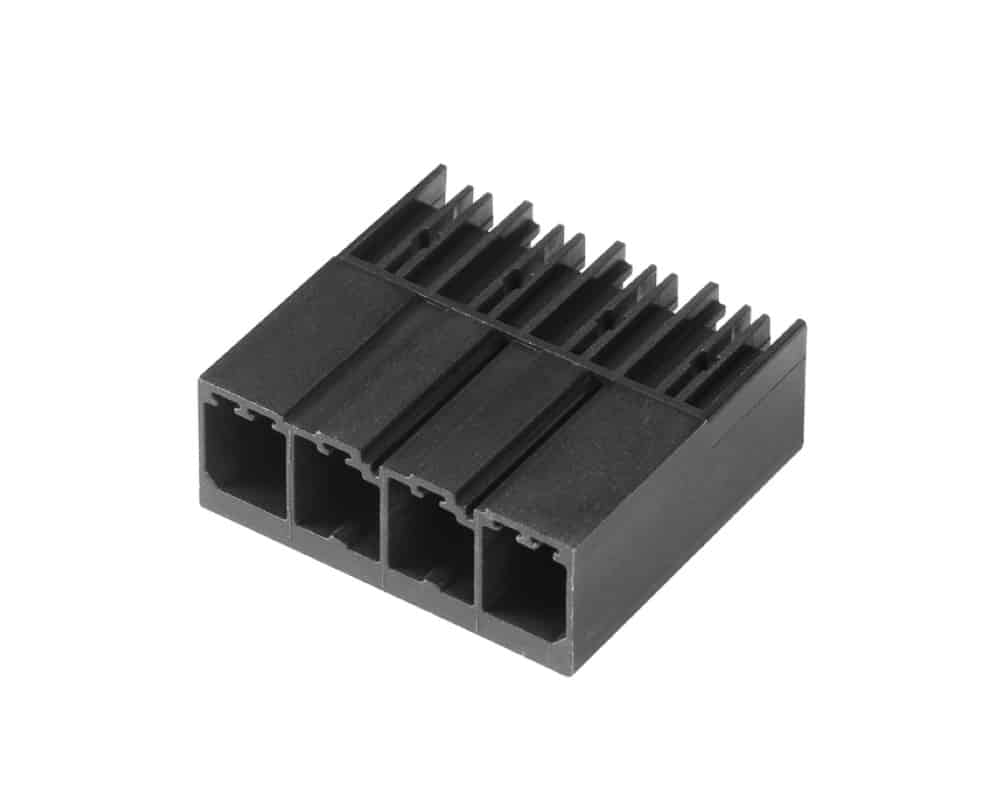

The SV 7.62HP/90G high power, male header PCB plug in connector series from Weidmüller’s Omnimate power range, has been designed with a conductor outlet direction of 90°. They have a 7.62mm pitch and a choice from 2 up to 12 poles. The SV 7.62HP/90G series from Weidmüller with a high power rating of 57A (IEC) and 40.5A (UL approved), closed housing and are suitable for wave (THT) soldering. These PCB plug-in connectors have an operating temperature range of −30°C up to +130°C .

  • High power PCB plug in connector with male header
  • Through-hole technology suitable for wave soldering
  • Number of poles available from 2 to 12
  • Solder pin length of 3.5mm
  • Pitch of 7.62mm
  • Conductor outlet direction of 90°
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 7.62mm to 83.82mm depending on the number of poles required
  • Rated current for minimum number of poles 57A (IEC) and 40.5A (UL approved)
  • Black in colour (additional colours available on request)
  • Packaged in box
  • Temperature range −30°C up to +130°C


The below table gives the specifications of the Weidmüller SV 7.62HP/90G PCB connector series:

Weidmüller SV 7.62HP/90G Specifications

Please see the relevant datasheet in the technical library for the exact specification

Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Series / Model

Colour

Conductor Outlet Direction

Package / Size

Number of Poles

, , , , , , , , ,

Termination / Connection Type

RoHS Compliant Product – Weidmüller

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Weidmüller SV 7.62/90G 3.5SN BK BX Technical Library

We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
2 Pole – Weidmüller Omnimate Power SV 7.62HP/02/90G 3.5SN BK BX PCB connector datasheet
3 Pole – Weidmüller Omnimate Power SV 7.62HP/03/90G 3.5SN BK BX PCB connector datasheet
4 Pole – Weidmüller Omnimate Power SV 7.62HP/04/90G 3.5SN BK BX PCB connector datasheet
5 Pole – Weidmüller Omnimate Power SV 7.62HP/05/90G 3.5SN BK BX PCB connector datasheet
6 pole – Weidmüller Omnimate Power SV 7.62HP/06/90G 3.5SN BK BX PCB connector datasheet
7 Pole – Weidmüller Omnimate Power SV 7.62HP/07/90G 3.5SN BK BX PCB connector datasheet
8 Pole – Weidmüller Omnimate Power SV 7.62HP/08/90G 3.5SN BK BX PCB connector datasheet
9 Pole – Weidmüller Omnimate Power SV 7.62HP/09/90G 3.5SN BK BX PCB connector datasheet
10 pole – Weidmüller Omnimate Power SV 7.62HP/10/90G 3.5SN BK BX PCB connector datasheet
12 Pole – Weidmüller Omnimate Power SV 7.62HP/12/90G 3.5SN BK BX PCB connector datasheet

Weidmüller Omnimate Power Video Library

We are pleased to provide you with a range of videos, please see below for the latest content available:





VIDEOS
Place holder video for YouTube video Weidmüller Omnimate power range video

A short video of Weidmüller' Device Connectivity components for power applications. A complete family of solutions for power electronics providing the highest level of performance, meeting the demands of any application and backed by superior design in service and support.

VIDEOS
Place holder video for YouTube video
Weidmüller Omnimate power range video.

A short video of Weidmüller' Device Connectivity components for power applications. A complete family of solutions for power electronics providing the highest level of performance, meeting the demands of any application and backed by superior design in service and support.
