Weidmüller LUF 15.00/90V Series

Product Features

  • PCB terminal connector
  • Study, direct connection fro extreme current and voltage requirements
  • Rated current for minimum number of poles 68A (IEC) and 58A (UL)

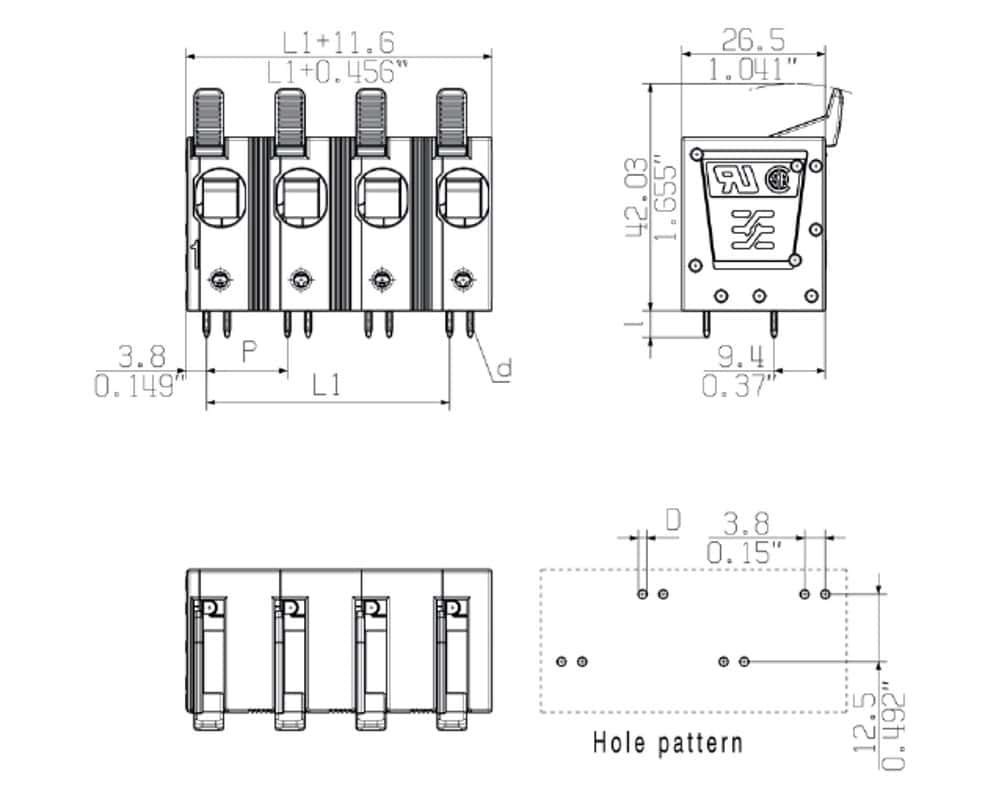

  • Dimensions of L1 15mm to 105mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 5mm
  • Wire connection cross section from AWG 18 to AWG 4
  • Temperature range of −40°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • Compliant

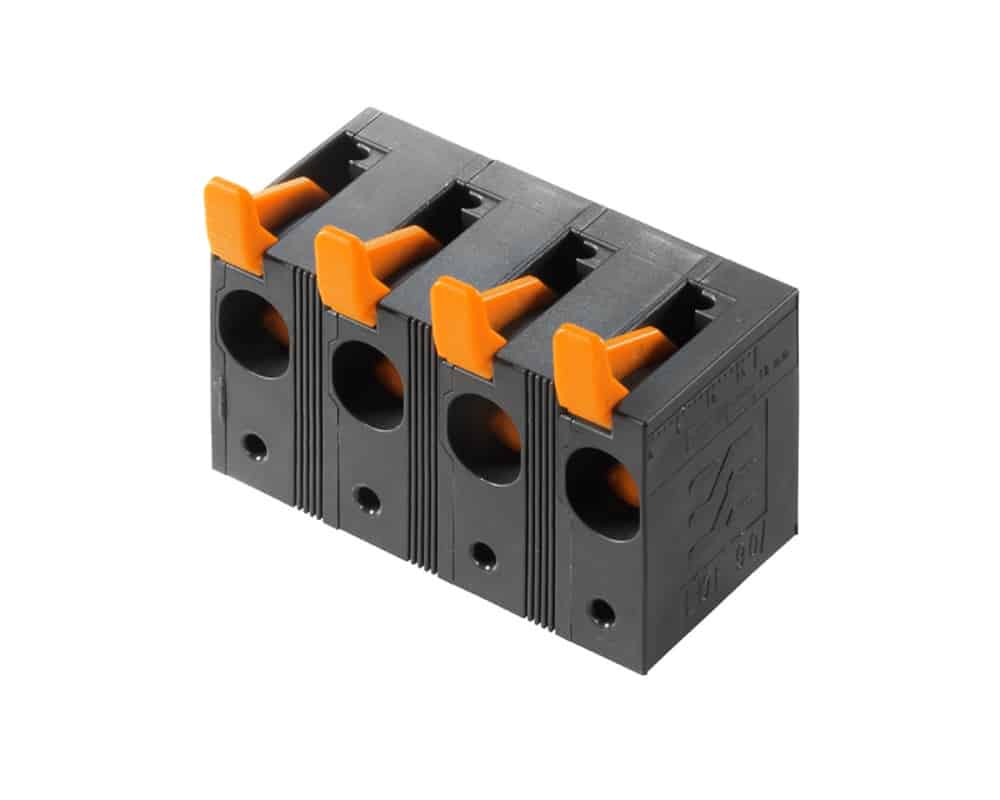

The LUF 15.00/90V PCB terminal series from Weidmüller’s Omnimate power range, offers a spring connection with direct push in technology and actuator. Designed with a conductor outlet direction of 90° and a choice from 2 up to 8 poles and a 15mm pitch. The LUF 15.00/90V series from Weidmüller have a fully automatic assembly using wave soldering (THT) and can be used with or without ferrules, with an operating temperature range of −40°C to +120°C .

  • PCB terminal connector
  • Through-hole technology with wave soldering
  • Number of poles available from 2 to 8
  • Solder pin length of 5mm
  • Pitch of 15mm
  • Conductor outlet direction of 90°
  • Push in technology with actuator
  • Wire connection cross section from AWG 18 to AWG 4
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 15mm to 105mm depending on the number of poles required
  • Rated current for minimum number of poles 68A (IEC) and 58A (UL)
  • Black in colour (additional colours available on request)
  • Packaged in box
  • Temperature range −40°C to +120°C

The Study, direct connections for extreme current and voltage requirements in all power applications for the LLFS 15.00/90V series include:

  • Solar inverters
  • Frequency converters
  • Servo-controllers
  • Power Supplies

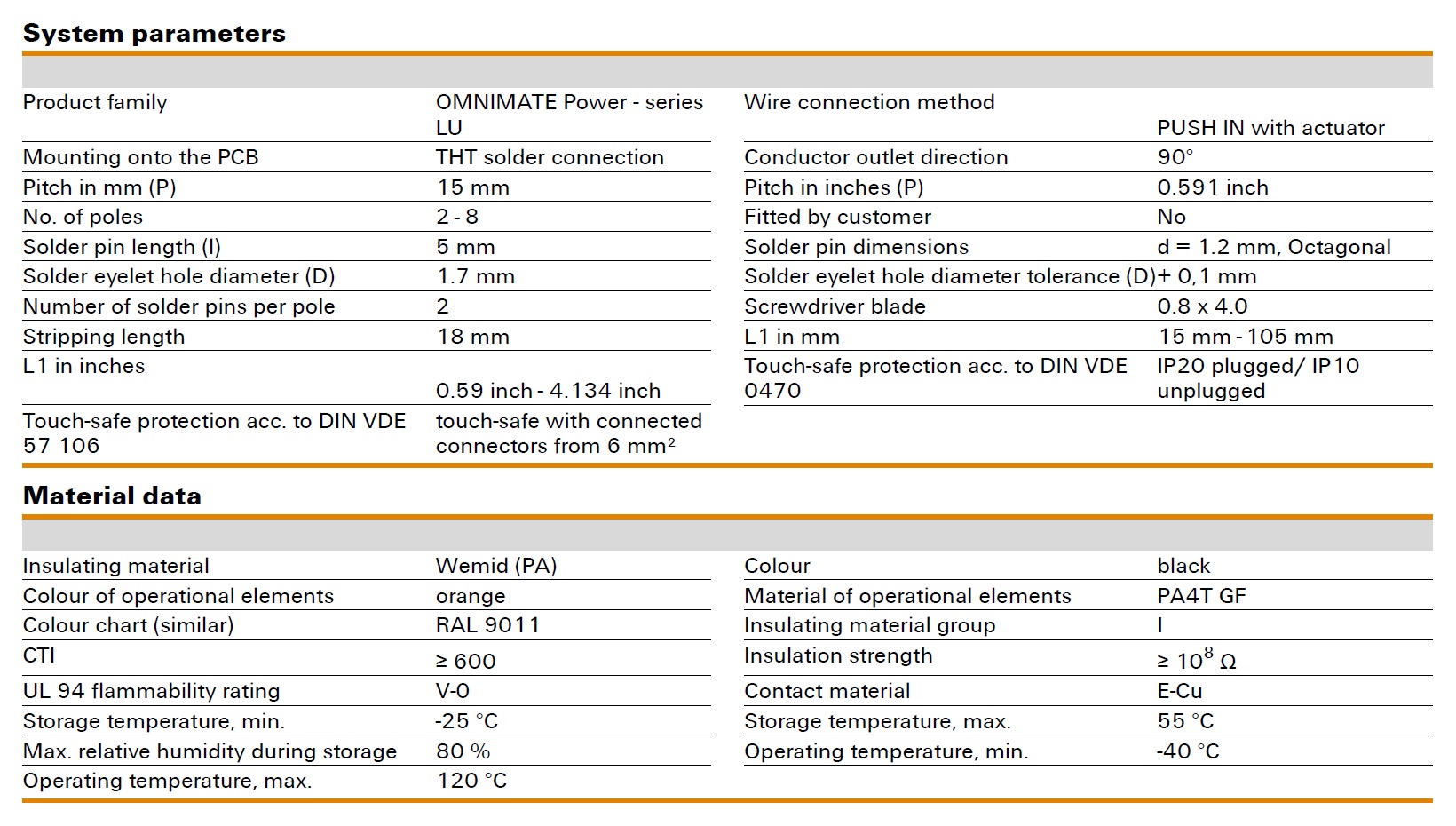

The below table gives the specifications of the Weidmüller LUF 10.00/90V PCB terminal series:

Weidmüller LUF 15.00/90V Specifications

Please see the relevant datasheet in the technical library for the exact specification

Specifications

Weight 0.00000 kg
Dimensions 0.00 x 0.00 x 0.00mm
Colour

Black

Conductor Outlet Direction

90°

Number of Poles

2, 3, 4, 5, 6, 7, 8

Package / Size

Series / Model

Termination / Connection

Push-in Spring Clamp

Product Variations

SKUNumber of Poles
Weidmüller LUF 15.00/90V Series2

Request Quote

Weidmüller LUF 15.00/90V Series3

Request Quote

Weidmüller LUF 15.00/90V Series4

Request Quote

Weidmüller LUF 15.00/90V Series5

Request Quote

Weidmüller LUF 15.00/90V Series6

Request Quote

Weidmüller LUF 15.00/90V Series7

Request Quote

Weidmüller LUF 15.00/90V Series8

Request Quote
