Weidmüller LLFS 7.50/180V Series

Weidmüller LLFS 7.50/180V Series
Weidmüller LLFS 7.50/180V Series
Weidmüller LLFS 7.50/180V Series
  • Weidmüller

Product Features

  • PCB terminal connector
  • Rated current for minimum number of poles 41A (IEC) and 37A (UL)
  • Dimensions of L1 7.5mm to 82.5mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 5mm
  • Wire connection cross section from AWG 24 to AWG 8
  • Temperature range of −40°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • UL

Applications

  • Compliant

Description

The LLFS 7.50/180V PCB terminal series from Weidmüller’s Omnimate power range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180° and a choice from 2 up to 12 poles and a 7.5mm pitch. The LLFS 7.50/180V series from Weidmüller have a fully automatic assembly using wave soldering (THT) and can be used with or without ferrules, with an operating temperature range of −40°C to +120°C .

  • PCB terminal connector
  • Through-hole technology with wave soldering
  • Number of poles available from 2 to 12
  • Solder pin length of 5mm
  • Pitch of 7.5mm
  • Conductor outlet direction of 180°
  • Push in technology
  • Wire connection cross section from AWG 24 to AWG 8
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 7.5mm to 82.5mm depending on the number of poles required
  • Rated current for minimum number of poles 41A (IEC) and 37A (UL)
  • Black in colour (additional colours available on request)
  • Packaged in box
  • Temperature range −40°C to +120°C

The Sturdy, direct connection for extreme current and voltage requirements in all power electronics applications for the LLFS 7.50/180V series include:

  • Solar inverters
  • Frequency converters
  • Servo-controllers
  • Power Supplies

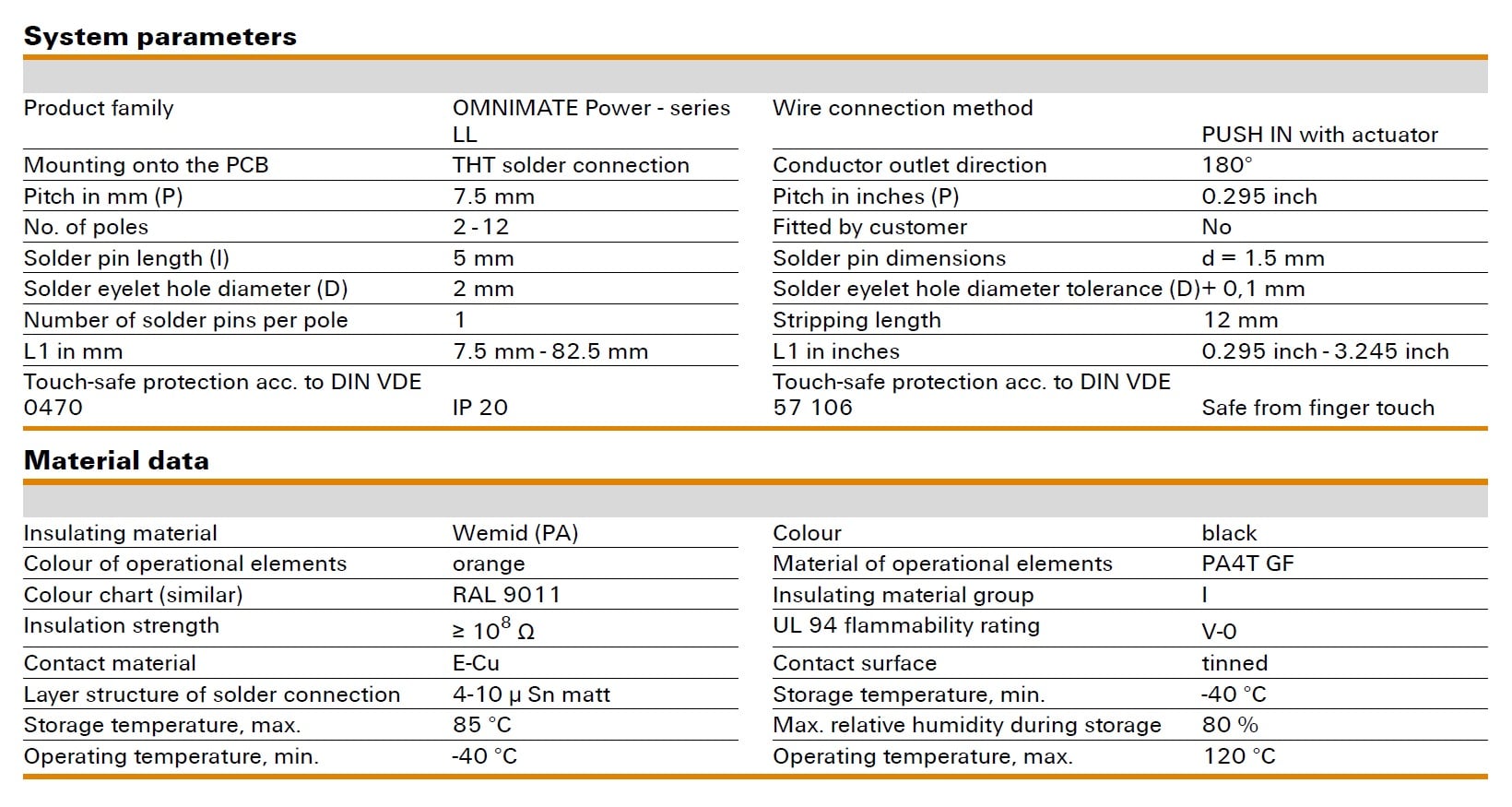

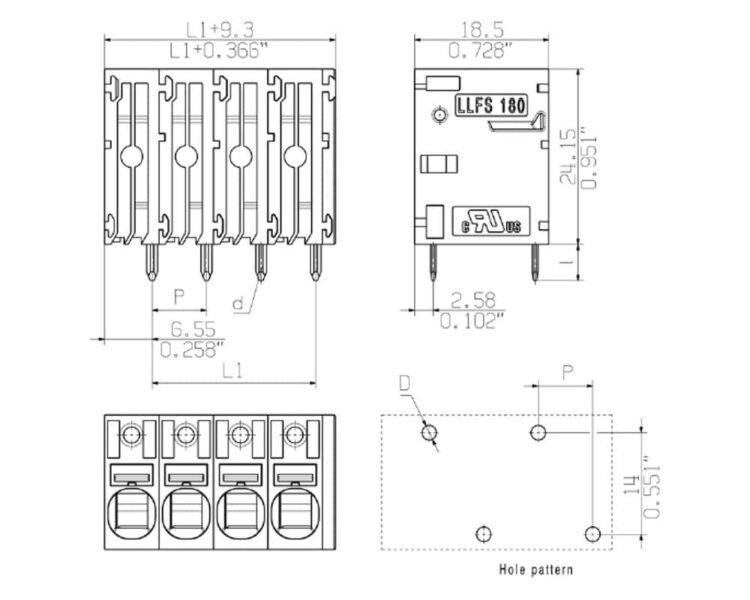

The below table gives the specifications of the Weidmüller LLFS 7.50/180V PCB terminal series:

Weidmüller LLFS 7.50/180V Specifications

Please see the relevant datasheet in the technical library for the exact specification

Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Series / Model

Termination / Connection Type

Colour

Conductor Outlet Direction

Package / Size

Number of Poles

, , , , , , , , , ,

RoHS Compliant Product – Weidmüller

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Weidmüller LLFS 7.5/180V 5.0SN BK BX Technical Library

We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
2 Pole – Weidmüller Omnimate Power LLFS 7.50/02/180V 5.0SN BK BX PCB terminal datasheet
3 Pole – Weidmüller Omnimate Power LLFS 7.50/03/180V 5.0SN BK BX PCB terminal datasheet
4 Pole – Weidmüller Omnimate Power LLFS 7.50/04/180V 5.0SN BK BX PCB terminal datasheet
5 Pole – Weidmüller Omnimate Power LLFS 7.50/05/180V 5.0SN BK BX PCB terminal datasheet
6 pole – Weidmüller Omnimate Power LLFS 7.50/06/180V 5.0SN BK BX PCB terminal datasheet
7 Pole – Weidmüller Omnimate Power LLFS 7.50/07/180V 5.0SN BK BX PCB terminal datasheet
8 Pole – Weidmüller Omnimate Power LLFS 7.50/08/180V 5.0SN BK BX PCB terminal datasheet
9 Pole – Weidmüller Omnimate Power LLFS 7.50/09/180V 5.0SN BK BX PCB terminal datasheet
10 Pole – Weidmüller Omnimate Power LLFS 7.50/10/180V 5.0SN BK BX PCB terminal datasheet
11 Pole – Weidmüller Omnimate Power LLFS 7.50/11/180V 5.0SN BK BX PCB terminal datasheet
12 Pole – Weidmüller Omnimate Power LLFS 7.50/12/180V 5.0SN BK BX PCB terminal datasheet
