PCB terminal connector with male header and closed housing

Weidmüller SL 2.50/90G Series

  • PCB terminal connector with male header and closed housing
  • Rated current for minimum number of poles 6A (IEC) and 5A (UL)
  • Dimensions of L1 2.5mm to 27.5mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 3.2mm
  • Temperature range −40°C to +105°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • Compliant

Specifications

Weight 0.00000 kg
Dimensions 0.00 x 0.00 x 0.00mm
Colour

Black
Conductor Outlet Direction

90°
Number of Poles

2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Mounting / Size

Series / Model

Termination / Connection

Male Header

PCB terminal connector with male header and closed housing

Weidmüller SL 2.50/90G Series

  • PCB terminal connector with male header and closed housing
  • Rated current for minimum number of poles 6A (IEC) and 5A (UL)
  • Dimensions of L1 2.5mm to 27.5mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 3.2mm
  • Temperature range −40°C to +105°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • Compliant

Request a Quote

Sample Request
Email Datasheet

Talk to our engineering team

Get help specifying or customising the right product for your application.

By email

Related PCB Signal Connectors items

Weidmüller OMNIMATE® BLF 2.50/180 Series | PCB Singal Connector
Weidmüller BLF 2.50/180 Series

Custom Component Solutions

Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

See what's possible

Related Weidmüller SL 2.50/90G Series Components

Weidmüller BLF 2.50/180 Series

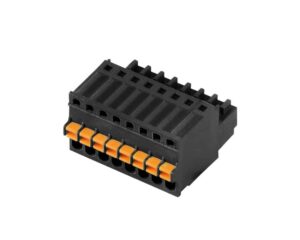

PCB terminal connector with female plug
  • PCB terminal connector with female plug
  • Rated current for minimum number of poles 6A (IEC) and 5A (UL)
  • Dimensions of L1 2.5mm to 27.5mm (depending on the number of poles required)
  • Push in spring connection with integrated push buttons for opening the terminal point
  • Wire connection cross section from AWG28 (0.08mm²) to AWG 20 (0.5mm²)
  • Temperature range −40°C up to +105°C
  • CSA and UL 1059 approved, IEC listed
Weidmüller OMNIMATE® BLF 2.50/180 Series | PCB Singal Connector
View Product
Download Datasheet

The SL 2.50/90G male header PCB plug in connector series from Weidmüller’s Omnimate signal range has been designed with a conductor outlet direction of 90°. They have a 2.5mm pitch and a choice from 2 up to 12 poles. The SL 2.50/90G series from Weidmüller have a closed housing and can be used in a fully automatic assembly using wave soldering (THT). These PCB plug-in connectors have an operating temperature range of −40°C up to +105°C .

  • PCB plug in connector with male header
  • Through-hole technology with wave soldering
  • Number of poles available from 2 to 12
  • Solder pin length of 3.2mm
  • Pitch of 2.5mm
  • Conductor outlet direction of 90°
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 2.5mm to 27.5mm depending on the number of poles required
  • Rated current for minimum number of poles 6A (IEC) and 5A (UL)
  • Black in colour (additional colours available on request)
  • Packaged in box
  • Temperature range −40°C up to +105°C

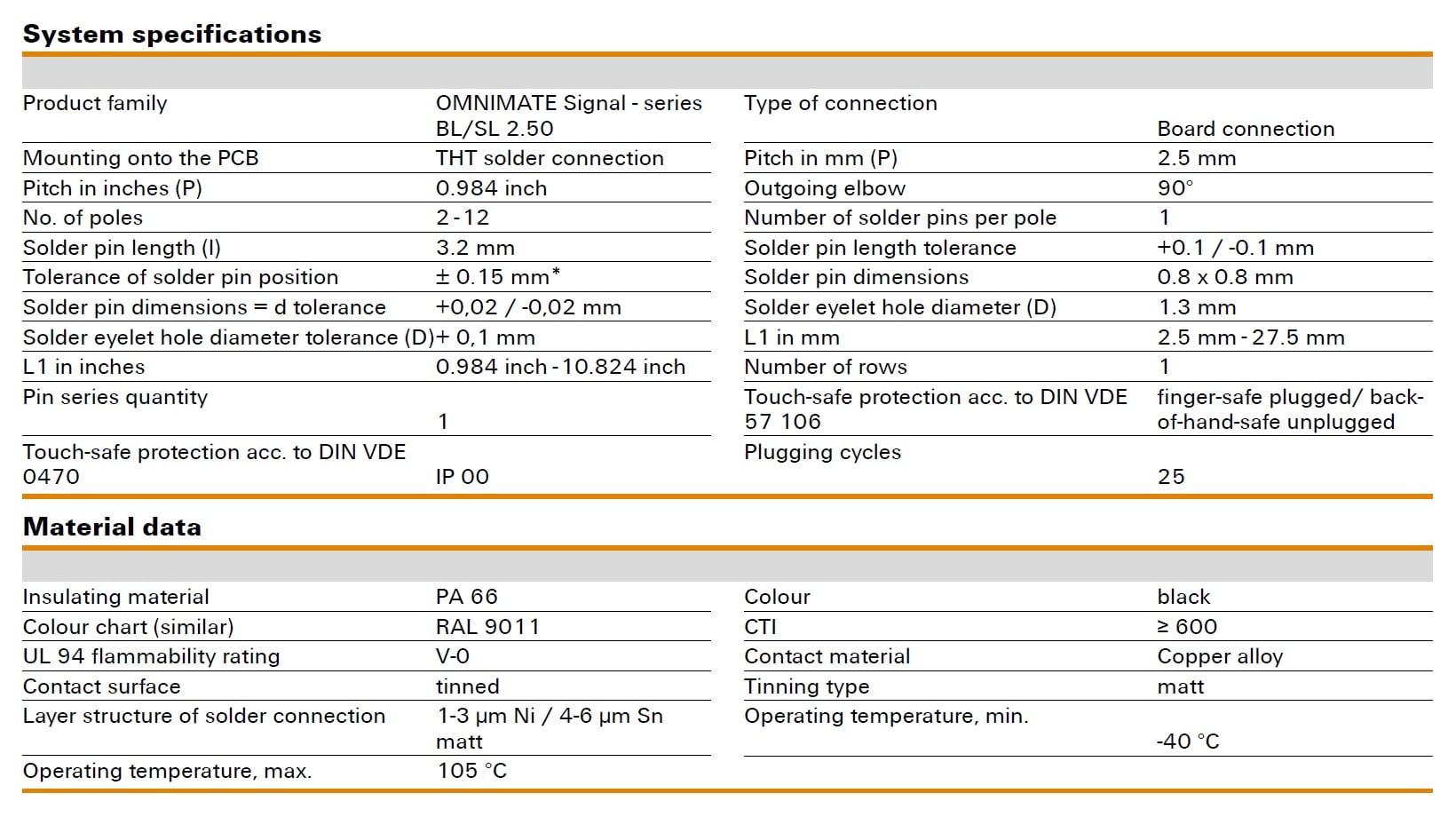

The below table gives the specifications of the Weidmüller SL 2.50/90G PCB connector series:
