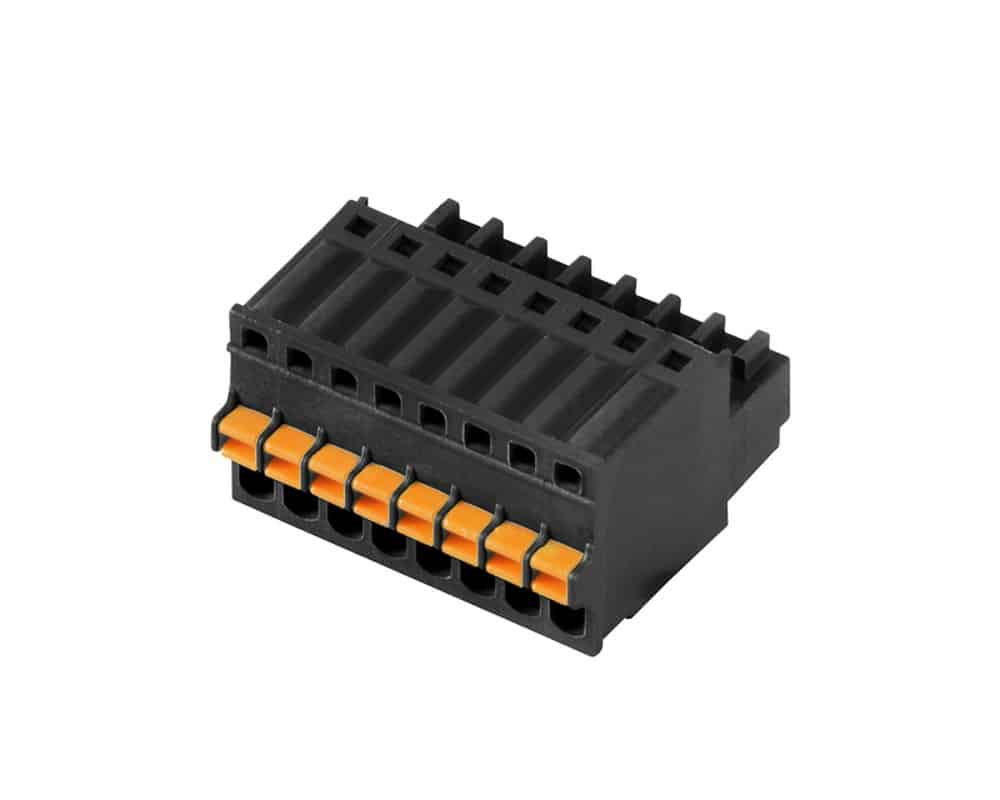

Weidmüller OMNIMATE® BLF 2.50/180 Series | PCB Singal Connector

PCB terminal connector with female plug

Weidmüller BLF 2.50/180 Series

  • PCB terminal connector with female plug
  • Rated current for minimum number of poles 6A (IEC) and 5A (UL)

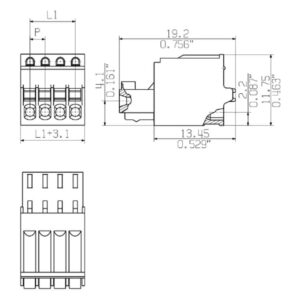

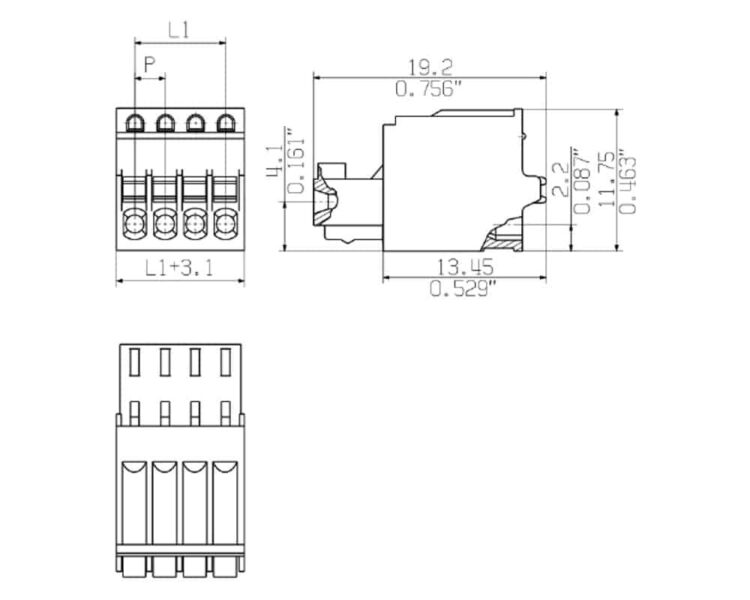

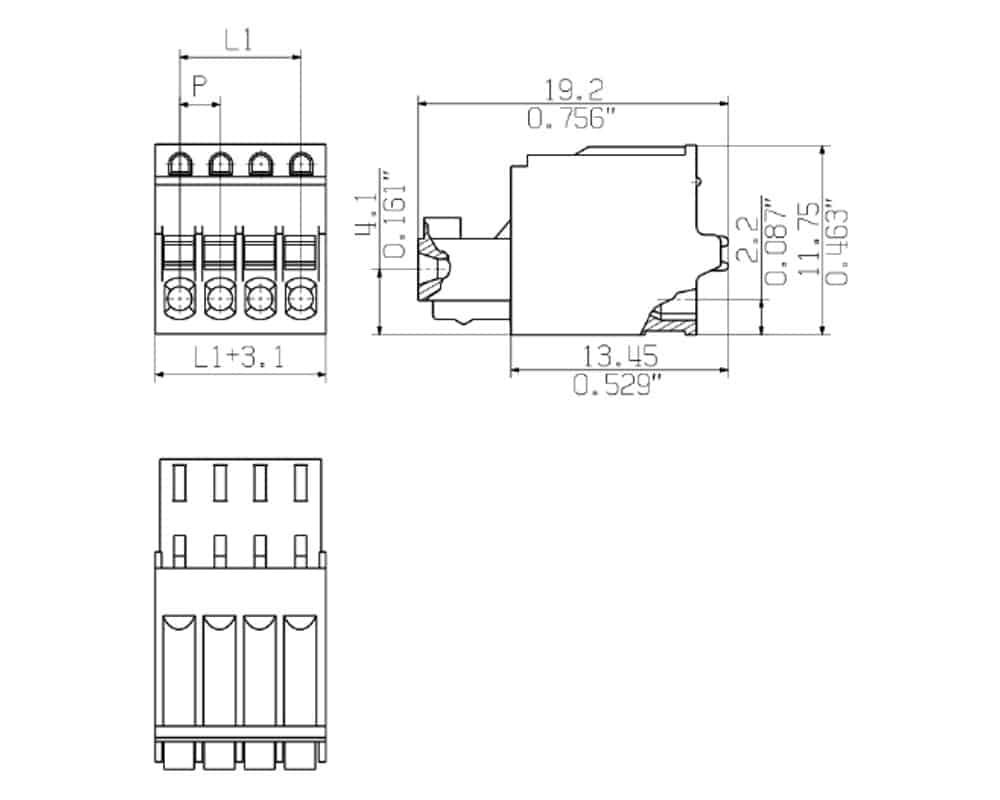

  • Dimensions of L1 2.5mm to 27.5mm (depending on the number of poles required)
  • Push in spring connection with integrated push buttons for opening the terminal point
  • Wire connection cross section from AWG28 (0.08mm²) to AWG 20 (0.5mm²)
  • Temperature range −40°C up to +105°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • Compliant

Specifications

Weight 0.00000 kg
Dimensions 0.00 x 0.00 x 0.00mm
Colour

Black
Conductor Outlet Direction

180°
Number of Poles

2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Mounting / Size

Series / Model

Termination / Connection

Push-in Spring Clamp
Weidmüller OMNIMATE® BLF 2.50/180 Series | PCB Singal Connector

PCB terminal connector with female plug

Weidmüller BLF 2.50/180 Series

  • PCB terminal connector with female plug
  • Rated current for minimum number of poles 6A (IEC) and 5A (UL)
  • Dimensions of L1 2.5mm to 27.5mm (depending on the number of poles required)
  • Push in spring connection with integrated push buttons for opening the terminal point
  • Wire connection cross section from AWG28 (0.08mm²) to AWG 20 (0.5mm²)
  • Temperature range −40°C up to +105°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • Compliant

Request a Quote

Sample Request
Email Datasheet

Talk to our engineering team

Get help specifying or customising the right product for your application.

By email

Related PCB Signal Connectors items

Weidmüller SL 2.50/90G Series

Custom Component Solutions

Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

See what's possible

Related Weidmüller BLF 2.50/180 Series Components

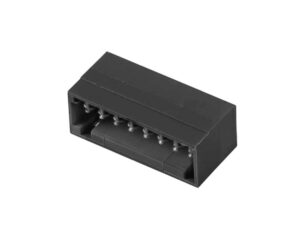

Weidmüller SL 2.50/90G Series

PCB terminal connector with male header and closed housing
  • PCB terminal connector with male header and closed housing
  • Rated current for minimum number of poles 6A (IEC) and 5A (UL)
  • Dimensions of L1 2.5mm to 27.5mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 3.2mm
  • Temperature range −40°C to +105°C
  • CSA and UL 1059 approved, IEC listed
View Product
Download Datasheet

The BLF 2.50/180 female plug PCB plug in connector series from Weidmüller’s Omnimate signal range has been designed with a conductor outlet direction of 180°. They have a 2.5mm pitch and a choice from 2 up to 12 poles. The BLF 2.50/180 series from Weidmüller have a push in spring connection with integrated push buttons for opening the terminal point. These connectors have an operating temperature range of −40°C up to +105°C .

  • Female plug in connector
  • Push in spring connection with integrated push buttons for opening the terminal point
  • Number of poles available from 2 to 12
  • Wire connection cross section from AWG28 (0.08mm²) to AWG 20 (0.5mm²)
  • Pitch of 2.5mm
  • Conductor outlet direction of 180°
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 2.5mm to 27.5mm depending on the number of poles required
  • Rated current for minimum number of poles 6A (IEC) and 5A (UL)
  • Black in colour (additional colours available on request)
  • Packaged in box
  • Temperature range −40°C up to +120°C


The below table gives the specifications of the Weidmüller BLF 2.50/180 PCB connector series:

Weidmüller BLF 2.50/180 Specifications

Please see the relevant datasheet in the technical library for the exact specification
