Weidmüller LSF-SMD 3.50/180 Series

Weidmüller LSF-SMD 3.50/180 Series
Weidmüller LSF-SMD 3.50/180 Series
Weidmüller LSF-SMD 5.00/180 Series
  • Weidmüller

Product Features

  • PCB terminal connector
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)

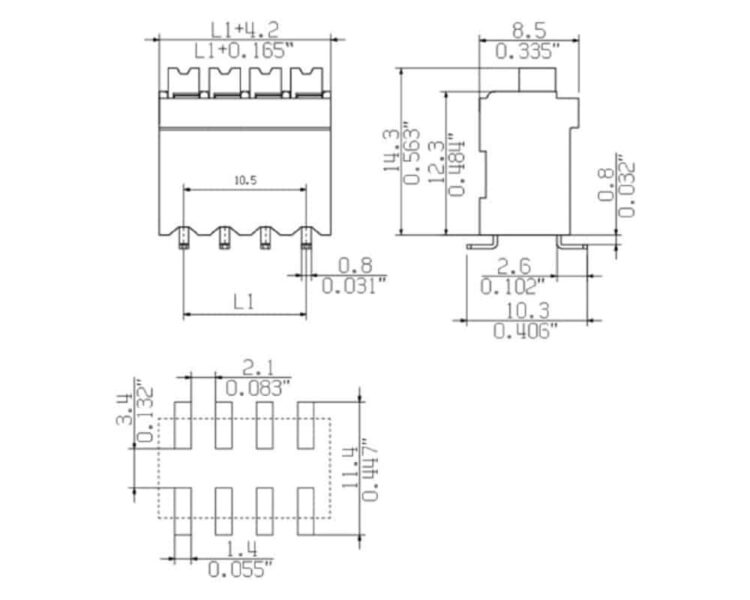

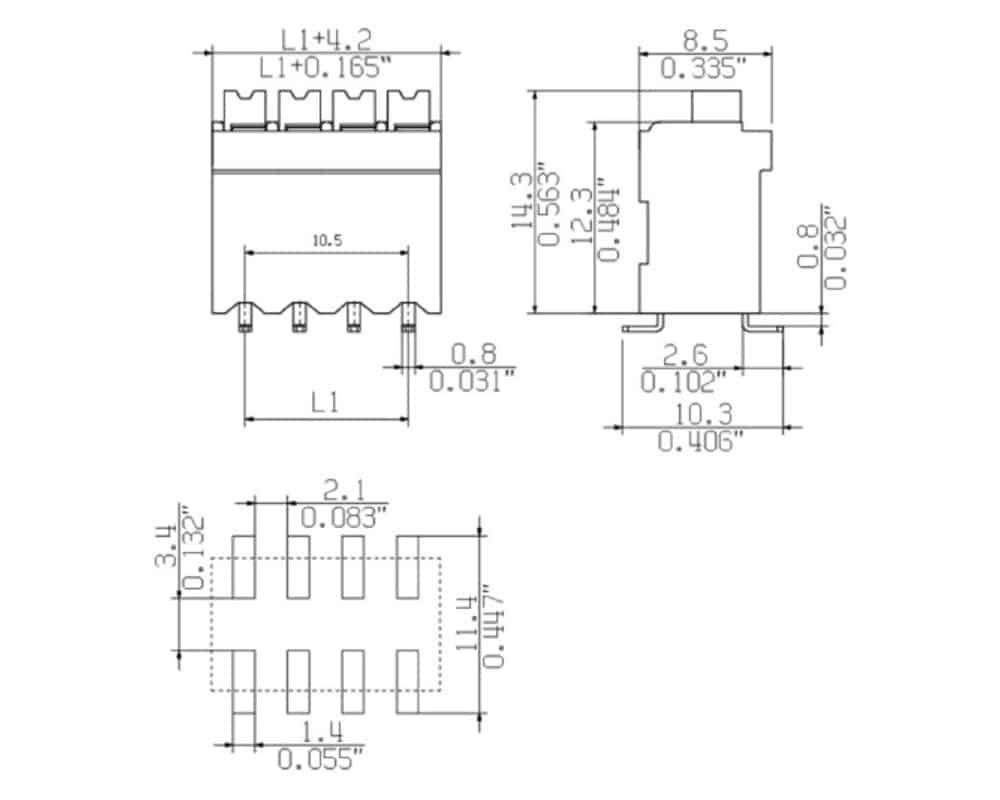

  • Dimensions of L1 3.5mm to 38.5mm (depending on the number of poles required)
  • SMD solder connection
  • Wire connection cross section from AWG 28 to AWG 14
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • UL

Applications

  • Compliant

Description

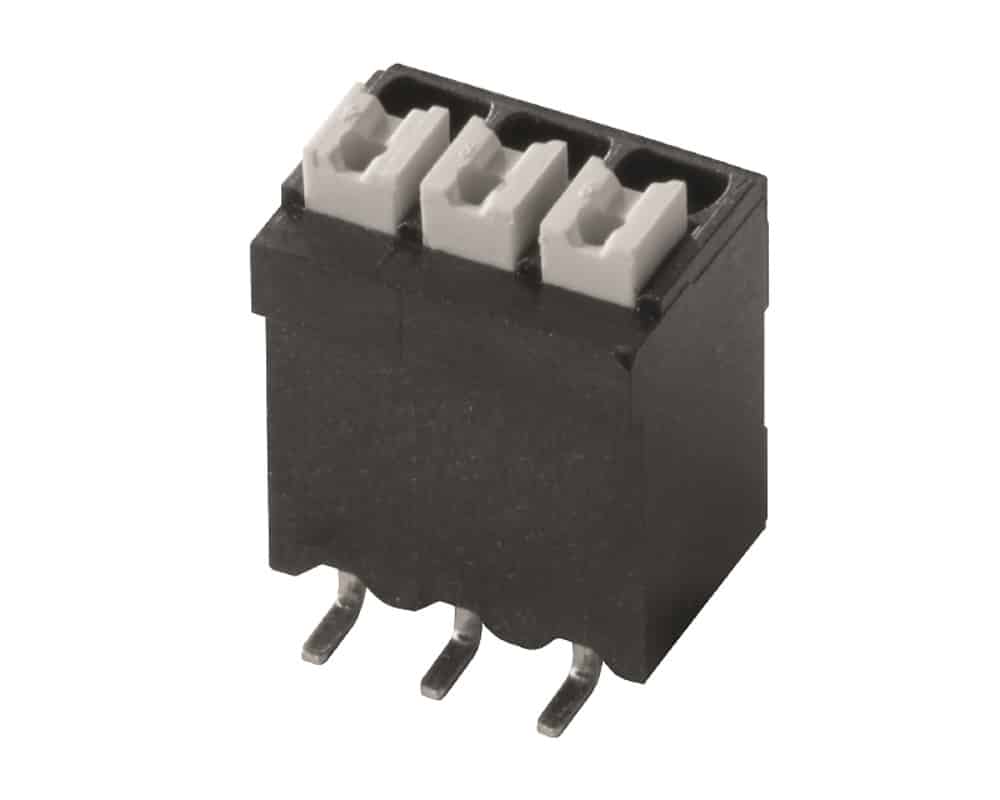

The LSF-SMD 3.50/180 PCB terminal series from Weidmüller’s Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180°, and a choice from 2 up to 12 poles and a 3.5mm pitch. The LSF-SMD 3.50/180 series from Weidmüller have a fully automatic assembly using reflow soldering (SMD) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

  • PCB terminal connector
  • Mounting onto PCB with reflow soldering
  • Number of poles available from 2 to 12
  • Pitch of 3.5mm
  • Conductor outlet direction of 180°
  • Wire connection cross section from AWG 28 to AWG 14
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 3.5mm to 38.5mm depending on the number of poles required
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Packaged in tape on reel
  • Temperature range −50°C to +120°C

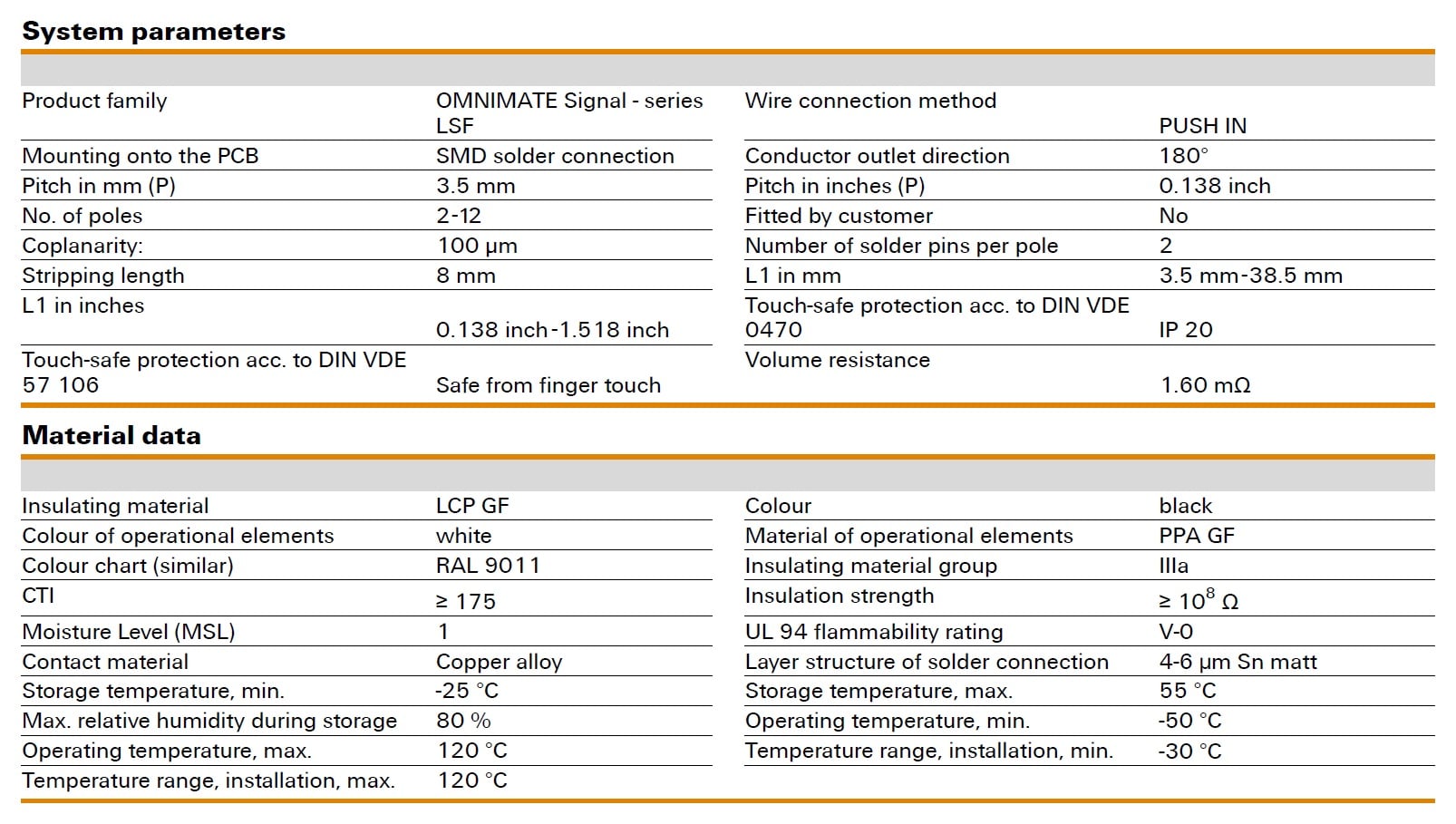

The below table gives the specifications of the Weidmüller LSF-SMD 3.50/180 PCB terminal series:

Weidmüller LSF-SMD 3.50/180 Specifications

Please see the relevant datasheet in the technical library for the exact specification

Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Series / Model

Termination / Connection Type

Colour

Conductor Outlet Direction

Package / Size

Number of Poles

, , , , , , , , , ,

RoHS Compliant Product – Weidmüller

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Weidmüller LSF-SMD 3.50/180 SN BK RL Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
2 Pole – Weidmüller Omnimate Signal LSF-SMD 3.50/02/180 SN BK RL PCB terminal datasheet
3 Pole – Weidmüller Omnimate Signal LSF-SMD 3.50/03/180 SN BK RL PCB terminal datasheet
4 Pole – Weidmüller Omnimate Signal LSF-SMD 3.50/04/180 SN BK RL PCB terminal datasheet
5 Pole – Weidmüller Omnimate Signal LSF-SMD 3.50/05/180 SN BK RL PCB terminal datasheet
6 pole – Weidmüller Omnimate Signal LSF-SMD 3.50/06/180 SN BK RL PCB terminal datasheet
7 Pole – Weidmüller Omnimate Signal LSF-SMD 3.50/07/180 SN BK RL PCB terminal datasheet
8 Pole – Weidmüller Omnimate Signal LSF-SMD 3.50/08/180 SN BK RL PCB terminal datasheet
9 Pole – Weidmüller Omnimate Signal LSF-SMD 3.50/09/180 SN BK RL PCB terminal datasheet
10 Pole – Weidmüller Omnimate Signal LSF-SMD 3.50/10/180 SN BK RL PCB terminal datasheet
11 Pole – Weidmüller Omnimate Signal LSF-SMD 3.50/11/180 SN BK RL PCB terminal datasheet
12 Pole – Weidmüller Omnimate Signal LSF-SMD 3.50/12/180 SN BK RL PCB terminal datasheet
