Weidmüller LSF-SMD 5.00/180 Series

  • Weidmüller

Product Features

  • PCB terminal connector
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Dimensions of L1 5mm to 35mm (depending on the number of poles required)
  • SMD solder connection
  • Wire connection cross section from AWG 28 to AWG 14
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • CSA
  • UL

Applications

  • Compliant

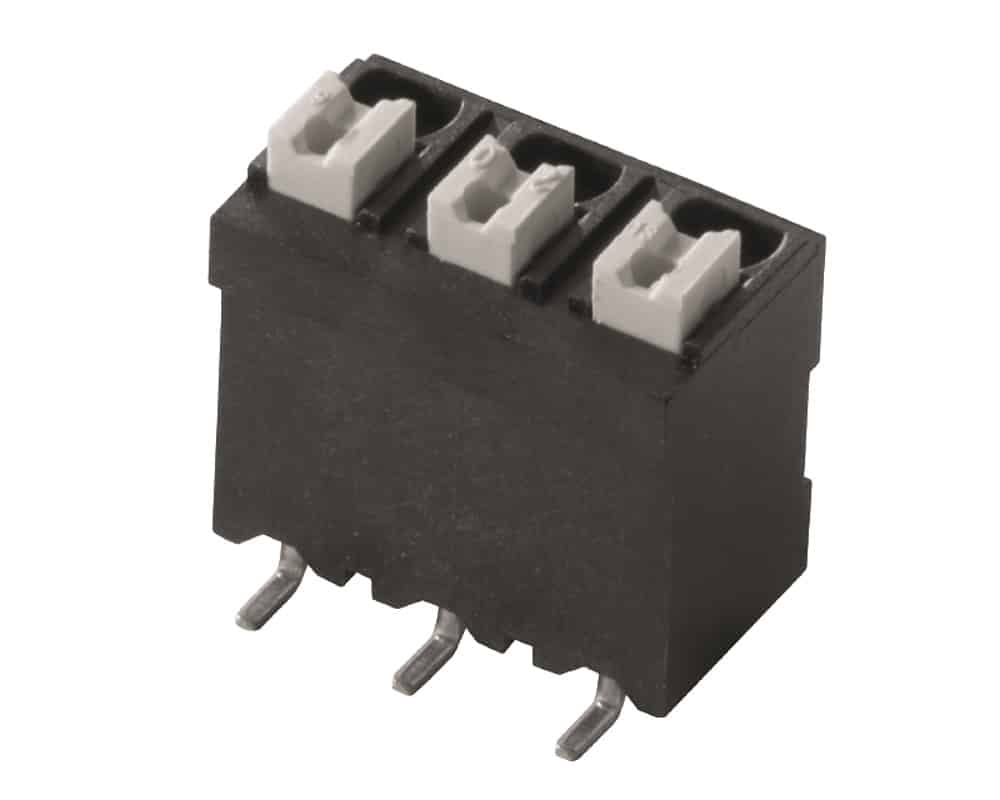

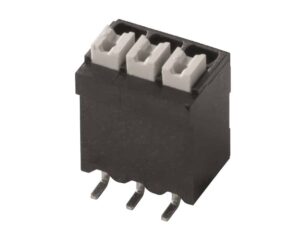

The LSF-SMD 5.00/180 PCB terminal series from Weidmüller’s Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180°, and a choice from 2 up to 12 poles and a 5mm pitch. The LSF-SMD 5.00/180 series from Weidmüller have a fully automatic assembly using reflow soldering (SMD) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

  • PCB terminal connector
  • Mounting onto PCB with reflow soldering
  • Number of poles available from 2 to 8
  • Pitch of 5mm
  • Conductor outlet direction of 180°
  • Wire connection cross section from AWG 28 to AWG 14
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 5mm to 35mm depending on the number of poles required
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Packaged in tape on reel
  • Temperature range −50°C to +120°C

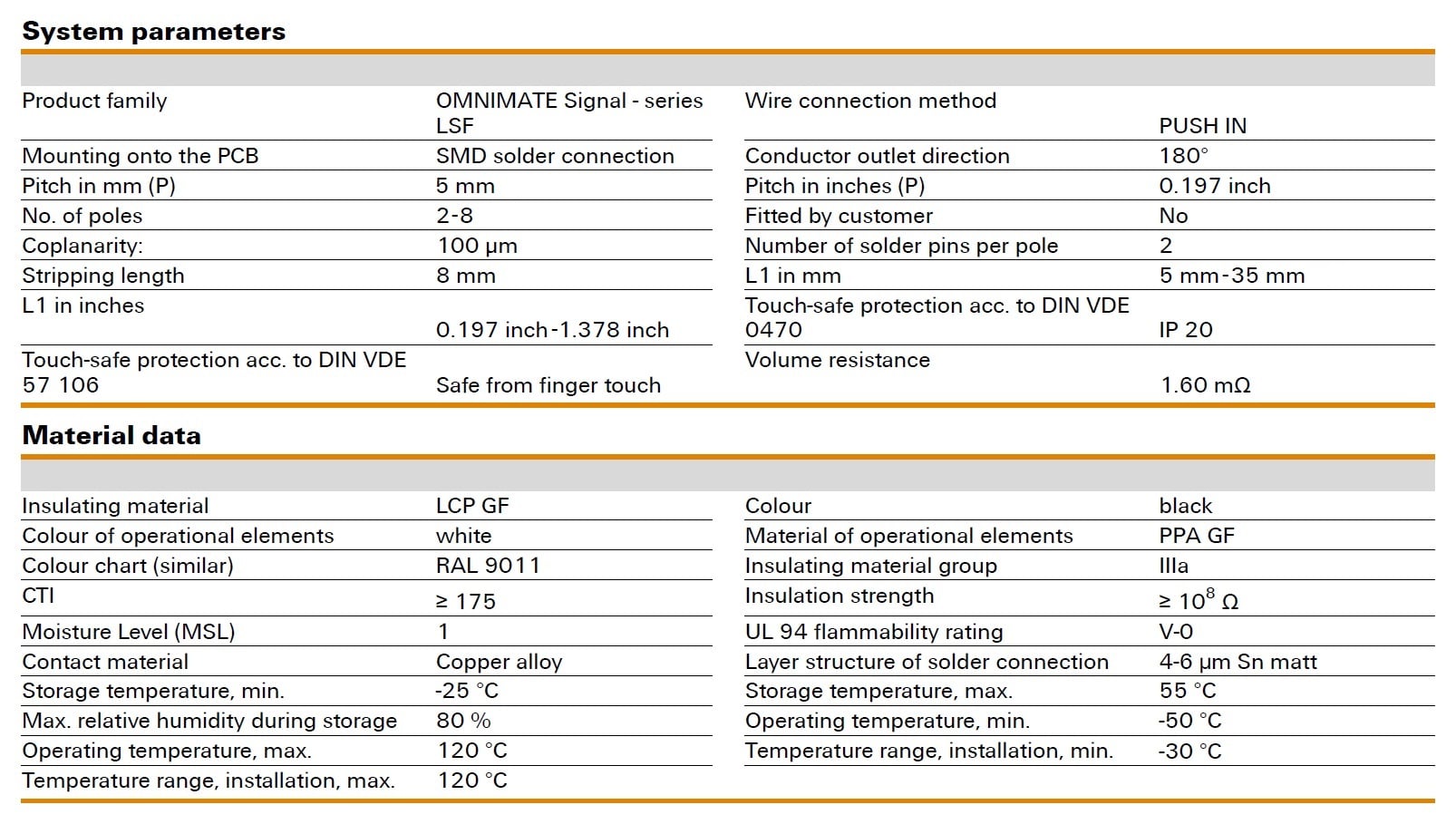

The below table gives the specifications of the Weidmüller LSF-SMD 5.00/180 PCB terminal series:

Weidmüller LSF-SMD 5.00/180 Specifications

Please see the relevant datasheet in the technical library for the exact specification

Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 0.00000 kg
Dimensions 0.00 x 0.00 x 0.00mm
Colour

Conductor Outlet Direction

Number of Poles

, , , , , ,

Package / Size

Series / Model

Termination / Connection

RoHS Compliant Product – Weidmüller

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Weidmüller LSF-SMD 5.00/180 SN BK RL Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
2 Pole – Weidmüller Omnimate Signal LSF-SMD 5.00/02/180 SN BK RL PCB terminal datasheet
3 Pole – Weidmüller Omnimate Signal LSF-SMD 5.00/03/180 SN BK RL PCB terminal datasheet
4 Pole – Weidmüller Omnimate Signal LSF-SMD 5.00/04/180 SN BK RL PCB terminal datasheet
5 Pole – Weidmüller Omnimate Signal LSF-SMD 5.00/05/180 SN BK RL PCB terminal datasheet
6 pole – Weidmüller Omnimate Signal LSF-SMD 5.00/06/180 SN BK RL PCB terminal datasheet
7 Pole – Weidmüller Omnimate Signal LSF-SMD 5.00/07/180 SN BK RL PCB terminal datasheet
8 Pole – Weidmüller Omnimate Signal LSF-SMD 5.00/08/180 SN BK RL PCB terminal datasheet
