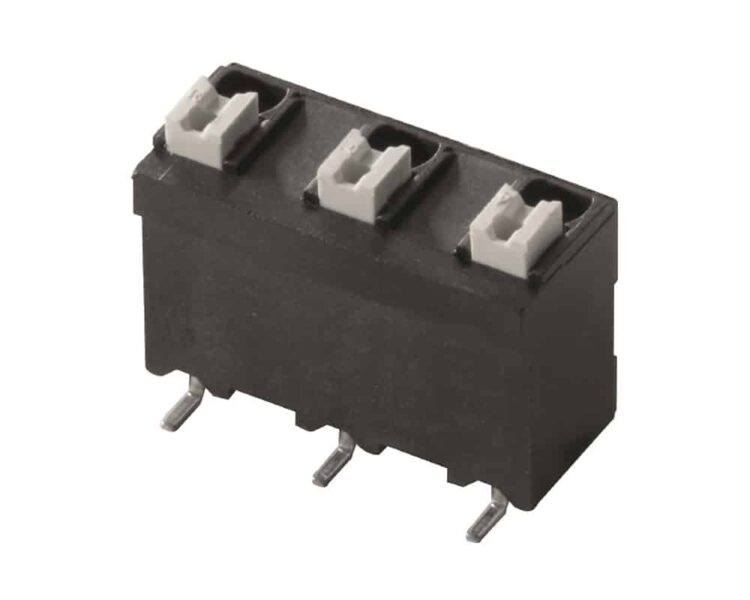

Weidmüller LSF-SMD 7.50/180 Series

PCB terminal connector
Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)

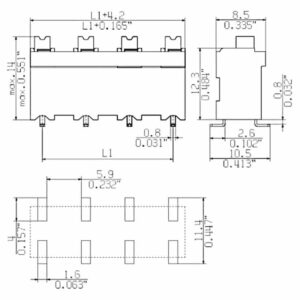

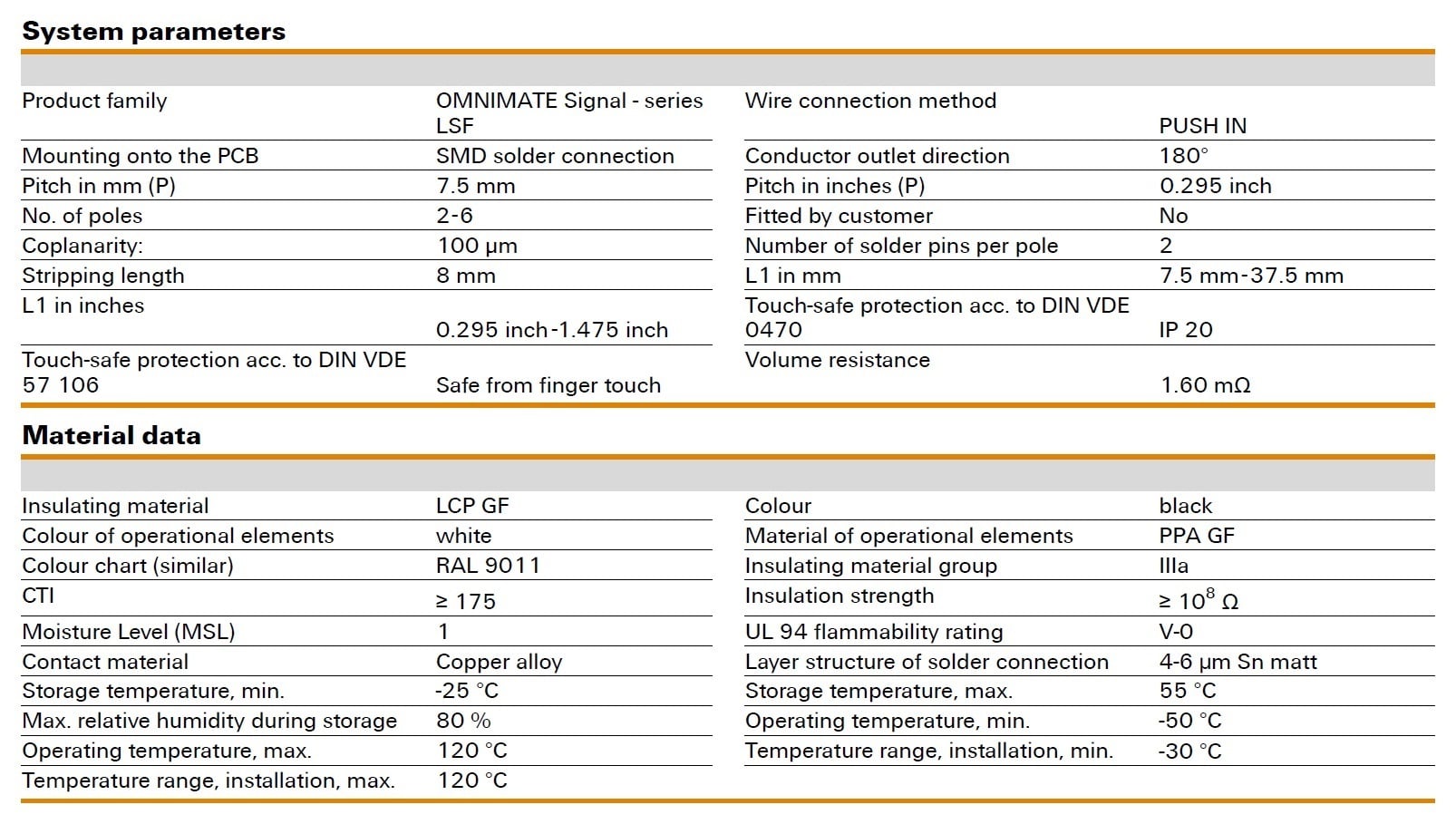

Dimensions of L1 7.5mm to 37.5mm (depending on the number of poles required)
SMD solder connection
Wire connection cross section from AWG 28 to AWG 14
Temperature range of −50°C to +120°C
CSA and UL 1059 approved, IEC listed
