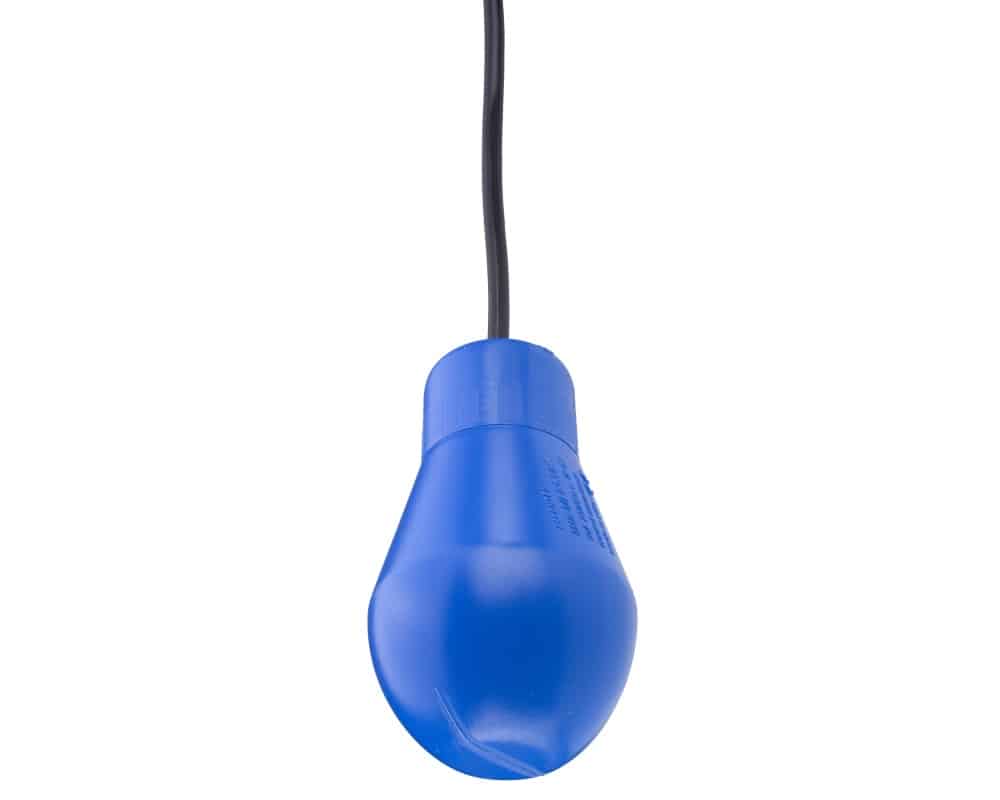

Cynergy3 LITTLE-EX Float Switch Series

  • Cynergy3

Product Features

  • Cable end float switches
  • ATEX Ex II 1 G Ex ia IIC T6 certified for use in Hazardous areas
  • High density polyethylene body
  • Self-cleaning body
  • Choice of cable length – 5m, 10m or 20m
  • Unaffected by humidity, condensation and temperature changes
  • ATEX

Applications

The LITTLE-EX series of cable end float switches by Cynergy3 utilises a self-cleaning switching element to enable switching insensitive to humidity or condensation and hence use in widely fluctuating temperatures. These float switches are ATEX Ex II 1 G Ex ia IIC T6 certified and designed for use in hazardous areas. The switch is housed within a high density polyethylene floating body (please refer to the Chemical compatibility chart in Technical library) with centre of gravity carefully positioned near the cable entry. The LITTLE-EX series is supplied with 5m, 10m or 20m length of cable and can be operated in temperatures between -20°C and +40°C.

  • ATEX certified cable end float switch
  • Supplied with 5m, 10m or 20m cable
  • Self-cleaning design prevents buildup of solids
  • Switching element not affected by rapid temperature changes, humidity or condensation
  • Temperature range of -20°C to 40°C
  • It is necessary to use an Exia barrier with these switches
  • Contact form: C/O



Typical applications for the Cynergy3 LITTLE-EX float switches include:

  • Water tanks
  • Industrial waste water
  • Sewage

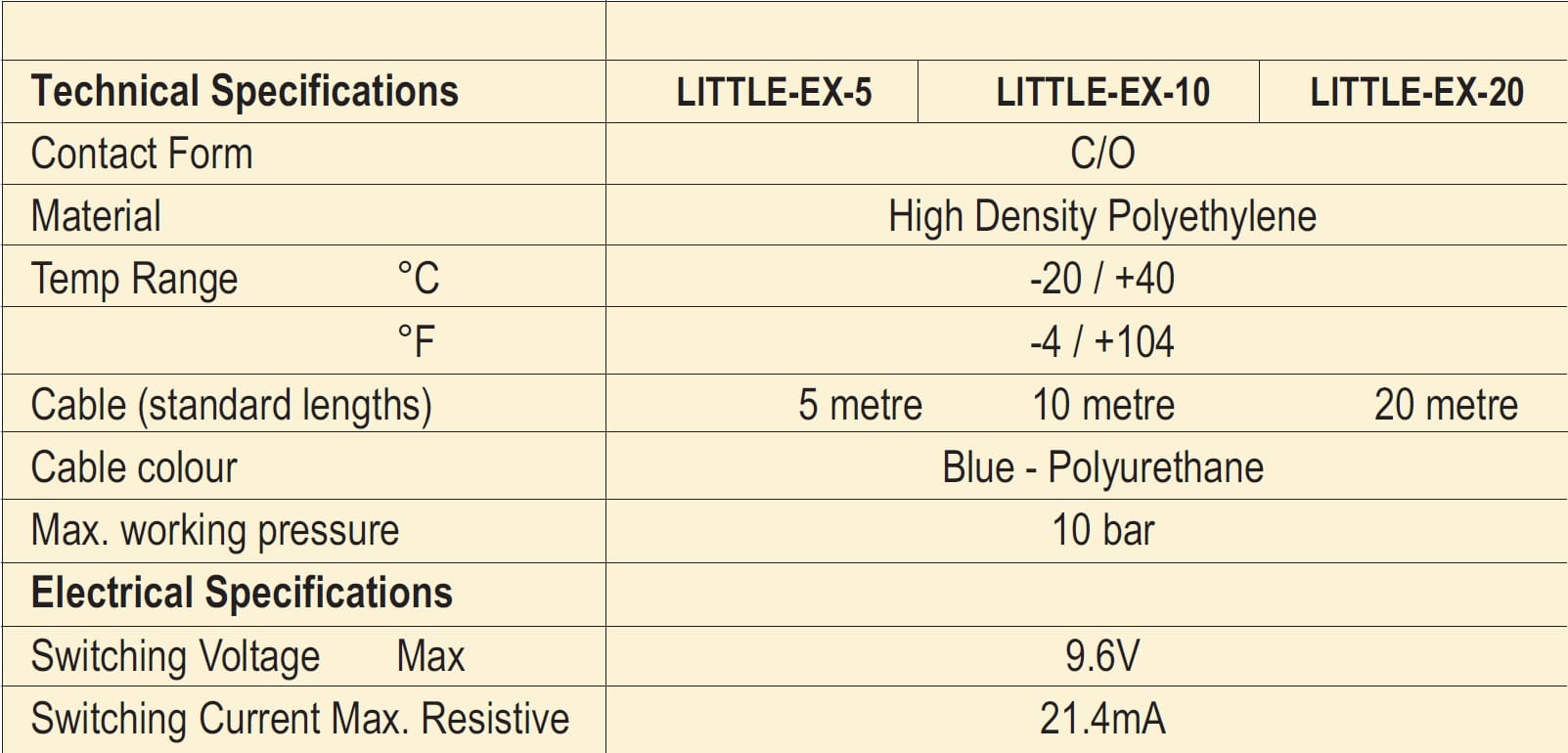

The below table gives the full specifications for each resistor model available including the Cynergy3 LITTLE-EX series:

Cynergy3 LITTLE-EX series specifications



Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 1600.00000 kg

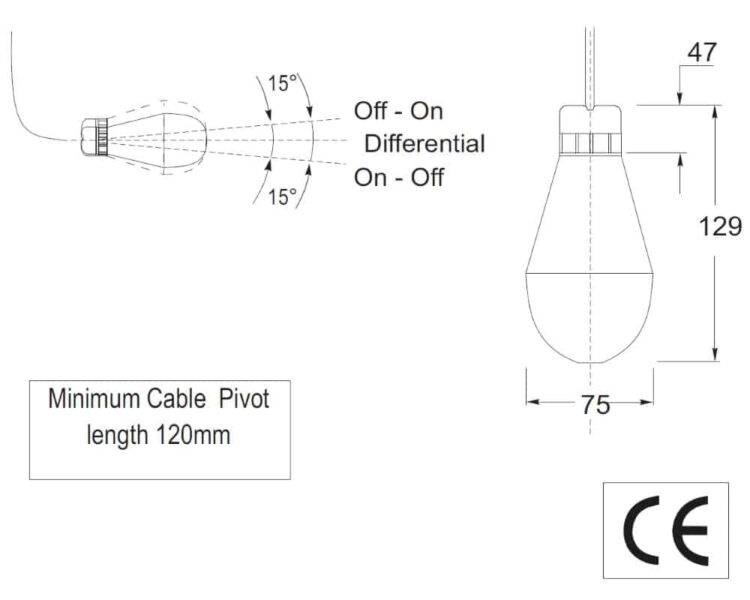

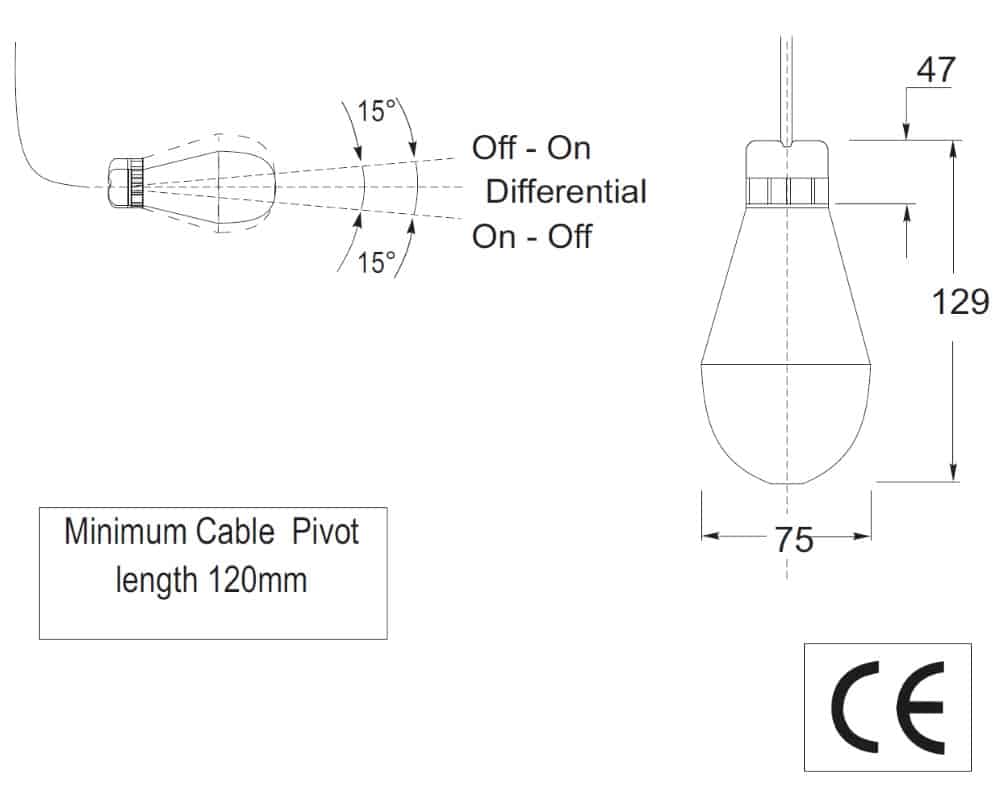

Dimensions 47.00 x 75.00 x 129.00mm
Colour

Configuration

Contact Form

Lead Length

, ,

Series / Model

Temperature Range (°C)

RoHS Compliant Product – Cynergy3

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Cynergy3 LITTLE-EX Series technical library

We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Cynergy3 LITTLE-EX Float Switch Series Datasheet
Chemical Compatibility sheet for Cynergy3 Flow and Float Switches
