Cynergy3 MS Float Switch Series

Cynergy3 MS Float Switch Series
Cynergy3 MS Float Switch Series
Cynergy3 MS Float Switch Series
Cynergy3 MS WRAS Float Switch Series
  • Cynergy3

Product Features

  • Cable end float switches
  • UL, VDE and CENELEC approved microswitch
  • High density polyethylene (HDPE) casing filled with polyurethane
  • 5m cable supplied – PVC (standard) or PUR (for use in fuel oils)
  • Direct power switching
  • Suitable for depths up to 100m
  • UL

Applications

  • Oil & Gas

Description

The MS series of cable end float switches by Cynergy3 utilises a microswitch element activated by a moving stainless steel ball with lifetime of 200,000 operations. The switch is hermetically sealed within a HDPE casing filled with non-hygroscopic closed-cell polyurethane, enabling it to work as much as 100m deep in water. The MS series features a selection of contact forms (n/o, n/c and c/o), direct switching power and protective earth conductor included as standard (except for c/o versions). The switching element is UL, VDE and CENELEC approved. The switches are supplied with 5m length of PVC or PUR (suitable for use in fuel oils) cable with and can be operated in temperatures between 0°C and +45°C.

  • Cable end float switch
  • Microswitch switching element is UL, VDE and CENELEC approved
  • Maximum switching voltage of 250Vac and 24Vdc
  • Selection of normally-open, normally-closed and changeover contact forms
  • Temperature range of 0°C to 45°C
  • Selection of standard PVC cable or PUR cable suitable for use in fuel oils
  • Direct power switching
  • Cable mounting
  • 100m depth capability



Typical applications for the Cynergy3 MS series of float switches include:

  • Large tanks, cisterns and reservoirs
  • Direct installation on submersible pumps



The below table gives the full specifications for each resistor model available including the Cynergy3 MS series:

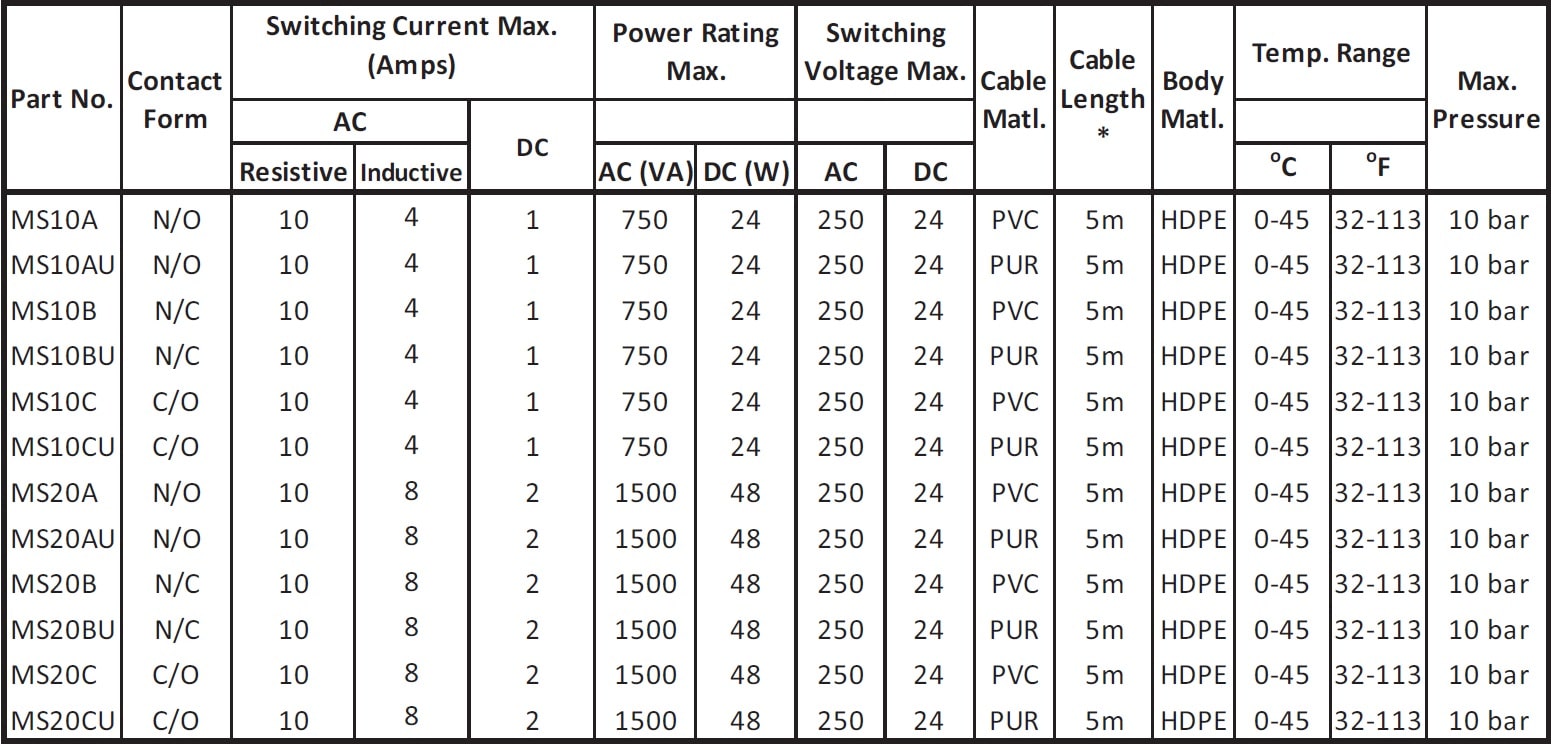

Cynergy3 MS series specifications



Specifications

Weight 800.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Series / Model

Temperature Range (°C)

Colour

,

Configuration

Pressure Range

Inductive Switching Current

,

Contact Form

,

Cable Type

,

RoHS Compliant Product – Cynergy3

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Cynergy3 MS series Ordering Info

Below is a part number break down for the Cynergy3 MS Float Switch Series:

Cynergy3 MS Series ordering information

Cynergy3 MS Series technical library

We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Cynergy3 MS Float Switch Series Datasheet
Chemical Compatibility sheet for Cynergy3 Flow and Float Switches

Cynergy 3 Video Library

We are pleased to provide you with a range of videos, please see below for the latest content available:

Sensata & Cynergy3 – Empowering Innovations

More information about Sensata Technologies and Cynergy3 and the products they have to offer.

Sensata & Cynergy3 – Wireless Sensors

More information about the capabilities and benefits of suing wireless technologies to advance your sensor solutions.
