Cynergy3 RSF54 PP Internal Fitting Float Switch Series

  • Cynergy3

Product Features

  • Polypropylene Compact Internal Fitting Float Switch Series
  • Compact design for size sensitive applications
  • 100cm PVC 16/0.2 leadouts
  • WRAS & NSF approved
  • UL

Applications

  • Rhopoint Energy
  • Test and Measurement

Description

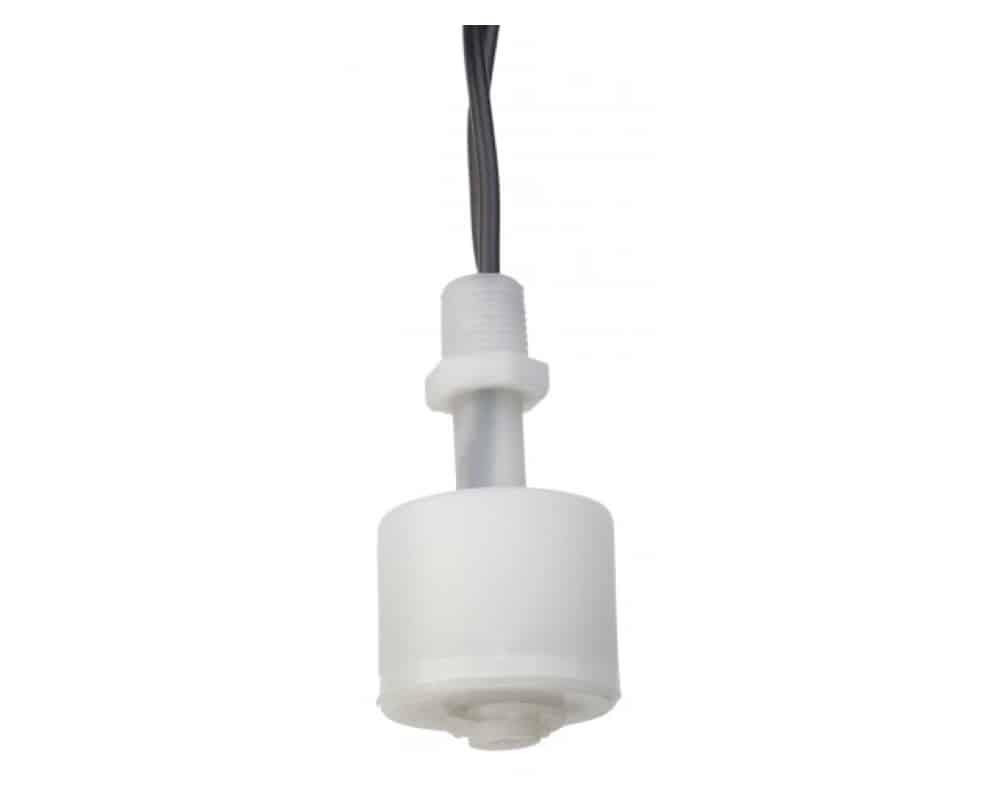

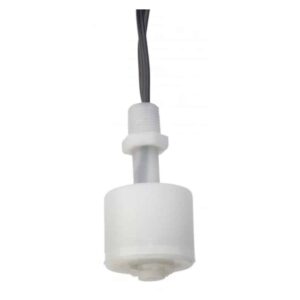

The RSF54 internal fitting Polypropylene (PP) float switches are part of the RSF50 series offering compact design and a number of options including choice of maximum power (25VA or 100VA) and mounting (1/8″ mounting thread or M12 connector with nitrile gasket). The RSF54 switches can be mounted either from the bottom or from the top of the tank and therefore access to the inside of the tank is required. The switch action may be reversed by removing the float, inverting it and refitting to the stem. The RSF54 float switches are WRAS and NSF approved and can be operated in temperature range between -20°C and +100°C.

  • Compact Internal Fitting Float Switches

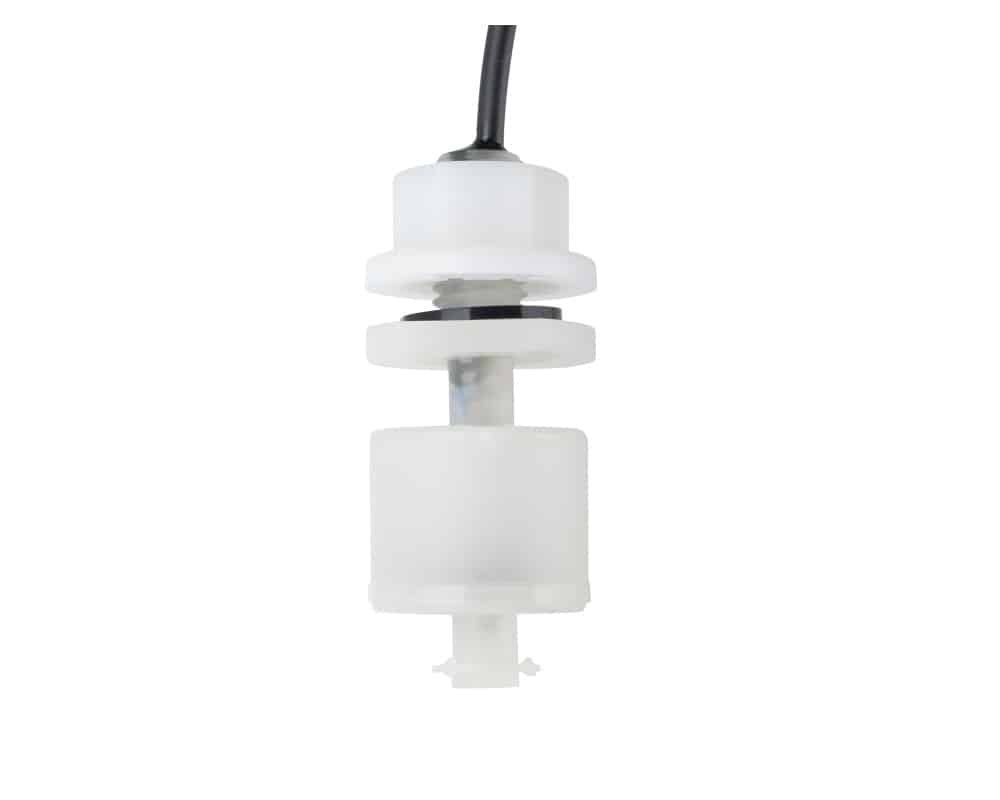

  • Opaque polypropylene body, M12 version supplied with with nitrile gasket  (see Chemical Compatibility sheet in Technical library for suitability with liquid media)
  • Supplied with 100cm PVC 16/0.2 leadouts
  • Switching action reversible by inverting the float
  • Selection of maximum power rating – 25VA or 100VA
  • Temperature range between -20°C and +100°C
  • Selection of 1/8″ NPT mounting thread or M12x1.75 electrical connection

Typical applications for the Cynergy3 RSF50 series of float switches include:

  • Size sensitive applications
  • Vending machines
  • Printing machines
  • Chemical dosing equipment

Customisation is available on this product – speak to our technical sales team to discuss your requirement.

The below table gives the full specifications for the Cynergy3 RSF50 series including the RSF54 switches:

Cynergy3 RSF50 series specifications


Specifications

Weight 16.00000 kg
Dimensions 66.00 × 30.00 × 30.00 mm
Power Rating

,

Additional Features

Temperature Range (°C)

Colour

Termination / Connection Type

,

Switching Power

,

Contact Form

Gasket Option

,

RoHS Compliant Product – Cynergy3

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Cynergy3 RSF50 series Ordering Info

Below is a list of available part numbers within the Cynergy3 RSF50 Float Switch Series:

Cynergy3 RSF50 Series ordering information

Cynergy3 RSF50 Series technical library

We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Cynergy3 RSF50 Compact Internal Fitting Float Switch Series Datasheet
Chemical Compatibility sheet for Cynergy3 Flow and Float Switches
How to select a correct float switch
Installation notes for Cynergy3 Float Switches
How to protect reed switch contacts from specific loads
Cynergy3 Liquid Sensors Application note: Pump Control Circuit for Automatic Tank Filling 1
Cynergy3 Liquid Sensors Application note: Pump Control Circuit for Automatic Tank Filling 2
Cynergy3 Liquid Sensors Application note: Pump Control Circuit for Automatic Tank Emptying
