Cynergy3 RSF87 PVDF Compact External Fitting Float Switch Series

  • Cynergy3

Product Features

  • PVDF Compact External Fitting Float Switch Series
  • Compact design for size sensitive applications
  • UL and NSF approved
  • UL

Applications

  • Test and Measurement

Description

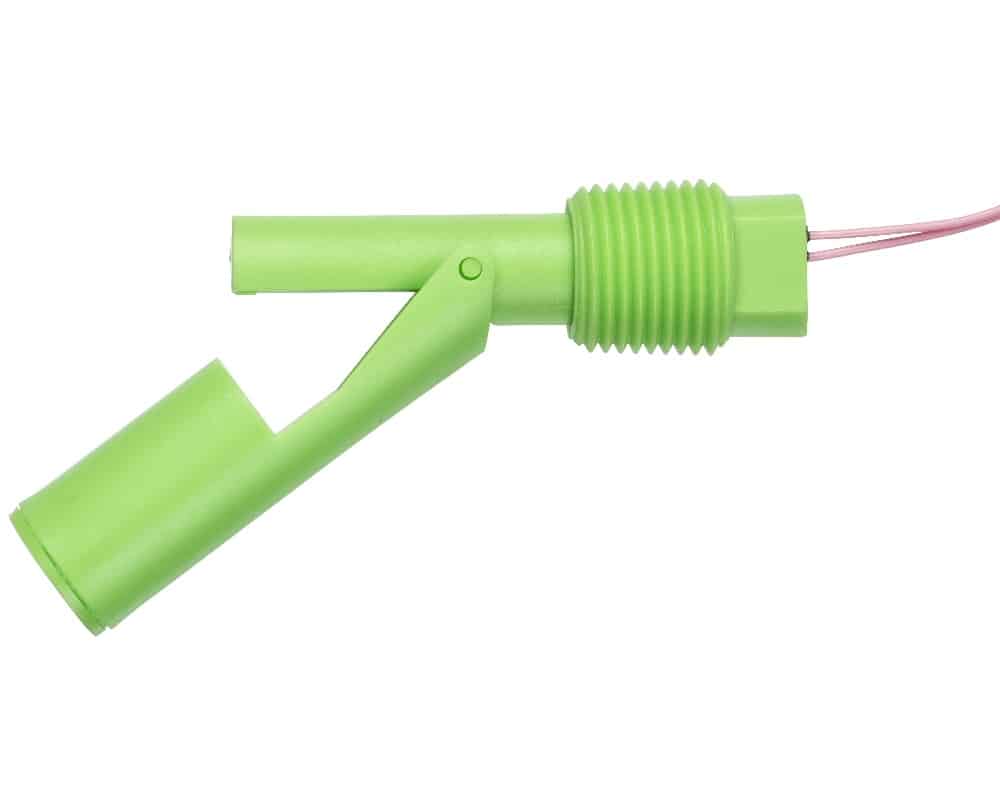

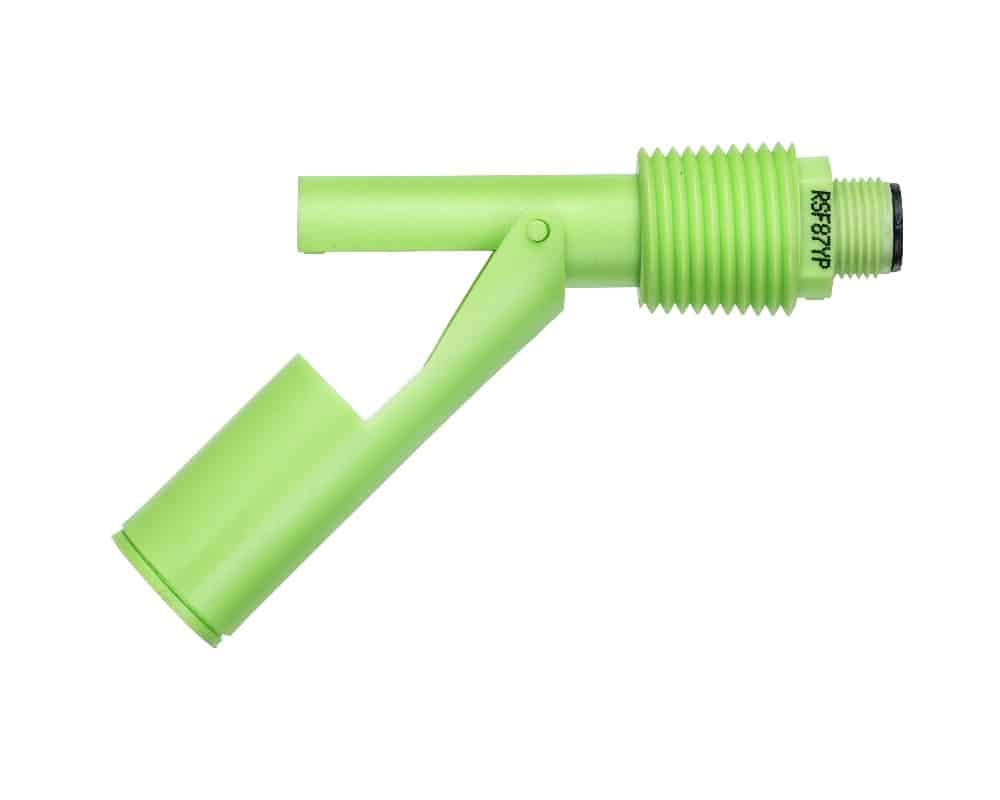

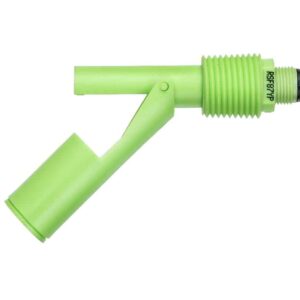

The RSF87 external fitting Polyvynilidene Fluoride (PVDF) float switches are part of the RSF80 series offering compact design and options including maximum switching power (25VA or 100VA) and mounting (flying leads or M12 connector). As these switches are mounted through the tank wall via 1/2″ NPT thread, access to the inside of the tank is not necessary. The switch action may be reversed by rotating the switch by 180° (make on rise – N/O or make on fall – N/C) and can be operated in temperature range between -10°C and +105°C.

  • Compact External Fitting Float Switches
  • Green polyvinylidene (PVDF) body (see Chemical Compatibility sheet in Technical library for suitability with liquid media)
  • Switching action reversible by simply rotating the device
  • Selection of maximum power rating – 25VA or 100VA
  • Temperature range between -10°C and +105°C
  • Selection of M12 connector or 100cm PTFE 7/0.2 leadouts
  • UL and NSF approved



Typical applications for the Cynergy3 RSF80 series of float switches include:

  • Diesel generators
  • Hydraulic oil level measurement
  • Gearbox oil level measurement



Customisation is available on this product – speak to our technical sales team to discuss your requirement.



The below table gives the full specifications for the Cynergy3 RSF80 series including the RSF87 switches:

Cynergy3 RSF80 series specifications



Specifications

Weight 35.00000 kg
Dimensions 100.00 × 18.00 × 18.00 mm
Power Rating

,

Additional Features

PVDF Compact External Fitting Float Switch Series Compact design for size sensitive applications UL and NSF approved

Series / Model

Temperature Range (°C)

Colour

Termination / Connection Type

,

Switching Power

,

Contact Form

RoHS Compliant Product – Cynergy3

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Cynergy3 RSF80 series Ordering Info

Below is a list of available part numbers within the Cynergy3 RSF80 Float Switch Series:

Cynergy3 RSF50 Series ordering information

Cynergy3 RSF80 Series technical library

We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Cynergy3 RSF80 Compact External Fitting Float Switch Series Datasheet
Chemical Compatibility sheet for Cynergy3 Flow and Float Switches
How to select a correct float switch
Installation notes for Cynergy3 Float Switches
How to protect reed switch contacts from specific loads
Cynergy3 Liquid Sensors Application note: Pump Control Circuit for Automatic Tank Filling 1
Cynergy3 Liquid Sensors Application note: Pump Control Circuit for Automatic Tank Filling 2
Cynergy3 Liquid Sensors Application note: Pump Control Circuit for Automatic Tank Emptying
