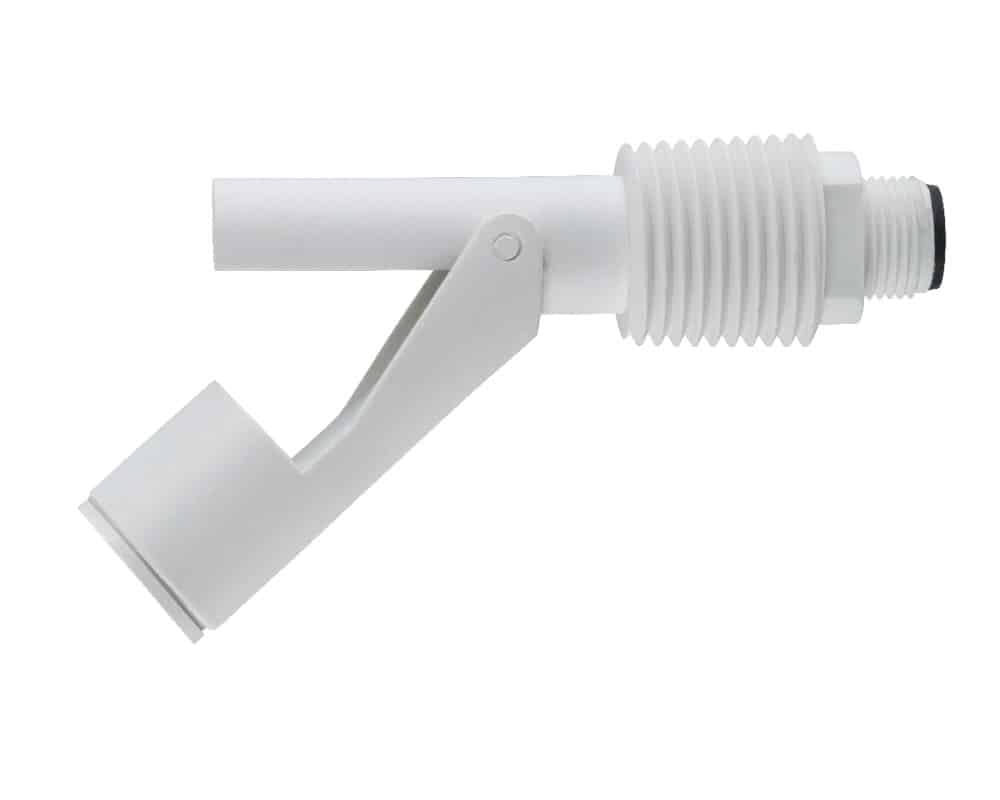

Cynergy3 RSF88 PP External Fitting Float Switch Series

  • Cynergy3

Product Features

  • PP Compact External Fitting Float Switch Series
  • Compact design for size sensitive applications
  • UL approved
  • UL

Applications

  • Test and Measurement

Description

The RSF88 external fitting Polypropylene (PP) float switches are part of the RSF80 series offering compact design and a choice of maximum switching power (25VA or 100VA) and mounting (flying leads or M12 connector). As these switches are mounted through the tank wall via 1/2″ NPT thread, access to the inside of the tank is not necessary. The switch action may be reversed by rotating the switch by 180° (make on rise – N/O or make on fall – N/C) and can be operated in temperature range between -10°C and +105°C.

  • Compact External Fitting Float Switches
  • White polypropylene body (see Chemical Compatibility sheet in Technical library for suitability with liquid media)
  • Switching action reversible by simply rotating the device
  • Selection of maximum power rating – 25VA or 100VA
  • Temperature range between -10°C and +105°C
  • Supplied with 100cm PVC 16/0.2 leadouts or circular M12 connector socket
  • UL approved



Typical applications for the Cynergy3 RSF80 series of float switches include:

  • Diesel generators
  • Hydraulic oil level measurement
  • Gearbox oil level measurement



Customisation is available on this product – speak to our technical sales team to discuss your requirement.

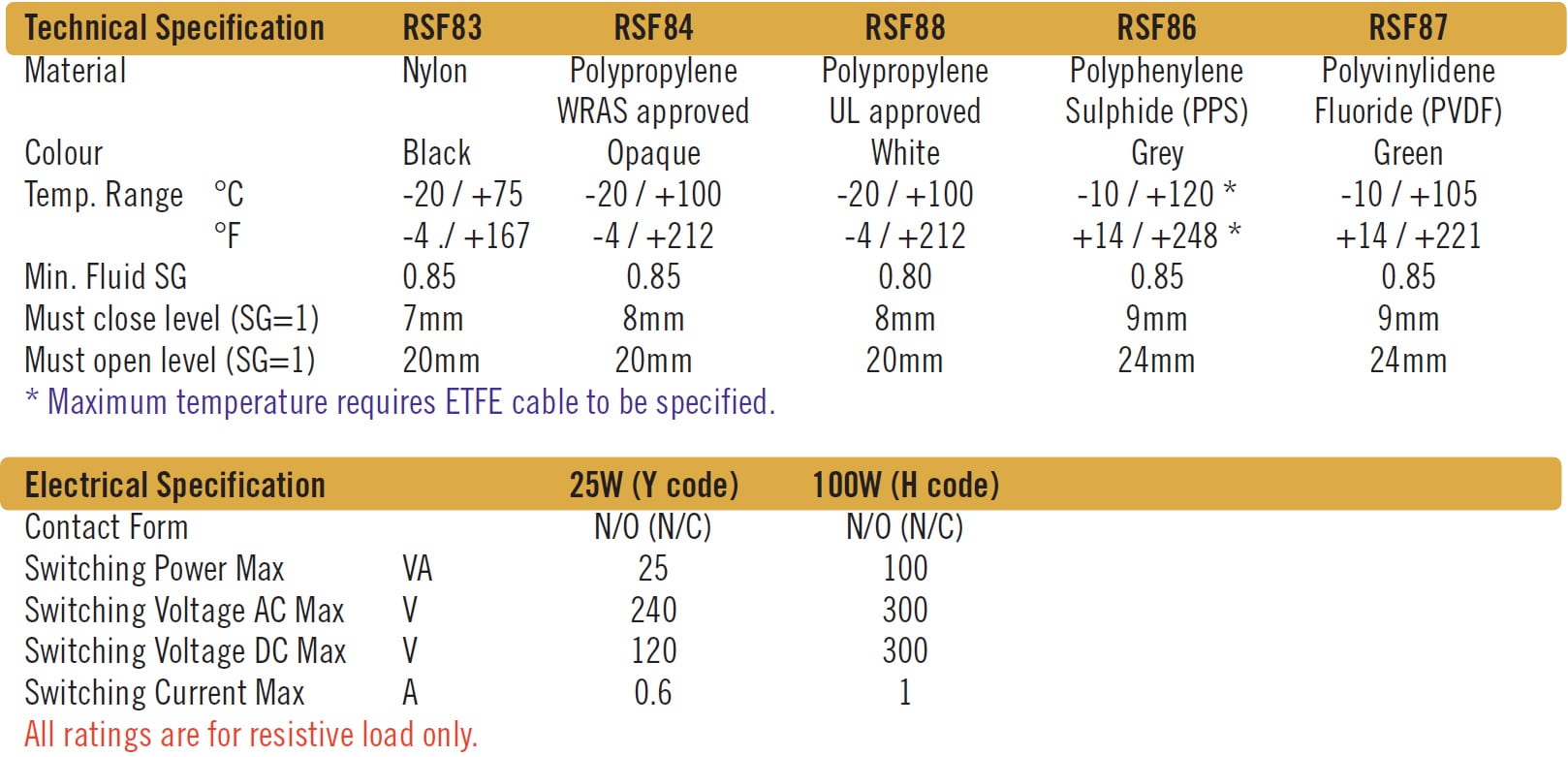

The below table gives the full specifications for the Cynergy3 RSF80 series including the RSF88 switches:

Cynergy3 RSF80 series specifications



Specifications

Weight 19.00000 kg

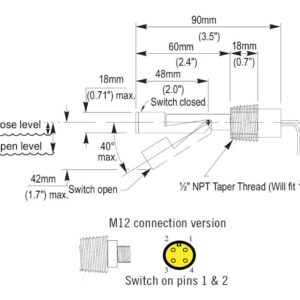

Dimensions 18.00 x 18.00 x 90.00mm
Power Rating

,

Series / Model

Temperature Range (°C)

Colour

Termination / Connection Type

,

Switching Power

,

Contact Form

RoHS Compliant Product – Cynergy3

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Cynergy3 RSF80 series Ordering Info

Below is a list of available part numbers within the Cynergy3 RSF80 Float Switch Series:
