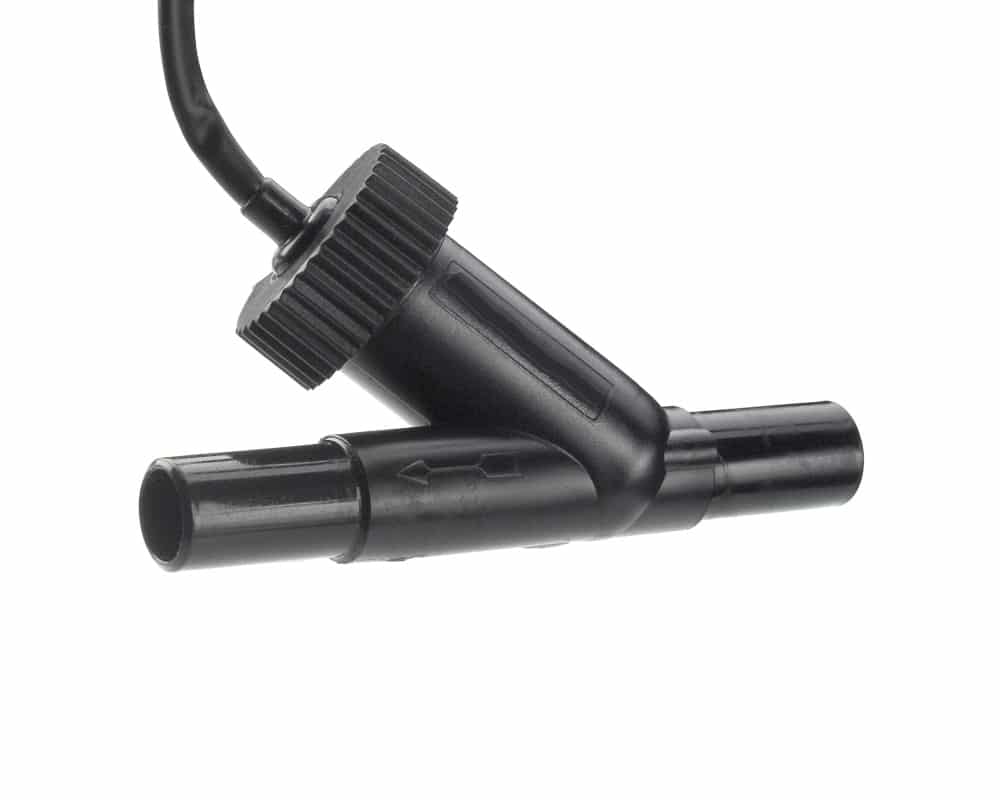

Cynergy3 FS15 Flow Switch Series

  • Cynergy3

Product Features

  • Inline, normally-open flow switches
  • WRAS Approved up to 60°C
  • Operating pressure up to 10 bar
  • Made of acetal resin (refer to chemical compatibility chart in Technical Library)
  • Can be mounted horizontally or vertically (upward flow)
  • UL

Applications

The FS15 series of normally open flow switches by Cynergy3 utilises a fixed reed switch and a moving magnet to enable accurate flow detection, while ensuring minimal fluid flow restriction. These inline switches are designed for operation in liquid flow systems with pressure of up to 10 bar (not suitable for systems containing significant amount of solid particles) and come in 15mm tube size with a low-flow version available. The FS15 series flow switches can be operated in temperatures of up to 85°C and are WRAS approved for use in cold and hot water up to 60°C.

  • Normally open, inline flow detection switches
  • 15mm tube size

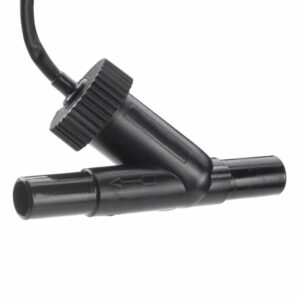

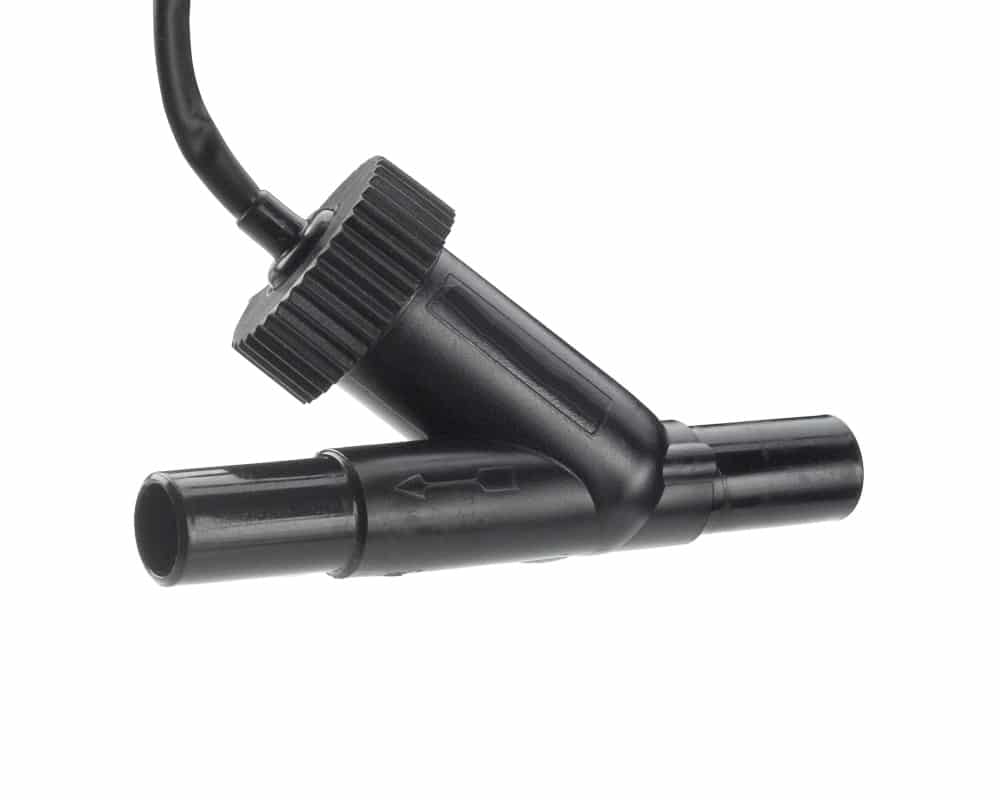

  • Low flow version available
  • Maximum operating pressure of 10 bar
  • Temperature range of -20°C to 85°C (WRAS approved to 60°C)
  • Maximum switching voltage of 240V AC and 120V DC
  • Can be mounted with horizontal or vertical (upward) flow direction

Customisation is available on this product – speak to our technical sales team to discuss your requirement.

The below table gives the full specifications for each resistor model available including the Cynergy3 FS15 series:

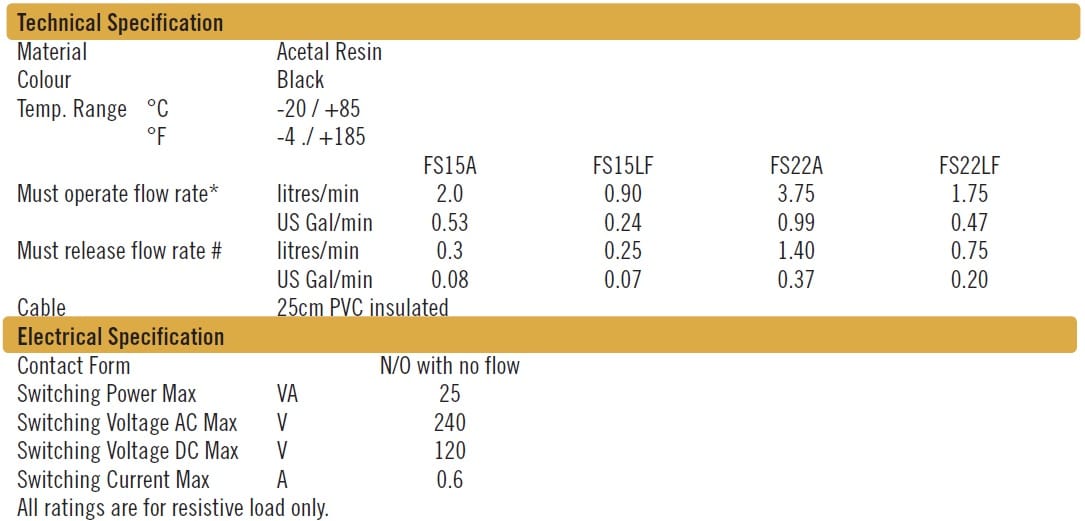

Cynergy3 FS15 series specifications


Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 56.00000 kg

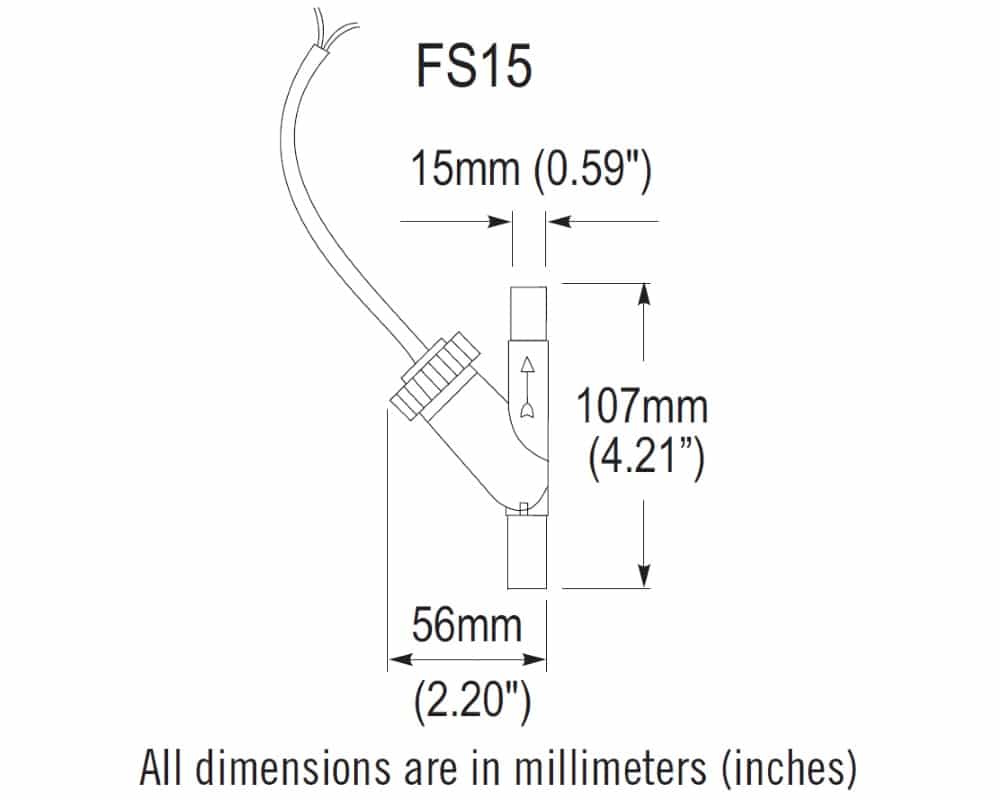

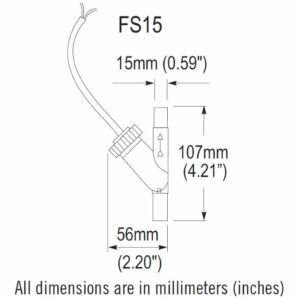

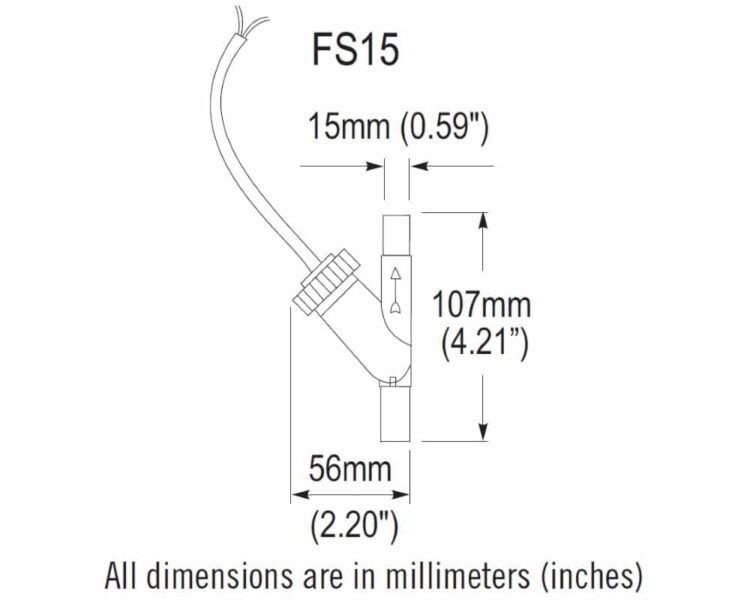

Dimensions 15.00 x 107.00 x 56.00mm
Colour

Package / Size

Series / Model

Temperature Range (°C)

Version

,

Voltage Rating

,

RoHS Compliant Product – Cynergy3

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Cynergy3 FS series Ordering Info

Below is a part number break down for the Cynergy3 FS Flow Switch series:

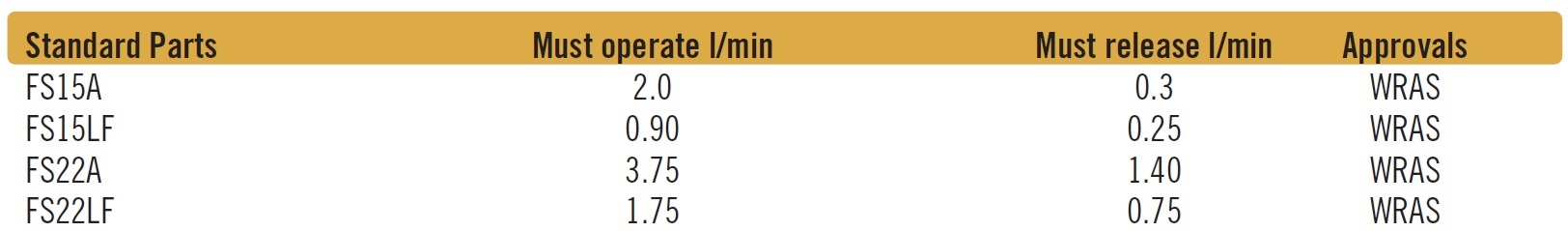

Cynergy3 FS Series ordering information

Cynergy3 FS Series technical library

We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Cynergy3 FS Flow Switch Series Datasheet
Chemical compatibility sheet for Cynergy3 switches and sensors
