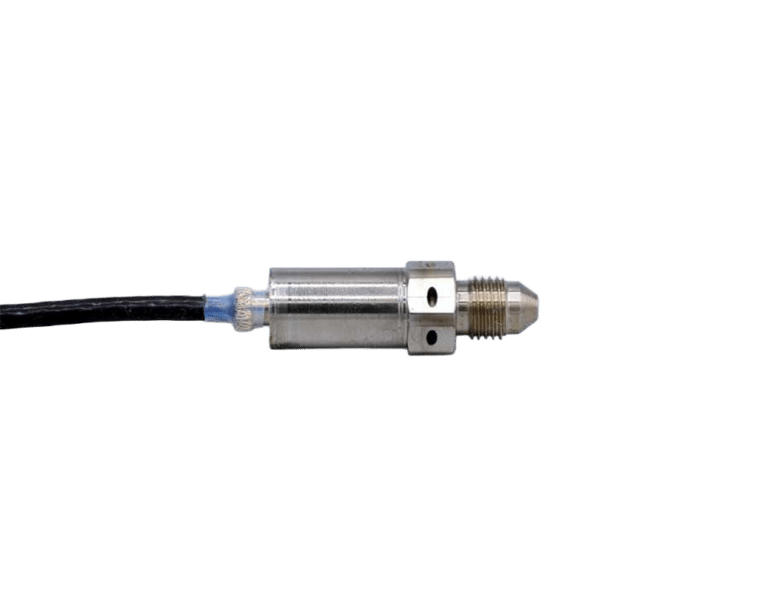

Actively compensated miniature pressure transmitter

The ICS-NH MPT 6 Series is an actively compensated miniature pressure transmitter designed for demanding applications where compact size, high pressure capability and flexible output options are required. It uses a thin film stainless steel 17-4PH pressure sensor welded directly to the pressure port, with ASIC-based signal conditioning for application-ready electrical outputs. The transmitter supports pressure ranges from 0 to 30psi to 0 to 15,000psi, with the final pressure range defined by the customer and absolute pressure available on request. Housing materials include stainless steel options such as 304 or 316, while the sensing element is manufactured from 17-4PH stainless steel for robust pressure measurement in harsh environments. The MPT 6 Series offers several actively conditioned output options, including 0.5 to 4.5V ratiometric, 0.5 to 4.5V fixed, 0 – 10V fixed, 4 to 20mA current output, and digital I²C or SPI outputs. The ASIC also provides reverse polarity protection, short-circuit protection, EMC/ESD robustness, AEC-Q100 qualification and high voltage protection up to 33V.

For extreme temperature applications, a bridge output version is also available. These units can be supplied with a mathematical compensation model or remote electronics for a fully compensated configuration, supporting use where the sensing element operates beyond the normal electronics temperature range.

Key Features

• Actively compensated miniature pressure transmitter
• ASIC-based signal conditioning
• Pressure range: 0 to 30 psi to 0 to 15,000 psi
• Pressure type: gauge as standard; absolute pressure on request
• Supply voltage: 5 to 32VDC, depending on output option
• Supply current: 2mA ±20% for bridge output
• Supply current: <10mA for voltage output options
• Output options: 0.5 to 4.5V ratiometric, 10–90% Vss, 0.5 to 4.5V fixed, 0 to 10V fixed, 4 to 20mA, bridge, I²C and SPI
• Nonlinearity: <±0.5% FS, with <±0.25% FS optional
• Hysteresis: <0.2% FS
• Repeatability: <0.1% FS
• Non-destructive pressure overload: 2× nominal pressure
• Burst pressure: 5× nominal pressure
• Wetted material: 17-4PH stainless steel sensing element
• Housing material: stainless steel, e.g. 304 or 316
• Pressure port options: M6, M8×1, M10×1, MS-33656 -2, -3, -4 or custom
• Electrical connection options: cable or custom
• Vibration tested to DO-160 Cat. H and R
• Maximum vibration tested up to 50g / 2kHz
• ASIC protection features include reverse polarity, short-circuit, EMC/ESD and high voltage protection

Application Industries and Use Cases

• Industrial Pressure Measurement: Compact, actively conditioned pressure monitoring in hydraulic, pneumatic and process control systems.
• Aerospace & Transport Systems: Pressure measurement in vibration-prone environments requiring DO-160 tested transmitter performance.
• High-Pressure Test Systems: Integrated pressure measurement for test rigs, validation systems and laboratory instrumentation.
• Custom Pressure Transducers: Configurable pressure range, output, temperature, port and electrical options for application-specific designs.
