Differential series

  • ICS-NH

ICS-NH DPH100 Series

SOI differential pressure sensor with 0 to 400kPa range, 300 bar static pressure capability and <1ms response. Features 75mVDC output, 316L stainless steel media contact and -65ยฐC to +170ยฐC operation.

ICS-NH MPT4A Miniature Pressure Transmitter

  • Miniature pressure transmitter with extremely compact design
  • Pressure ranges from 0โ€“30 psi up to 0โ€“3,000 psi
  • Ratiometric output 0.5โ€“4.5 V @ 5 V supply
  • Supply voltage 4.5โ€“5.5 V DC
  • Fast response time 0.1 ms
  • Stainless steel construction with multiple connection options
  • ICS-NH

ICS-NH MPT6 Series

Miniature actively compensated pressure transmitter with 0 to 30 psi to 0 to 15,000 psi ranges and 5 to 32VDC supply. Offers voltage, current, bridge, IยฒC and SPI outputs with DO-160 Cat. H/R vibration testing
  • ICS-NH

ICS-NH MPT6C Series Cryogenic Pressure Transmitter

  • Cryogenic pressure transmitter for extreme temperature applications
  • Pressure ranges from 2 bar to 2,000 bar
  • Operating temperature from โˆ’200 ยฐC to +260 ยฐC
  • Multiple output options including voltage, current and digital
  • Fully welded stainless steel construction
  • Vibration tested to DO-160 Cat. H and R
  • ICS-NH

ICS-NH PTM-10 Miniature Pressure Temperature Transmitter

  • Combined pressure and temperature transmitter in miniature design
  • Pressure ranges from 0โ€“30 psig up to 0โ€“8,700 psig
  • Ratiometric pressure output 0.5โ€“4.5 V @ 5 V supply
  • Integrated PT1000 2-wire temperature output
  • Operating temperature range โˆ’40 ยฐC to +150 ยฐC (approx.)
  • Stainless steel housing with multiple connection options
  • Core Sensors

Core Sensors CS14 Series

  • Wet/wet differential pressure transducer
  • Differential pressure ranges up to 300 PSI
  • Line pressure up to 500 PSI
  • Accuracy of โ‰คยฑ0.25% BFSL at 25ยฐC
  • Stability of โ‰คยฑ0.25% of FS
  • Pressure cycles of 4 million
  • Overpressure of 2x or 500 PSI
  • Core Sensors

Core Sensors CS54 Series

  • Non-Incendive Differential Pressure Transducer
  • Differential pressure up to 50 PSI
  • Line pressure up to 500 PSI
  • Accuracy of โ‰คยฑ0.25% BFSL / โ‰คยฑ0.5% BFSL (2 PSI & below)
  • Overpressure of 2X or 500 PSI (whichever is less)
  • Temperature range โˆ’40ยฐC to +80ยฐC
  • Media temperature of -40 to +125ยฐC
  • Core Sensors

Core Sensors CS84 Series

  • Intrinsically safe differential pressure transducer
  • Differential pressure up to 50 PSI
  • Maximum line pressure of 500 PSI
  • Bi-directional pressure ranges
  • Accuracy of โ‰คยฑ0.25% BFSL
  • Stability of โ‰คยฑ0.25% of FS
  • Pressure cycles of 4 million
  • Merit Sensor

Merit Sensor LP1400 Series

  • Uncompensated surface mountable pressure sensor with J-leads
  • Suitable for ultra low pressure sensing applications
  • Designed for clean, dry air and non corrosive gases
  • Sentiumยฎ technology developed to provide a best-in-class operating temperature range and superior stability
  • Merit Sensor

Merit Sensor LP1410 Series

  • Analog compensated output surface mountable pressure sensor with J-leads
  • Suitable for ultra low pressure sensing applications
  • Designed for clean, dry air and non corrosive gases
  • Sentiumยฎ technology developed to provide a best-in-class operating temperature range and superior stability
  • Merit Sensor

Merit Sensor LP1420 Series

  • Digital compensated output surface mountable pressure sensor with J-leads
  • Suitable for ultra low pressure sensing applications
  • Designed for clean, dry air and non corrosive gases
  • Clock speed of 1MHz
  • Supply voltage of 5V
  • Sentiumยฎ technology developed to provide a best-in-class operating temperature range and superior stability

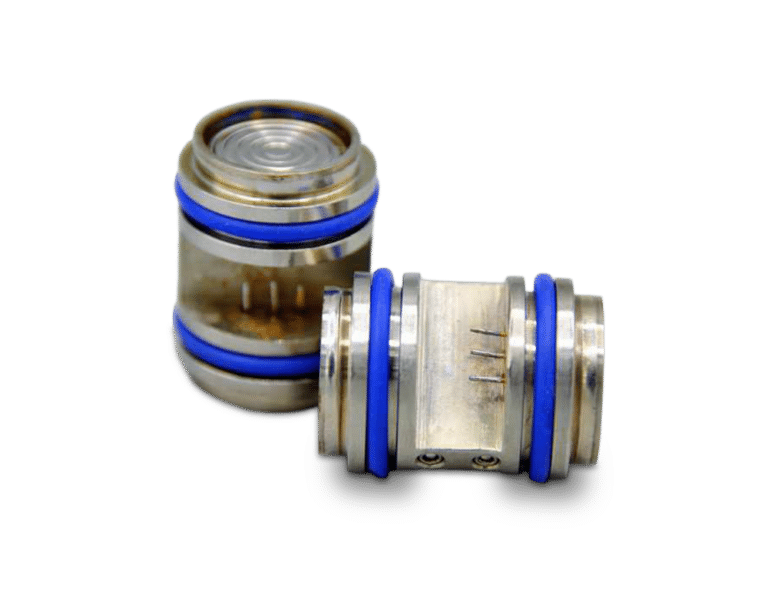

ICS-NH DPH100 Series

Differential pressure sensor
SOI differential pressure sensor with 0 to 400kPa range, 300 bar static pressure capability and <1ms response. Features 75mVDC output, 316L stainless steel media contact and -65ยฐC to +170ยฐC operation.

ICS-NH MPT4A Miniature Pressure Transmitter

MPT4A Miniature Pressure Transmitter MPT4A
  • Miniature pressure transmitter with extremely compact design
  • Pressure ranges from 0โ€“30 psi up to 0โ€“3,000 psi
  • Ratiometric output 0.5โ€“4.5 V @ 5 V supply
  • Supply voltage 4.5โ€“5.5 V DC
  • Fast response time 0.1 ms
  • Stainless steel construction with multiple connection options

ICS-NH MPT6 Series

Actively compensated miniature pressure transmitter
Miniature actively compensated pressure transmitter with 0 to 30 psi to 0 to 15,000 psi ranges and 5 to 32VDC supply. Offers voltage, current, bridge, IยฒC and SPI outputs with DO-160 Cat. H/R vibration testing

ICS-NH MPT6C Series Cryogenic Pressure Transmitter

ICS-NH MPT6C Cryogenic Pressure Transmitter
  • Cryogenic pressure transmitter for extreme temperature applications
  • Pressure ranges from 2 bar to 2,000 bar
  • Operating temperature from โˆ’200 ยฐC to +260 ยฐC
  • Multiple output options including voltage, current and digital
  • Fully welded stainless steel construction
  • Vibration tested to DO-160 Cat. H and R

ICS-NH PTM-10 Miniature Pressure Temperature Transmitter

ICS-NH PTM-10 Pressure Temperature Transmitter
  • Combined pressure and temperature transmitter in miniature design
  • Pressure ranges from 0โ€“30 psig up to 0โ€“8,700 psig
  • Ratiometric pressure output 0.5โ€“4.5 V @ 5 V supply
  • Integrated PT1000 2-wire temperature output
  • Operating temperature range โˆ’40 ยฐC to +150 ยฐC (approx.)
  • Stainless steel housing with multiple connection options

Core Sensors CS14 Series

Wet/Wet Differential Pressure Transducer
  • Wet/wet differential pressure transducer
  • Differential pressure ranges up to 300 PSI
  • Line pressure up to 500 PSI
  • Accuracy of โ‰คยฑ0.25% BFSL at 25ยฐC
  • Stability of โ‰คยฑ0.25% of FS
  • Pressure cycles of 4 million
  • Overpressure of 2x or 500 PSI

Core Sensors CS54 Series

Non-Incendive Differential Pressure Transducer
  • Non-Incendive Differential Pressure Transducer
  • Differential pressure up to 50 PSI
  • Line pressure up to 500 PSI
  • Accuracy of โ‰คยฑ0.25% BFSL / โ‰คยฑ0.5% BFSL (2 PSI & below)
  • Overpressure of 2X or 500 PSI (whichever is less)
  • Temperature range โˆ’40ยฐC to +80ยฐC
  • Media temperature of -40 to +125ยฐC

Core Sensors CS84 Series

Intrinsically Safe Differential Pressure Transducer
  • Intrinsically safe differential pressure transducer
  • Differential pressure up to 50 PSI
  • Maximum line pressure of 500 PSI
  • Bi-directional pressure ranges
  • Accuracy of โ‰คยฑ0.25% BFSL
  • Stability of โ‰คยฑ0.25% of FS
  • Pressure cycles of 4 million

Merit Sensor LP1400 Series

Uncompensated Output Surface Mount Pressure Sensor
  • Uncompensated surface mountable pressure sensor with J-leads
  • Suitable for ultra low pressure sensing applications
  • Designed for clean, dry air and non corrosive gases
  • Sentiumยฎ technology developed to provide a best-in-class operating temperature range and superior stability

Merit Sensor LP1410 Series

Analog Compensated Output Surface Mount Pressure Sensor
  • Analog compensated output surface mountable pressure sensor with J-leads
  • Suitable for ultra low pressure sensing applications
  • Designed for clean, dry air and non corrosive gases
  • Sentiumยฎ technology developed to provide a best-in-class operating temperature range and superior stability

Merit Sensor LP1420 Series

Digital Compensated Output Surface Mount Pressure Sensor
  • Digital compensated output surface mountable pressure sensor with J-leads
  • Suitable for ultra low pressure sensing applications
  • Designed for clean, dry air and non corrosive gases
  • Clock speed of 1MHz
  • Supply voltage of 5V
  • Sentiumยฎ technology developed to provide a best-in-class operating temperature range and superior stability
