Stellar Technology CNR950 Series

Stellar Technology CNR950 Series
Stellar Technology CNR950 Series
Stellar Technology CNR950 Series
  • Stellar Technology

Product Features

  • Rugged, compact and high capacity canister load cell
  • All welded stainless steel construction
  • In-line loading
  • Bridge resistance of 350Ω or 700Ω (nominal)
  • Standard calibration is 5 points (0, 50%, 100%, 50%, 0) in both tension and compression
  • Temperature effect on zero ±0.005% FSO/°F
  • Temperature effect on span ±0.005% Reading/°F
  • Zero balance ±1% FSO

Applications

  • Medical
  • Oil & Gas
  • Renewables

Description

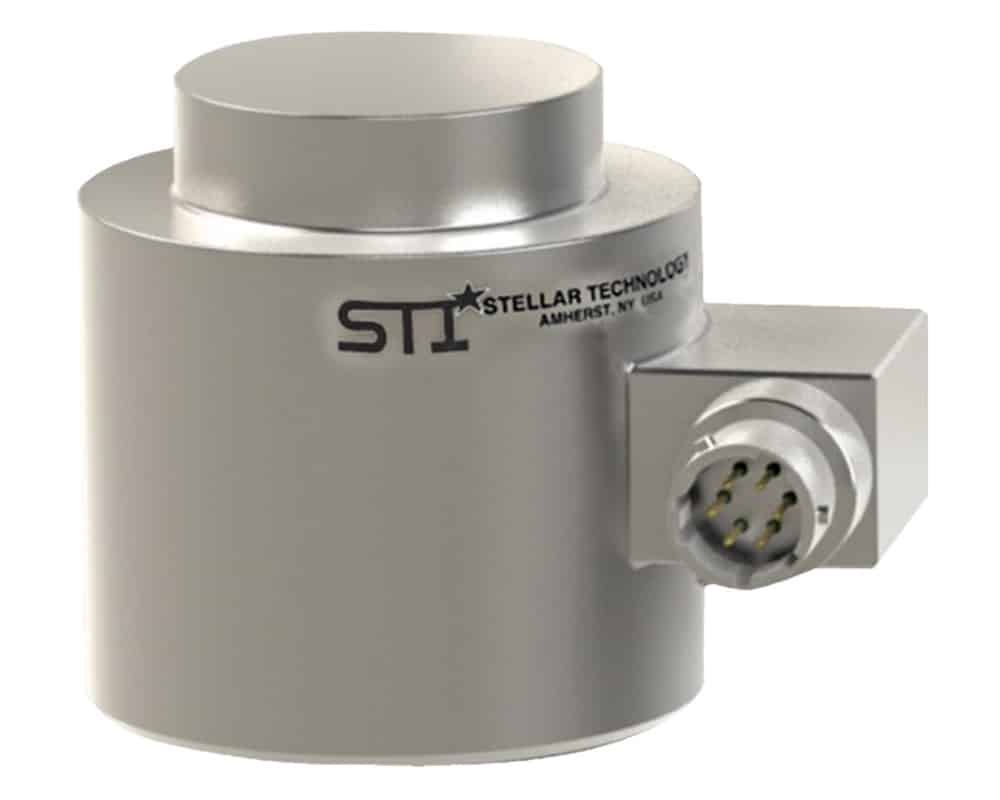

The CNR950 rugged, compact and high capacity canister load cell from Stellar Technology offers maximum load ranges from 2k lbs to 2000k lbs with a high accuracy of ±0.25% FSO, ±0.15% FSO (linearity), ±0.15% FSO (hysteresis) and ±0.05% FSO (repeatability). The CNR950 series from Stellar Technology is designed specifically for force applications and constructed of welded stainless steel for the most demanding application environments. This device also features shock and vibration protection and each unit is shipped with a 5 point calibration.

  • Rugged, compact and high capacity canister load cell
  • Maximum load range from 2k lbs to 2000k lbs
  • Temperature range −65°F (-53.9°C) to +250°F (+121.1°C)
  • All welded, stainless steel construction
  • Accuracy of ±0.25% FSO BFSL, typical ±0.15% FSO (linearity), typical ±0.15% FSO (hysteresis) and ±0.05% FSO (repeatability)
  • Electrical output of 2mV/V nominal
  • Maximum overload without damage 150% FSO
  • Temperature effect on zero of ±0.005% FSO/°F
  • Temperature effect on span of ±0.005% reading/°F
  • Zero balance of ±1% FSO
  • Bridge resistance of 350Ω or 700Ω nominal

The CNR950 series from Stellar Technology have the option of bolt on or welded on stainless steel electrical connectors, also available are hermetically sealed connectors for fully hermetic load cells. Optional features include:

  • Amplified Outputs
  • Threaded mounting features
  • Special calibrations
  • Mutiple bridges
  • Submersible versions to 30,000 ft in seawater
  • Temperature ranges (mV/V unit) −320°F (-195.6°C) to +400°F (+121.1°C)
  • Integral high level output (analog or digital) 50k or greater

Potential markets for the Stellar Technology CNR950 series include:

  • Defence systems
  • Power generation
  • Medical and pharmaceutical
  • Transportation and automotive

Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Accuracy

Options

Series / Model

Temperature Range (°C)

Output

Capacity

, , , , , , , , , ,

Repeatability

Hysteresis

Stellar Technology CNR950 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Stellar Technology CNR950 series rugged,compact and high capacity canister load cell datasheet
