Stellar Technology CNR960 Series

Stellar Technology CNR960 Series
Stellar Technology CNR960 Series
Stellar Technology CNR960 Series
  • Stellar Technology

Product Features

  • High capacity, high accuracy tension and compression canister load cell
  • High immunity to off-axis loading
  • Center thread or circular bolt mount
  • Electroless nickel-plated carbon steel with painted carbon steel cover
  • Standard calibration is 5 points (0, 50%, 100%, 50%, 0) in both tension and compression
  • Temperature effect on zero ±0.003% FSO/°F
  • Temperature effect on span ±0.003% Reading/°F
  • Zero balance ±1% FSO at 70°F

Applications

  • Oil & Gas
  • Renewables

Description

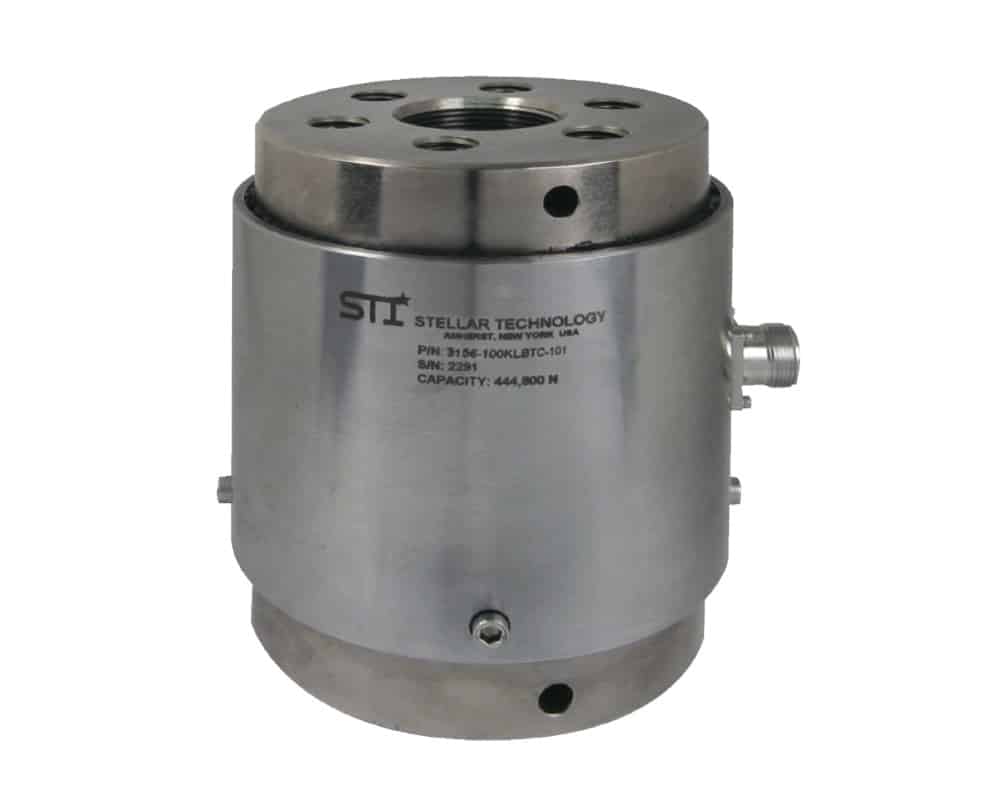

The CNR960 high capacity / high accuracy tension and compression canister load cell from Stellar Technology offers maximum load ranges from 25k lbs to 2000k lbs with a high static accuracy of ±0.2% FSO (linearity), ±0.2% FSO (hysteresis) and ±0.05% FSO (repeatability). The CNR960 series from Stellar Technology is designed specifically for high capacity and high accuracy test and measurement applications with a high fatigue life greater than 100 million fully reversed cycles at FSO and high immunity to off-axis loading.
This device is uniquely engineered to have a minimum deflection resulting in fast frequency response and constructed of electroless nickel plated carbon steel.

  • High capacity / high accuracy tension and compression canister load cell
  • Maximum load range from 25k lbs to 2000k lbs
  • Temperature range −65°F (-53.9°C) to +250°F (+121.1°C)

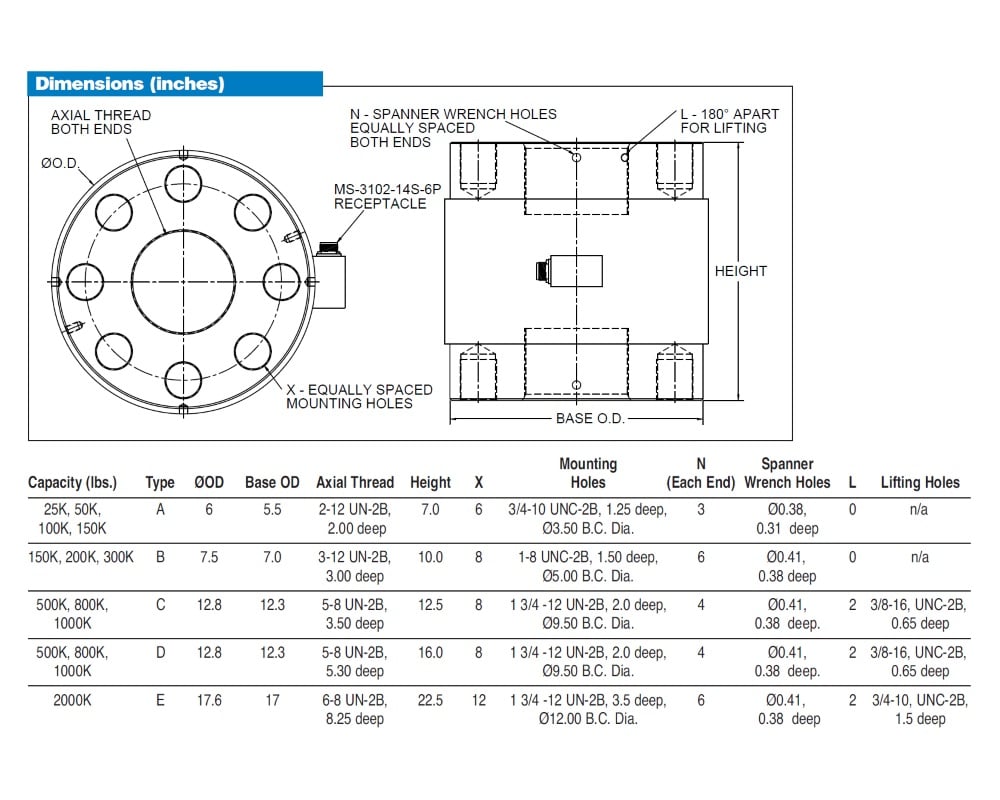

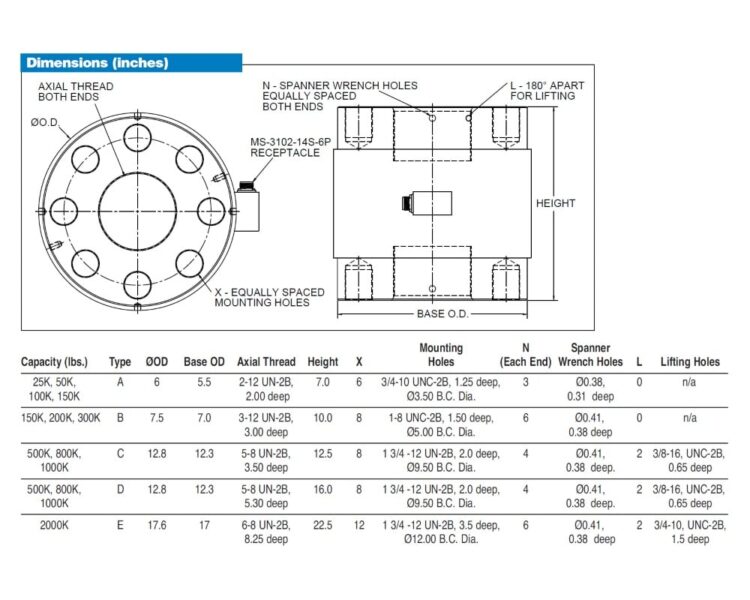

  • Centre thread or circular bolt mount
  • Static accuracy of ±0.2% FSO (linearity), ±0.2% FSO (hysteresis) and ±0.05% FSO (repeatability)
  • Electrical output of 2mV/V
  • High fatigue life greater than 100 million fully reversed cycles at FSO
  • Temperature effect on zero of ±0.003% FSO/°F
  • Temperature effect on span of ±0.003% reading/°F
  • Zero balance of ±1% FSO at 70°F
  • High immunity to off-axis loading



Optional features for the Stellar Technology CNR960 series include:

  • Dual Bridge configurations
  • Customer specified electrical termination
  • Special calibrations
  • Metric threads
  • Expanded temperature compensation ranges

Potential markets for the Stellar Technology CNR960 series include:

  • Alternative energy
  • Industrial automation
  • Defense systems
  • Oil and gas



Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Accuracy

Options

Series / Model

Temperature Range (°C)

Output

Capacity

, , , , , , , , , ,

Hysteresis

Repeatability

Stellar Technology CNR960 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Stellar Technology CNR960 series high capacity/high accuracy tension and compression canister load cell datasheet
