| Weight | 0.02500 kg |
|---|---|
| Dimensions | 0.80 x 2.50 x 2.50mm |
| Maximum Resistance | 7kΩ |
| Operating Frequency | 1MHz |
| Saturation Field | 180 Oe |
| Series / Model | |
| Supply Voltage | 30V |
| Temperature Range | -50 to +150°C |
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.
The NVE ABL004-10E analog gear tooth sensors are versatile, wide airgap typically used with ferromagnetic gears and bias magnets. The sensor elements are spaced at 1mm for use with a recommended gear pitch of between 2.5mm and 6mm and an operating frequency of 1MHz. The ABL004 series from NVE have differential sensor elements that provide sinusoidal outputs and is a single bridge sensor producing a sinusoidal wave form at the output.
The NVE ABL004-10E GMR analog gear tooth sensor covers the following applications:

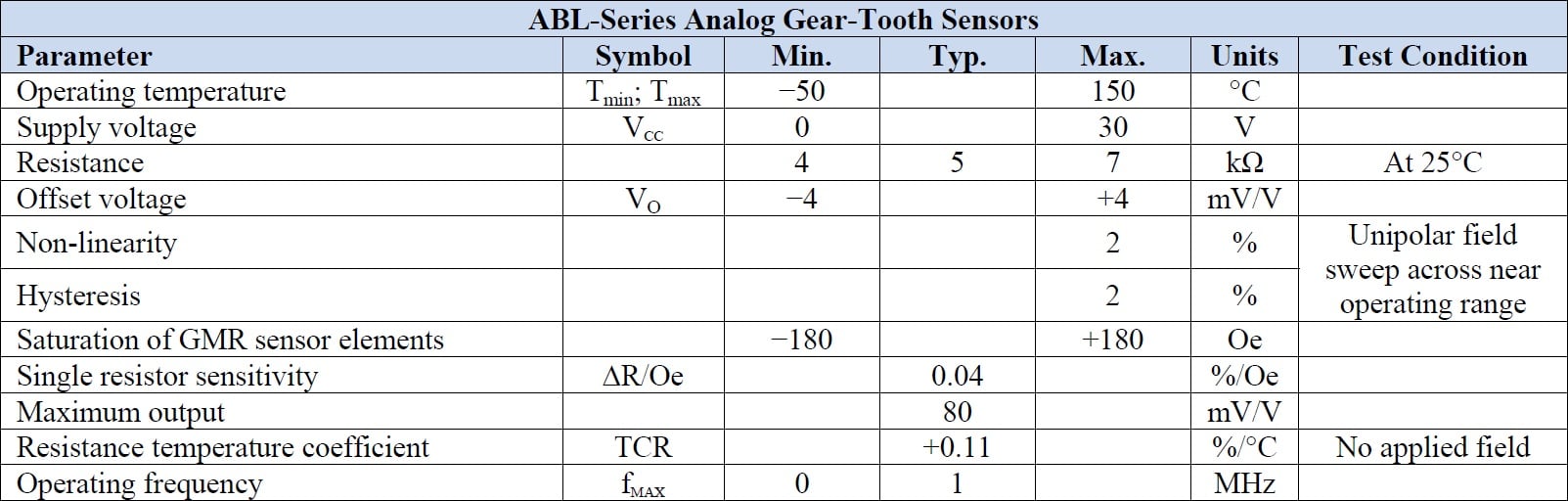

The below table gives the full specifications of the NVE ABL series including the ABL004-10E
