NVE SM124-10E

  • NVE

Product Features

  • Smart GMR Magnetometer
  • Detecting magnets over 50mm away with superior in-plane sensitivity
  • 8 bit / 1% output resolution
  • Sample rate of 10kSps
  • Internal temperature compensating
  • Range of programmable features
  • Slick, single-byte communication interface

Applications

  • Compliant

Description

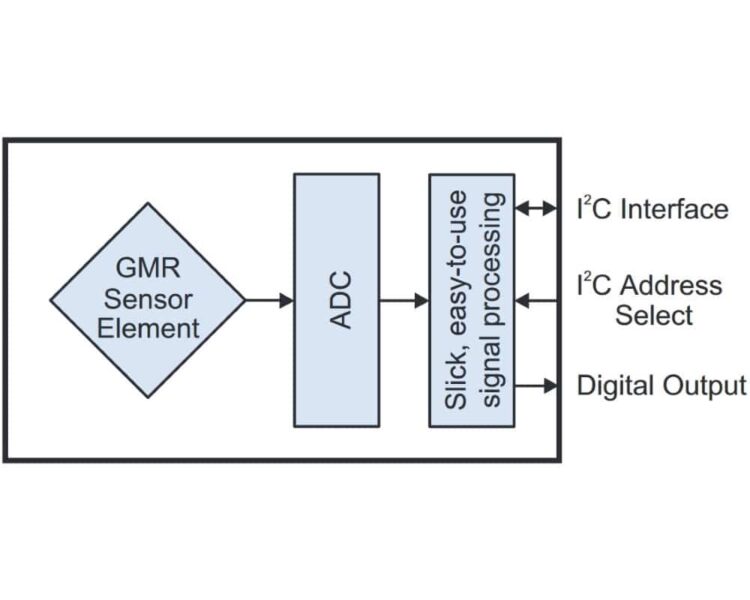

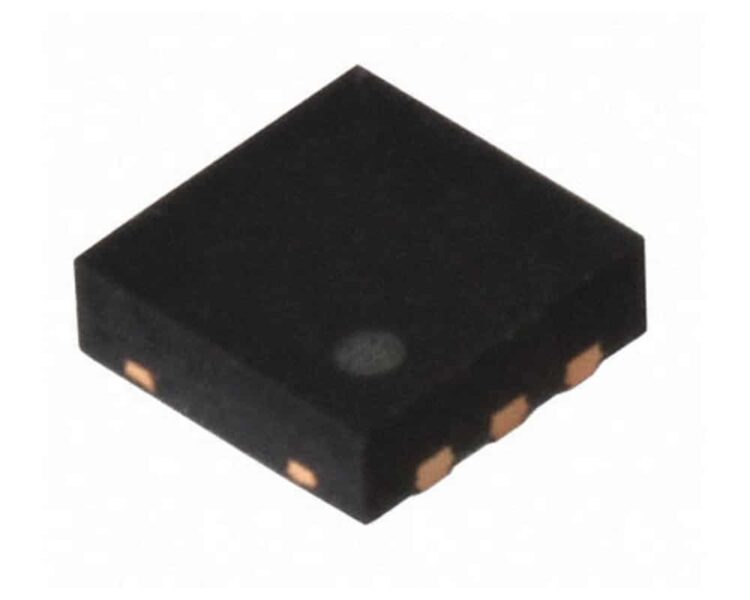

The SM124-10E smart magnetometer from NVE is designed to provide precise magnetic field measurements, detecting magnets even over 50mm away. It utilises Giant Magnetoresonance (GMR) technology, which is superior compared to the traditional Hall effect devices in terms of sensitivity (0-10 Oe / 0-1 mT linear range), precision (5% accuracy), speed (1kSps sample rate) and noise levels. This magnetometer is a digital device with minimal firmware requirements – it features programmable thresholds, offset and other values and magnetic field and calibration data from I2C interface with the calibration coefficients stored in a non-volatile memory. The SM124-10E comes factory calibrated to high accuracy and is available in ultraminiature TDFN6 package (2.5×2.5mm footprint).

  • Smart GMR Magnetometer
  • High sensitivity of 0-10 Oe / 0-1 mT linear range
  • 8bit / 1% output resolution
  • Accuracy of 5% of the full scale
  • 10kSps sample rate for fast response
  • Temperature range of −40°C to +125°C
  • 2.2V to 3.6V supply
  • 3.3V or 5V compatible I2C interface
  • Programmable features include offset and gain correction, I2C address and thresholds
  • Easy to use digital signal processing
  • Ultraminiature TDFN6 package

Typical applications for the SM124-10E series include:

  • Proximity sensing
  • Current sensing
  • Security and intrusion detection
  • Automotive applications
  • Cylinder position sensing

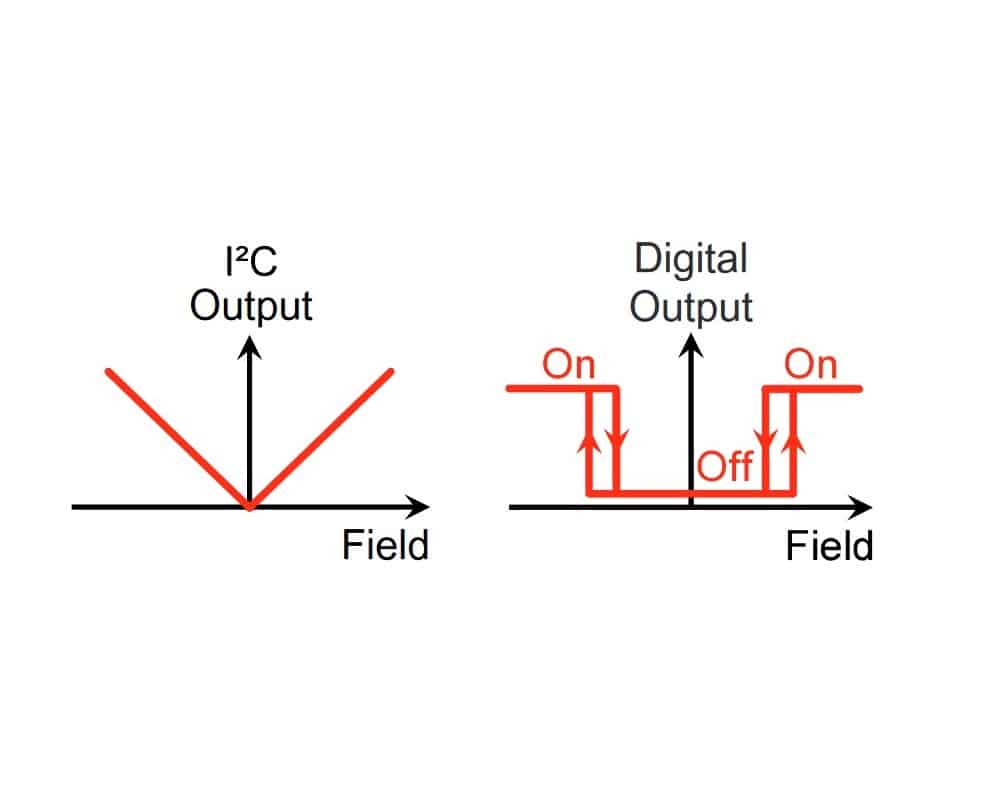

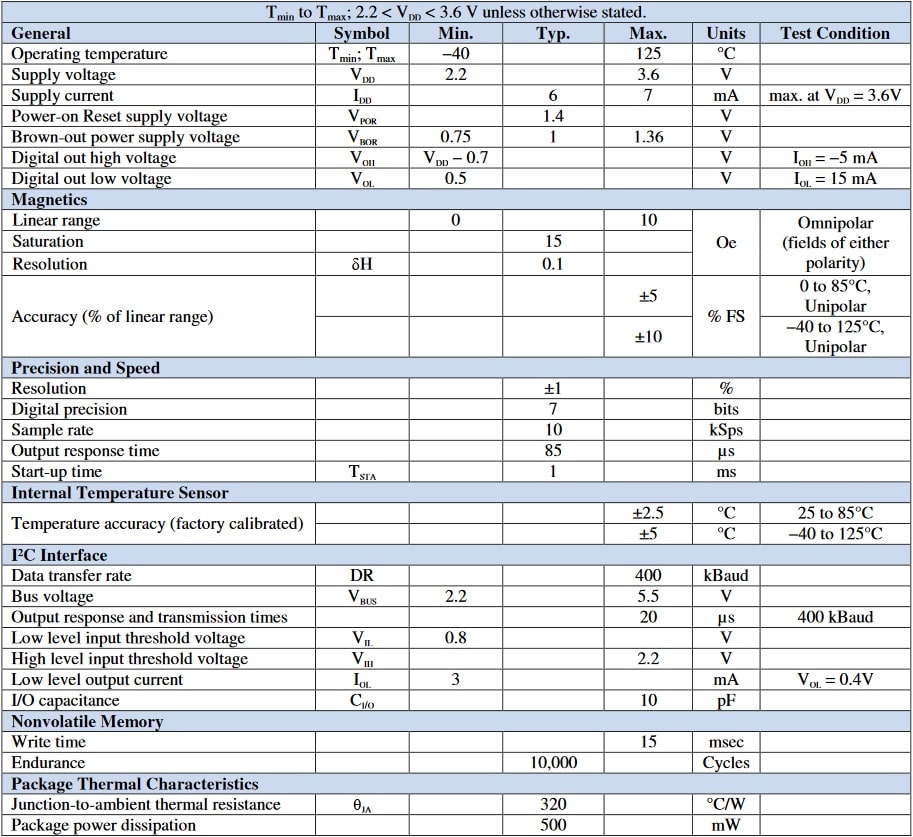

The below table gives the full specifications of the NVE SM124-10E smart GMR magnetometer:

NVE SM124-10E Specifications

Specifications

Weight 0.05500 kg

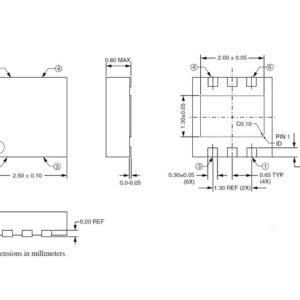

Dimensions 2.50 × 2.50 × 0.80 mm
Accuracy

Additional Features

Smart GMR Magnetometer Detecting magnets over 50mm away with superior in-plane sensitivity 8 bit / 1% output resolution Sample rate of 10kSps Internal temperature compensating Range of pro

Series / Model

Temperature Range (°C)

Supply Voltage

Package / Size

RoHS Compliant Product – NVE

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

NVE SM124-10E Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
NVE SM124-10E Smart GMR Magnetometer datasheet
Package, tape-and-reel and pad layout specifications
Power supply bypass capacitor selection
Pb free and S-Pb solder profiles
Diametrically-Magnetised Magnets – Perfect for magnetic angle & rotation sensing
Glossary terms







VIDEOS
NVE Corporation – Leaders in practical spintronics

First look at the simple, slick SM124-10E Smart GMR Magnetometer with sophisticated digital signal processing

NVE Corporation – Leaders in practical spintronics

Useful overview of the Spintronic tunneling technology

VIDEOS
NVE Corporation – Leaders in practical spintronics

First look at the simple, slick SM124-10E Smart GMR Magnetometer with sophisticated digital signal processing

NVE Corporation – Leaders in practical spintronics

Useful overview of the Spintronic tunneling technology
