NVE AFL002-10E

  • NVE

Product Features

  • GMR low power switch sensor
  • Supply current 35μA (typ.)
  • Digital output
  • Temperature and voltage stability
  • Omnipolar response
  • Operate point 28Oe (typ.)
  • Release differential range of 3Oe to 10Oe
  • TNFN6 Package


  • Motion Control
  • Compliant


The AFL002-10E low power switch sensor from NVE integrates GMR sensor elements with digital onboard signal processing electronics. The switch is designed for use in low power and battery applications, and features supply voltages down to 0.9 Volts and continuous operation at currents between 20μA to 55μA. The AFL series from NVE magnetic sensors, have extremely precise magnetic operate point of 28Oe (typ.) and release differential of between 3Oe and 10Oe.

  • GMR low power switch sensor
  • Precision magnetic operate point of 28Oe (typ.)
  • Supply voltage between 0.9V and 2V
  • Supply current between 20μA and 55μA
  • Digital output
  • Release differential range from 3Oe to 10Oe
  • Omnipolar response
  • Operating Temperature range from -20°C to +85°C
  • Frequency response of 100kHz
  • TDFN6 Package

The NVE AFL000-10E GMR low power switch sensor covers the following applications:

  • Motion, speed, and position control
  • Proximity sensing
  • Portable instruments
  • Utility meters
  • Noncontact over current protection
  • Battery powered applications

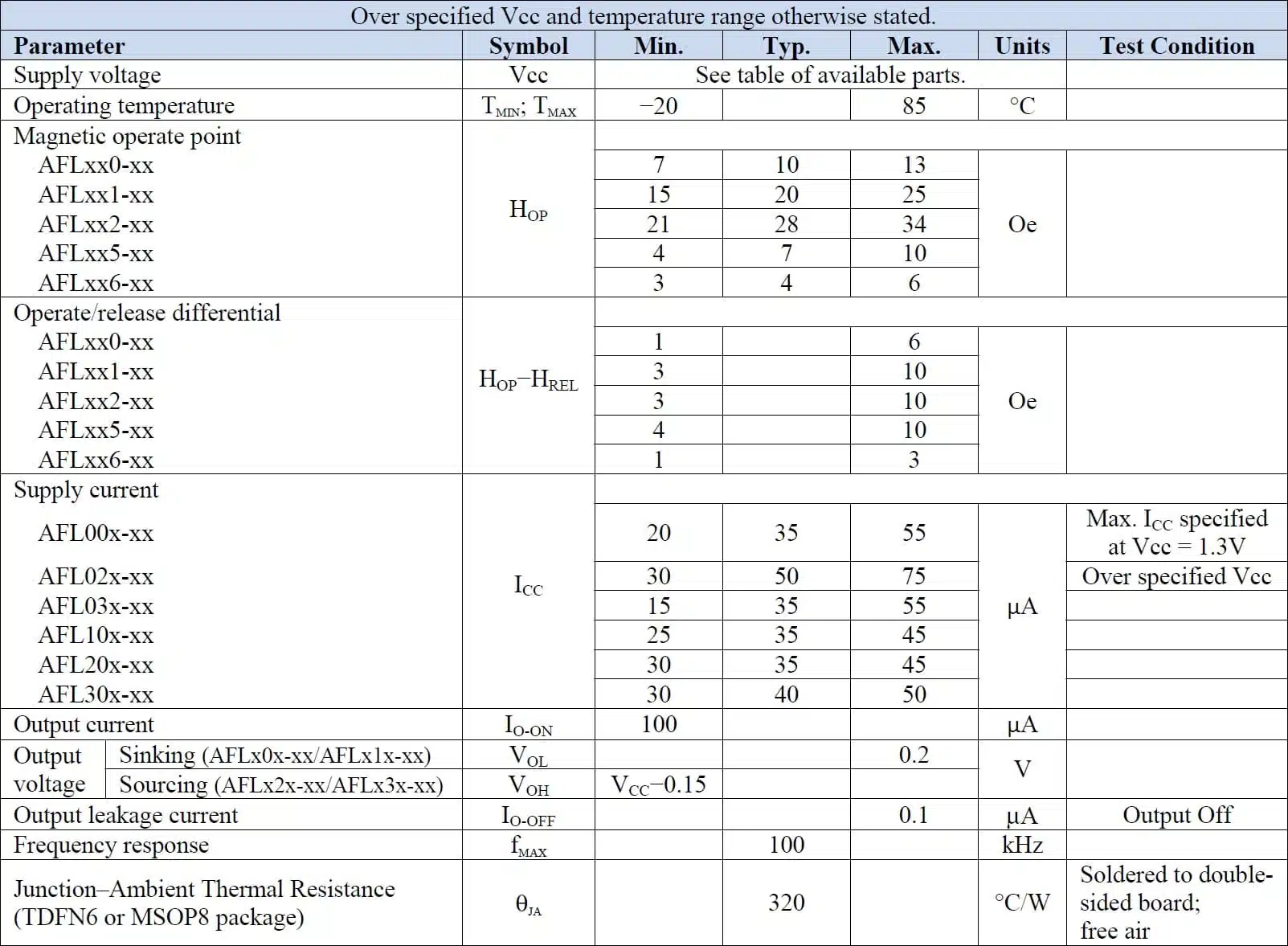

The below table gives the full specifications of the NVE AFL series including the AFL002-10E

NVE AFL002-10E Specifications


Weight 0.02500 kg
Dimensions 0.80 x 2.50 x 2.50mm
Temperature Range (°C)

Series / Model



Magnetic Orientation

Frequency Response

Supply Voltage

NVE AFL Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:



NVE AFL low voltage, low power digital magnetic sensor series datasheet
Current measurement using GMR sensors application note
2-wire sensor interfaces application note
Further application notes for GMR sensors
Package, tape-and-reel and pad layout specifications
NVE RoHS and enviromental compliance certificate
Case Studies
Analysis of a GMR-based Plethysmograph transducer and its utility for real-time Blood pressure measurement
Dual-stage nanopositioning for high speed scanning probe microscopy
Extending the GMR current measurement range with a counteracting magnetic field
A current sensor based on the GMR effect for design and potential smart grid applications
Flexible GMR sensor array for magnetic flux leakage testing of steel track ropes
Wireless wearable controller for upper limb neuroprosthesis
Using GMR sensors with MSP430 scan interface
Safety device uses GMR sensor
Nondestructive inspection for diffusion bonded components
GMR sensors manage batteries
